Efficient Production Stainless Steel Screen Printing 400 Fine Mesh for MLCC
Efficient Production Stainless Steel Screen Printing 400 Fine Mesh for MLCC

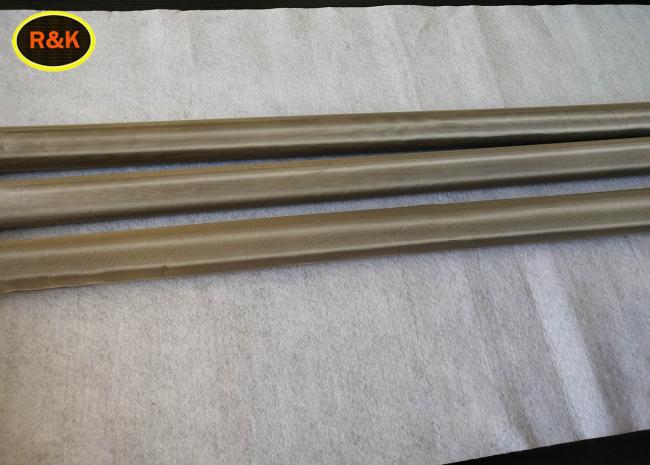

Description of the stainless steel screen printing mesh:
In the past few years, the demand for printing mesh has increased dramatically.
Thinner wire and structural openings of less than 50 microns are increasingly required in production.
The reason why we continuously improve the quality of our products is to meet the requirements of our customers.
Therefore, in the process, our printing mesh has a long service life, which not only reduces manual cleaning, but also achieves efficient production.
Features of stainless steel wire mesh:
- Higher screen tension
- Minimal tension loss
- Modify the effects of paste and color(also has a high viscosity paste)
- Reduce the possibility of pasting
- Optimized dimensional stability
- Longer screen life
Application of stainless steel wire mesh:
Fine screen printing mesh are widely used in a variety of applications, such as the use of technical screen printing.They, for example, thick layer technology, LTCC, MLCC and so on.
Car printing Solar printing
Multi-layer ceramic capacitors Concentrator printing
Glass Printing Chip and MEMS Printing
Specification of the stainless steel screen printing mesh:
| Specification | Mesh/ inch |
Wire Dia (μm) |
Open area Ratio(%) |
Apereture (μm) |
Apereture (μm) |
Calendered Thickness (μm) |
Theoretical lnk(cm^/m^) |
| 40×40×160 | 40 | 160 | 56 | 475 | 300-320 | As order | 179.1 |
| 60×60×120 | 60 | 120 | 51.3 | 303 | 230-245 | As order | 123.2 |
| 80×80×120 | 80 | 120 | 39 | 198 | 235-245 | As order | 92.9 |
| 80×80×90 | 80 | 90 | 52 | 228 | 175-180 | As order | 103 |
| 80×8×50 | 80 | 50 | 71 | 268 | 95-100 | As order | 78 |
| 100×100×100 | 100 | 100 | 36.8 | 154 | 195-205 | As order | 77.2 |
| 120×120×80 | 120 | 80 | 39 | 132 | 155-165 | As order | 65.8 |
| 150×150×60 | 150 | 60 | 41.7 | 109 | 115-124 | As order | 50 |
| 165×165×35 | 165 | 35 | 60 | 119 | 70-75 | As order | 48 |
| 165×165×45 | 165 | 45 | 50.1 | 109 | 88-93 | As order | 45.1 |
| 165×165×50 | 165 | 50 | 45.6 | 104 | 97-105 | As order | 45.6 |
| 180×180×45 | 180 | 45 | 46.4 | 96 | 88-93 | As order | 41.5 |
| 180×180×50 | 180 | 50 | 42 | 91 | 98-104 | As order | 41.7 |
| 200×200×40 | 200 | 40 | 46.9 | 87 | 82-84 | As order | 43 |
| 200×200×50 | 200 | 50 | 37 | 77 | 98-103 | As order | 42 |
| 230×230×35 | 230 | 35 | 46.7 | 75 | 72-76 | 50-67 | 37 |
| 250×250×40 | 250 | 40 | 36.8 | 62 | 82-86 | 50-80 | 34 |
| 250×250×30 | 250 | 30 | 49.7 | 72 | 64-68 | 40-58 | 30 |
| 250×250×35 | 250 | 35 | 43 | 67 | 76-78 | 57-70 | 32 |
| 270×270×35 | 270 | 35 | 39.4 | 59 | 76-80 | 58-70 | 30 |
| 300×300×30 | 300 | 30 | 41.7 | 55 | 66-68 | 4-59 | 28 |
| 325×325×30 | 325 | 30 | 38 | 48 | 66-68 | 45-60 | 24 |
| 325×325×28 | 325 | 28 | 41.2 | 50 | 63-64 | 40-56 | 26.4 |
| 325×325×23 | 325 | 23 | 49.8 | 55 | 49-53 | 37-41 | 25.4 |
| 350×350×35 | 350 | 25 | 43 | 48 | 52-54 | 41-50 | 18.7 |
| 400×400×23 | 400 | 23 | 40.7 | 41 | 50-54 | 35-48 | 19 |
| 400×400×18 | 400 | 18 | 51.3 | 46 | 36-40 | 28-30 | 20 |
| 500×500×18 | 500 | 18 | 41.7 | 33 | 36-40 | 23-29 | 15.3 |
