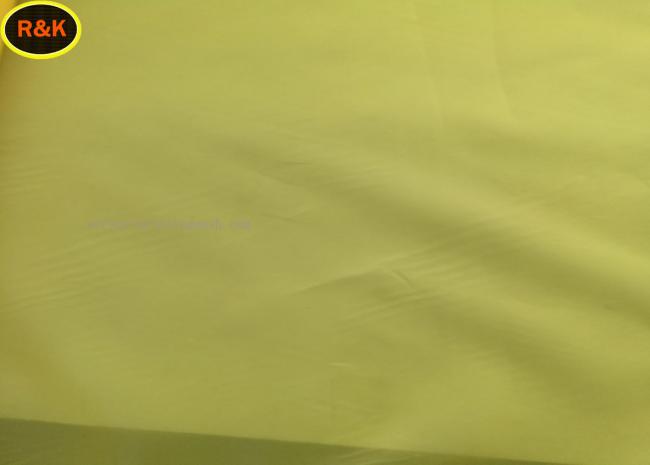

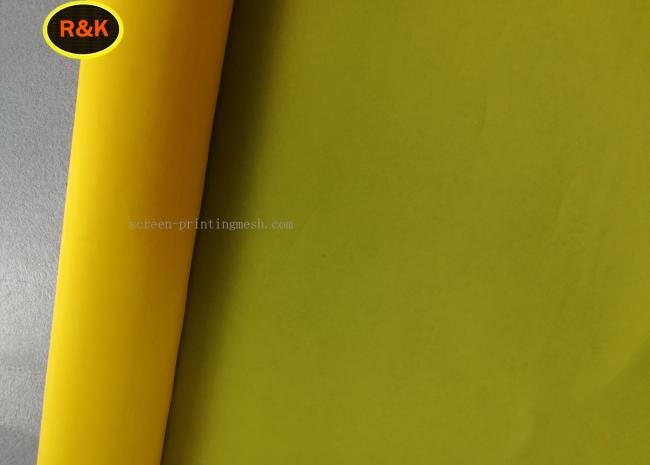

100% Polyester Yellow Screen Printing Mesh Roll Heat Resistance For Cermics Printing
Price:
negotiation
MOQ:
50 Meters
Delivery Time:
5-15 days after you payment
Brand:
R&K
Product Description
100% Polyester Yellow Color Heat Resistance Silk Screen Printing Mesh For Cermics Printing
Description of polyester silk screen printing mesh:
Screen printing is used in a wide range of applications, decorative and industrial. In addition to the desired optical appearance, effect pigments for screen printing are subject to various requirements such as mechanical, washing or temperature resistance.
Specification
| Mesh Count Diameter (Mesh/inch μm) |
Mesh Count (Mesh /Inch) |
Weave | Aperture (μm) |
Thread Diameter (μm) |
Opening (%) |
Thickness(μm) | Thickness Tollerance (+/- μm) |
Theoretical lnk(cm3/m2) |
Weight (g/m2) |
| 6-400 | 15 | 1:1 | 1270 | 400 | 64 | 720 | T | ||
| 7-350 | 18 | 1:1 | 1078 | 350 | 64 | 640 | |||
| 8-300 | 20 | 1:1 | 950 | 300 | 58 | 550 | |||
| 10-250 | 25 | 1:1 | 750 | 250 | 56 | 620 | |||
| 12-250 | 30 | 1:1 | 583 | 250 | 49 | 450 | |||
| 12-150 | 30 | 1:1 | 683 | 150 | 67 | 300 | |||
| 13-150PW(SL) | 33 | 1:1 | 619 | 150 | 64 | 300 | 14 | 128 | 60 |
| 16-200 | 40 | 1:1 | 425 | 200 | 46 | 400 | |||
| 20-80 | 50 | 1:1 | 420 | 80 | 71 | 120 | |||
| 20-150 | 50 | 1:1 | 350 | 150 | 49 | 260 | |||
| 21-80pw(S) | 55 | 1:1 | 296 | 80 | 69 | 120 | 9 | 79 | 35 |
| 21-150PW(SL) | 55 | 1:1 | 326 | 150 | 46 | 260 | 14 | 118 | 121 |
| 24-100PW(T) | 60 | 1:1 | 316 | 100 | 57 | 136 | 11 | 65 | 81 |
| 28-140PW(SL) | 70 | 1:1 | 217 | 140 | 40 | 195 | 13 | 76 | 125 |
| 32-55PW(S) | 81 | 1:1 | 257 | 55 | 67 | 103 | 6 | 67 | 28 |
| 32-64PW(S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 |
| 32-100PW(T) | 81 | 1:1 | 212 | 100 | 45 | 165 | 8 | 73 | 75 |
| 36-90PW(T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 |
| 39-55PW(S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 |
| 40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 |
| 43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 |
| 47-45PW(S) | 120 | 1:1 | 166 | 45*2 | 61 | 80 | 6 | 42 | 40 |
| 47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 |
| 48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 |
| 53-45PW(S) | 135 | 1:1 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 |
| 53-55PW(S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 |
| 54-64PW(T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 |
| 54-70(PW)HD | 137 | 1:1 | 109 | 70 | 35 | 116 | 6 | 40 | 62 |
| 61-64PW(T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 | 58 |
| 64-55PW(S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 | 48 |
| 64-64PW(T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 | 61 |
| 68-55PW(S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 | 48 |
| 68-64PW(T) | 175 | 1:1 | 78 | 64 | 28 | 105 | 5 | 30 | 65 |
| 72-48PW(S) | 182 | 1:1 | 90 | 48 | 36 | 78 | 5 | 33 | 39 |
| 72-55PW(T) | 182 | 1:1 | 85 | 55 | 30 | 90 | 5 | 27 | 51 |
| 77-48PW(S) | 195 | 1:1 | 77 | 48 | 35 | 80 | 4 | 28 | 42 |
| 77-55PW(T) | 195 | 1:1 | 67 | 55 | 27 | 88 | 4 | 24 | 55 |
| 80-48PW(T) | 200 | 1:1 | 72 | 48 | 33 | 74 | 4 | 25 | 56 |
| 90-48PW(T) | 230 | 1:1 | 56 | 48 | 25 | 78 | 4 | 19 | 50 |
| 100-40PW(T) | 255 | 1:1 | 58 | 40 | 33 | 63 | 3 | 21 | 37 |
| 110-40PW(HD) | 280 | 1:1 | 48 | 40 | 27 | 64 | 3 | 17 | 40 |
| 120-31PW(S) | 305 | 1:1 | 49 | 31 | 35 | 49 | 3 | 17 | 26 |
| 120-34PW(T) | 305 | 1:1 | 45 | 34 | 30 | 55 | 3 | 16 | 35 |
| 120-40PW(HD) | 305 | 1:1 | 37 | 40 | 20 | 63 | 3 | 13 | 44 |
| 130-34PW(T) | 330 | 1:1 | 40 | 34 | 27 | 55 | 3 | 15 | 37 |
| 140-31PW(S) | 355 | 1:1 | 36 | 31 | 26 | 48 | 2 | 12 | 30 |
| 140-34PW(T) | 355 | 1:1 | 31 | 34 | 20 | 53 | 3 | 10 | 39 |
| 140-34TW(T) | 355 | 1:1 | 33 | 34 | 21 | 56 | 3 | 12 | 41 |
| 150-31PW(S) | 380 | 1:1 | 32 | 31 | 23 | 49 | 3 | 11 | 32 |
| 150-34PW(T) | 380 | 1:1 | 23 | 34 | 13 | 55 | 3 | 6.5 | 42 |
| 165-34PW(S) | 420 | 1:1 | 23 | 31 | 15 | 48 | 2 | 7 | 36 |
Applications of polyester silk screen printing mesh:
1: Auto glass printing
Black mask on the front, side and back. Windows, heating mode, antenna (radio, GPS) and sun roof.
2: Glass container printing.
Perfume, cosmetics and beverage bottles are decorated by screen printing
3: Print a grid for ceramics
Polyester screen printing can be used to print challenging, intense colors and gorgeous decorations on ceramics, so it is widely used in the decoration of tableware, ceramic tiles, pottery or fine porcelain.
4: Printing net for textiles
Polyester screens transfer thick ink deposits and create special effects, making them the best process for printing high quality commercial apparel.
5: Print a CD/DVD grid
Polyester screen printing provides ink transparency, ink gloss, and a variety of decorative pattern options. The most important is the fast production cycle and the performance of the disc is not affected. So screen printing is an optimized printing process for CD and DVD decoration.
6: Printing glass mesh
Direct screen printing on articlis fopharmacy glassware, such as appliance name, measurement mark.
Printing glass decorations on the home
Microwave oven doors and ceramic hot plates / stoves and other equipment.
Black mask on the front, side and back. Windows, heating mode, antenna (radio, GPS) and sun roof.
2: Glass container printing.
Perfume, cosmetics and beverage bottles are decorated by screen printing
3: Print a grid for ceramics
Polyester screen printing can be used to print challenging, intense colors and gorgeous decorations on ceramics, so it is widely used in the decoration of tableware, ceramic tiles, pottery or fine porcelain.
4: Printing net for textiles
Polyester screens transfer thick ink deposits and create special effects, making them the best process for printing high quality commercial apparel.
5: Print a CD/DVD grid
Polyester screen printing provides ink transparency, ink gloss, and a variety of decorative pattern options. The most important is the fast production cycle and the performance of the disc is not affected. So screen printing is an optimized printing process for CD and DVD decoration.
6: Printing glass mesh
Direct screen printing on articlis fopharmacy glassware, such as appliance name, measurement mark.
Printing glass decorations on the home
Microwave oven doors and ceramic hot plates / stoves and other equipment.
Advantabges
1: Acld and alkali resistance
2: Good permeability
3: Stable tensile
4: Long work time
5: Low elongation
6: Heat resistance
7: High temperature resistance
8: High corrosion resistance
