Extremely High Stretching Reserves Stainless Steel Screen Printing Mesh 325 Inch
Extremely High Stretching Reserves Stainless Steel Screen Printing Mesh 325 Inch

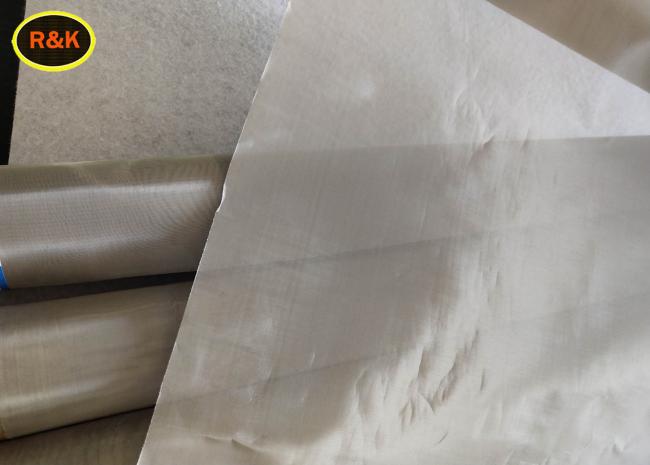

Description of the stainless steel screen printing mesh:
Reking Screen Printing precision wire mesh is produced in China and has passed the strict ISO 9001 international certification.stainless steel wire cloth is woven into ultra tight tolerances for the most demanding screen printing applications. Whether it's electronics, solar, graphics or ceramic applications, the Reking mesh line is not worse than the world's highest quality product.
Features of stainless steel wire mesh:
• Thin to ultra-thin lines with tight diameter tolerances and extremely high tensile strength
• No creep, no electrostatic charge, no moisture and solvent absorption
• High precision by weaving
• Volume, tension or shrinkage does not change compared to plastic sheets
• Large screen area
• Low distortion, minimum distance between screen and substrate • Media is easily released from the screen for easy cleaning
• Excellent registration accuracy, no elongation by scraper movement
• Long service life, longer printing cycle and longer service life
• Excellent dimensional stability even at high temperatures
Application of stainless steel wire mesh:
Fine screen printing mesh are widely used in a variety of applications, such as the use of technical screen printing.They, for example, thick layer technology, LTCC, MLCC and so on.
Car printing Solar printing
Multi-layer ceramic capacitors Concentrator printing
Glass Printing Chip and MEMS Printing
Specification of the stainless steel screen printing mesh:
| Specification | Mesh/ inch |
Wire Dia (μm) |
Open area Ratio(%) |
Apereture (μm) |
Apereture (μm) |
Calendered Thickness (μm) |
Theoretical lnk(cm^/m^) |
| 40×40×160 | 40 | 160 | 56 | 475 | 300-320 | As order | 179.1 |
| 60×60×120 | 60 | 120 | 51.3 | 303 | 230-245 | As order | 123.2 |
| 80×80×120 | 80 | 120 | 39 | 198 | 235-245 | As order | 92.9 |
| 80×80×90 | 80 | 90 | 52 | 228 | 175-180 | As order | 103 |
| 80×8×50 | 80 | 50 | 71 | 268 | 95-100 | As order | 78 |
| 100×100×100 | 100 | 100 | 36.8 | 154 | 195-205 | As order | 77.2 |
| 120×120×80 | 120 | 80 | 39 | 132 | 155-165 | As order | 65.8 |
| 150×150×60 | 150 | 60 | 41.7 | 109 | 115-124 | As order | 50 |
| 165×165×35 | 165 | 35 | 60 | 119 | 70-75 | As order | 48 |
| 165×165×45 | 165 | 45 | 50.1 | 109 | 88-93 | As order | 45.1 |
| 165×165×50 | 165 | 50 | 45.6 | 104 | 97-105 | As order | 45.6 |
| 180×180×45 | 180 | 45 | 46.4 | 96 | 88-93 | As order | 41.5 |
| 180×180×50 | 180 | 50 | 42 | 91 | 98-104 | As order | 41.7 |
| 200×200×40 | 200 | 40 | 46.9 | 87 | 82-84 | As order | 43 |
| 200×200×50 | 200 | 50 | 37 | 77 | 98-103 | As order | 42 |
| 230×230×35 | 230 | 35 | 46.7 | 75 | 72-76 | 50-67 | 37 |
| 250×250×40 | 250 | 40 | 36.8 | 62 | 82-86 | 50-80 | 34 |
| 250×250×30 | 250 | 30 | 49.7 | 72 | 64-68 | 40-58 | 30 |
| 250×250×35 | 250 | 35 | 43 | 67 | 76-78 | 57-70 | 32 |
| 270×270×35 | 270 | 35 | 39.4 | 59 | 76-80 | 58-70 | 30 |
| 300×300×30 | 300 | 30 | 41.7 | 55 | 66-68 | 4-59 | 28 |
| 325×325×30 | 325 | 30 | 38 | 48 | 66-68 | 45-60 | 24 |
| 325×325×28 | 325 | 28 | 41.2 | 50 | 63-64 | 40-56 | 26.4 |
| 325×325×23 | 325 | 23 | 49.8 | 55 | 49-53 | 37-41 | 25.4 |
| 350×350×35 | 350 | 25 | 43 | 48 | 52-54 | 41-50 | 18.7 |
| 400×400×23 | 400 | 23 | 40.7 | 41 | 50-54 | 35-48 | 19 |
| 400×400×18 | 400 | 18 | 51.3 | 46 | 36-40 | 28-30 | 20 |
| 500×500×18 | 500 | 18 | 41.7 | 33 | 36-40 | 23-29 | 15.3 |
