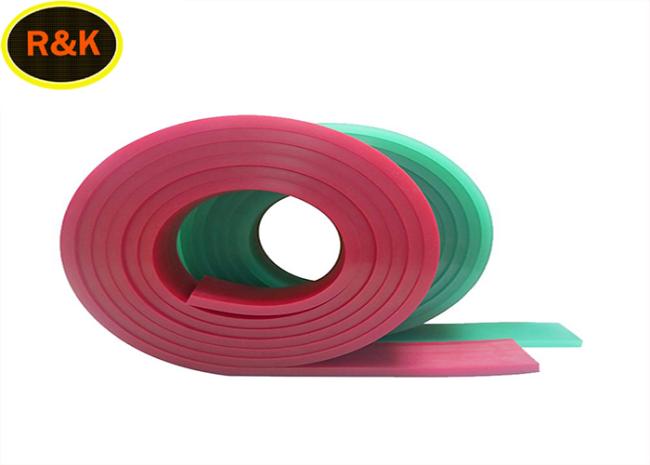

Green Transparent Screen Printing Squeegee 40mm*9mm*4m Length Customized Size
40mm * 9mm * 4m Length Green Transparent Screen Printing Squeegee Customized Size
Product Introduction
1. High-quality, made in China: Abrasion resistance and Solvent resistance. Mainly apply to: Textiles, decorative printing, ceramics, flower paper, low-grade glass, leather, hand, machine with solvent-based
Inks, sophisticated print design, high-pressure used in any mesh and ink.
2. This series can be single-layer and three-tier products ( three-tieredis green, white and green).
3. This product is for single-layer conventional hardness 60-85 A, three degrees of hardness can -80/90/80A degrees 60/90/60A.
4. Conventional color is transparent brown.
5. The Size selection 25*5, 30*7, 35*7, 50*9 and so on. 1000*30*7, 1000*35*7, 1000*50*9 used in manual printing.
6. Length3.7m and 4m
Product Specification
| Screen Printing squeegee specification | |||
| Color | Hardness | Shore A | Suggestion |
| Red or natural | Soft | 50-65 | Suitable for the low mesh screen cloth ,low viscosity ink,irregular surface of the printing. |
| Green | Medium | 70-75 | Suitable for various of mesh screen cloth, various of ink and various of the prints. |
| Blue | Hard | 80-85 | Suitable for high pressure, high viscosity ink,the fine print of the printing |
| White | Super hard | 90-95 | Suitable for high pressure, high viscosity ink,the fine print of the printing |
| Green/White/ Green |
Triple medium |
75/90/75 | Suitable for various of mesh screen cloth,various of ink and various of the prints. |
| Red/White/Red | Soft medium |
65/90/65 | Suitable for the low mesh screen cloth ,low viscosity ink,irregular surface of the printing. |
Product Features
1. High Abrasion
2. Super Solvent
3. High Tolerance
4. High Cut Resistance
5. Cut Customization
6. Size Customization
Product Application:
Our screen printing squeegee is widely used in the below industry.
1. Textile screen printing machine
2. Ceramic and sanitaryware industry machine
3. Electronic machine,
4. Window film industry, scraper film
5. scraper automobile, car, truck.
6. UV ink industry
