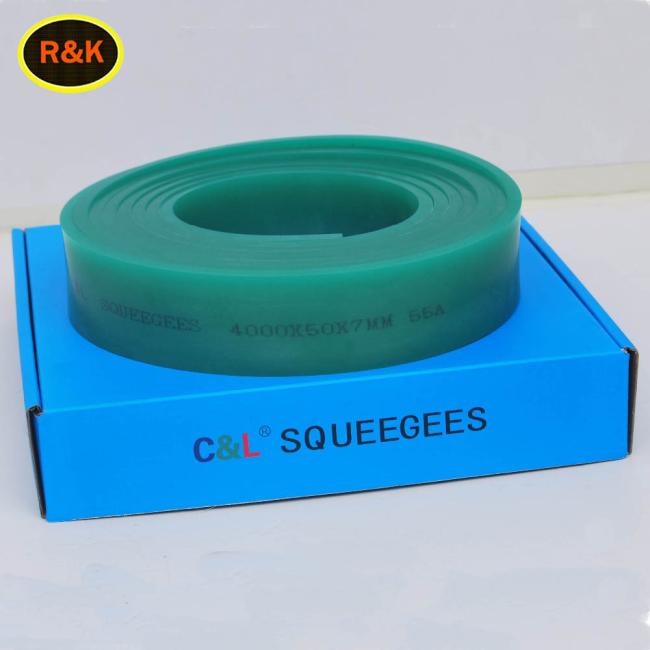

9mm Thickness Squeegee Rubber Screen Printing Materials 3.66m / 4m Roll
9mm Thickness Squeegee Rubber 3.66m / 4m Roll For Silk Screen Printing
Product Introduction
The tip of the squeegee blade comes in several shapes: 1. Square – or straight-edge – squeegee blades are cut flat across the bottom. These are the most common types of squeegee blades and are used for more general screen printing jobs. 2. Round – or ball-nose – squeegees are used when printers need a heavier deposit of ink, such as when printing on heavier substrates or when printing with specialty inks. 3. Beveled squeegees feature an angle on one or both sides of the blade.
Product Specification
| Screen Printing squeegee specification | |||
| Color | Hardness | Shore A | Suggestion |
| Red or natural | Soft | 50-65 | Suitable for the low mesh screen cloth ,low viscosity ink,irregular surface of the printing. |
| Green | Medium | 70-75 | Suitable for various of mesh screen cloth, various of ink and various of the prints. |
| Blue | Hard | 80-85 | Suitable for high pressure, high viscosity ink,the fine print of the printing |
| White | Super hard | 90-95 | Suitable for high pressure, high viscosity ink,the fine print of the printing |
| Green/White/ Green |
Triple medium |
75/90/75 | Suitable for various of mesh screen cloth,various of ink and various of the prints. |
| Red/White/Red | Soft medium |
65/90/65 | Suitable for the low mesh screen cloth ,low viscosity ink,irregular surface of the printing. |
Product Features
1.High Abrasion
2. Super Solvent
3.High Tolerance
4.High Cut Resistance
5.Cut Customization
6.Size Customization
Product Application:
Our screen printing squeegee is widely used in the below industry.
1.Textile screen printing machine
2.Ceramic and sanitaryware industry machine
3.Electronic machine,
4.Window film industry, scraper film
5.scraper automobile, car, truck.
6.UV ink industry
