Wooden Aluminium Screen Frames 120 Mesh For Manual Screen Printing Material
Wooden Aluminium Screen Frames 120 Mesh For Manual Screen Printing Material
Screen printing wooden frame description:
Selection of the frame:
According to the material, the frame generally has a wooden frame, an aluminum frame, an iron frame, a plastic frame, a stainless steel frame, and a copper frame.
Wooden frame: the price is relatively cheap, easy to make, can be stretched by hand and mechanically stretched.
Suitable for printing on low precision products
Specifications of the mesh choose:
| Mesh Count Diameter (Mesh/inch μm) |
Mesh Count (Mesh/Inch) |
Weave | Aperture (μm) |
Thread Diameter (μm) |
Opening (%) |
Thickness(μm) | Thickness Tollerance (+/- μm) |
Theoretical lnk(cm3/m2) |
Weight (g/m2) |
| 12-250 | 30 | 1:1 | 583 | 250 | 49 | 490 | 20 | 228 | 117 |
| 13-150PW(SL) | 33 | 1:1 | 619 | 150 | 64 | 300 | 14 | 128 | 60 |
| 16-200 | 40 | 1:1 | 425 | 200 | 46 | 400 | 18 | 172 | 148 |
| 20-120PW(T) | 50 | 1:1 | 380 | 120 | 58 | 210 | 11 | 122 | 76 |
| 21-80pw(S) | 55 | 1:1 | 296 | 80 | 69 | 120 | 9 | 79 | 35 |
| 21-150PW(SL) | 55 | 1:1 | 326 | 150 | 46 | 260 | 14 | 118 | 121 |
| 24-100PW(T) | 60 | 1:1 | 316 | 100 | 57 | 136 | 11 | 65 | 81 |
| 28-140PW(SL) | 70 | 1:1 | 217 | 140 | 40 | 195 | 13 | 76 | 125 |
| 32-55PW(S) | 81 | 1:1 | 257 | 55 | 67 | 103 | 6 | 67 | 28 |
| 32-64PW(S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 |
| 32-100PW(T) | 81 | 1:1 | 212 | 100 | 45 | 165 | 8 | 73 | 75 |
| 36-90PW(T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 |
| 39-55PW(S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 |
| 40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 |
| 43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 |
| 47-45PW(S) | 120 | 1:1 | 166 | 45*2 | 61 | 80 | 6 | 42 | 40 |
| 47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 |
| 48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 |
| 53-45PW(S) | 135 | 1:1 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 |
| 53-55PW(S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 |
| 54-64PW(T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 |
| 54-70(PW)HD | 137 | 1:1 | 109 | 70 | 35 | 116 | 6 | 40 | 62 |
| 61-64PW(T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 | 58 |
| 64-55PW(S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 | 48 |
| 64-64PW(T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 | 61 |
| 68-55PW(S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 | 48 |
| 68-64PW(T) | 175 | 1:1 | 78 | 64 | 28 | 105 | 5 | 30 | 65 |
| 72-48PW(S) | 182 | 1:1 | 90 | 48 | 36 | 78 | 5 | 33 | 39 |
| 72-55PW(T) | 182 | 1:1 | 85 | 55 | 30 | 90 | 5 | 27 | 51 |
| 77-48PW(S) | 195 | 1:1 | 77 | 48 | 35 | 80 | 4 | 28 | 42 |
| 77-55PW(T) | 195 | 1:1 | 67 | 55 | 27 | 88 | 4 | 24 | 55 |
| 80-48PW(T) | 200 | 1:1 | 72 | 48 | 33 | 74 | 4 | 25 | 56 |
| 90-48PW(T) | 230 | 1:1 | 56 | 48 | 25 | 78 | 4 | 19 | 50 |
| 100-40PW(T) | 255 | 1:1 | 58 | 40 | 33 | 63 | 3 | 21 | 37 |
| 110-40PW(HD) | 280 | 1:1 | 48 | 40 | 27 | 64 | 3 | 17 | 40 |
| 120-31PW(S) | 305 | 1:1 | 49 | 31 | 35 | 49 | 3 | 17 | 26 |
| 120-34PW(T) | 305 | 1:1 | 45 | 34 | 30 | 55 | 3 | 16 | 35 |
| 120-40PW(HD) | 305 | 1:1 | 37 | 40 | 20 | 63 | 3 | 13 | 44 |
| 130-34PW(T) | 330 | 1:1 | 40 | 34 | 27 | 55 | 3 | 15 | 37 |
| 140-31PW(S) | 355 | 1:1 | 36 | 31 | 26 | 48 | 2 | 12 | 30 |
| 140-34PW(T) | 355 | 1:1 | 31 | 34 | 20 | 53 | 3 | 10 | 39 |
| 140-34TW(T) | 355 | 1:1 | 33 | 34 | 21 | 56 | 3 | 12 | 41 |
| 150-31PW(S) | 380 | 1:1 | 32 | 31 | 23 | 49 | 3 | 11 | 32 |
| 150-34PW(T) | 380 | 1:1 | 23 | 34 | 13 | 55 | 3 | 6.5 | 42 |
| 165-34PW(S) | 420 | 1:1 | 23 | 31 | 15 | 48 | 2 | 7 | 36 |
| 180-27PW(S) | 460 | 1:1 | 23 | 27 | 16 | 43 | 2.5 | 7 | 31 |
Screen printing wooden frame applications:
Fabric printing, plastic printing, metal printing, ceramic printing, glass printing, electronic product printing, lottery silk screen printing, electric decorative advertising screen printing, metal advertising board silk screen, stainless steel product silk screen, light reflector silk screen, screen transfer aluminum, silk screen Printmaking and lacquer silkscreen
Screen printing wooden frame popular size:
15mm*25mm*1.2mm ,open hole,used for small screen.
18mm*22mm*1.0mm,open hole,used for small screen.
18mm*22mm*1.0mm,open hole,used for small screen.
20mm*30mm*1.0mm,open hole,used for small screen.
20mm*30mm*1.4mm,open hole,used for small screen.
25mm*25mm*1.2mm,T shape,application:Ran a printing.
25mm*38mm*1.25mm,open hole ,used for small screen.
25mm*38mm*1.4mm,open hole,Electron industry.
25mm*40mm*1.0mm, T shape,application:Ran a printing
30mm*30mm*1.0mm,T shape,apllication :ran a printing.
30mm*30mm*1.4mm,T shape,application:ran a printing.
35mm*35mm*1.8mm, open hole, used for textile printing.
38mm*38mm*2.0mm,open hole, used for textile printing.
38mm*38m*2.4mm,open hole,used for textile printing.

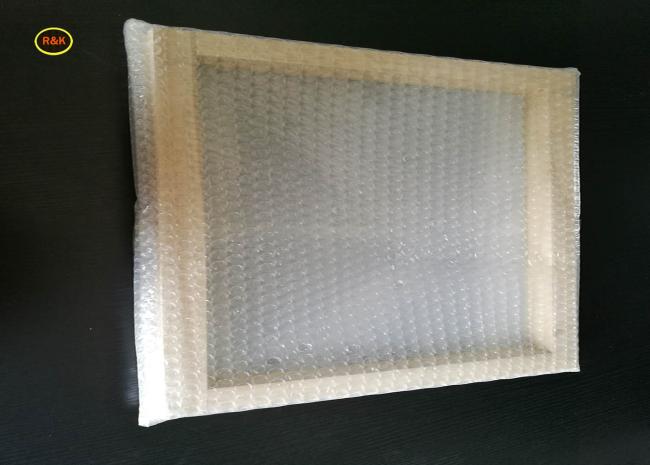

Screen printing wooden frame photo show:
