100 200 300 Mesh Polyester Screen Printing Mesh Roll 1.27 M Width
100 200 300 Mesh 1.27 M Width Polyester Screen Printing Mesh Roll
Descriptions of polyester screen printing mesh:

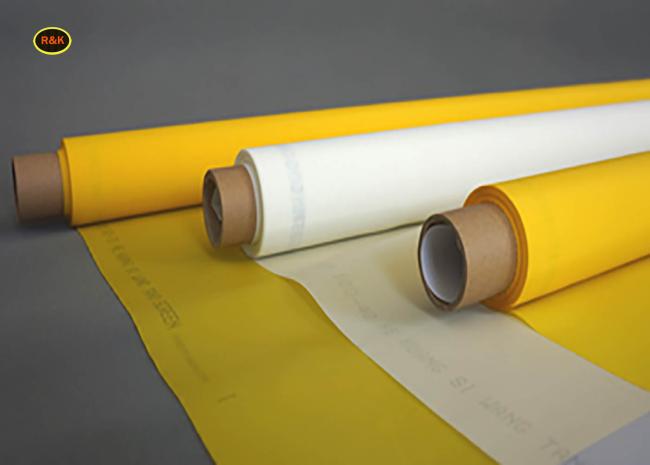

Polyester printing mesh polyester printing mesh specifications: 60 mesh to 420 mesh width: 1.15 meters to 3.6 meters wide length: 50 meters color: white, yellow polyester fiber printing mesh characteristics polyester printing mesh using high precision high quality monofilament
Specification of the polyester mesh:
| Mesh Count Diamete (Mesh/inch μm) |
Mesh Count (Mesh /Inch) |
Weave | Aperture (μm) |
Thread Diameter (μm) |
Opening (%) |
Thickness(μm) | Thickness Tollerance (+/- μm) |
Theoretical lnk(cm3/m2) |
Weight (g/m2) |
| 13150PW(SL) | 33 | 1:1 | 619 | 150 | 64 | 300 | 14 | 128 | 60 |
| 21-80pw(S) | 55 | 1:1 | 296 | 80 | 69 | 120 | 9 | 79 | 35 |
| 21-150PW(SL) | 55 | 1:1 | 326 | 150 | 46 | 260 | 14 | 118 | 121 |
| 24-100PW(T) | 60 | 1:1 | 316 | 100 | 57 | 136 | 11 | 65 | 81 |
| 2-140PW(SL) | 70 | 1:1 | 217 | 140 | 40 | 195 | 13 | 76 | 125 |
| 32-55PW(S) | 81 | 1:1 | 257 | 55 | 67 | 103 | 6 | 67 | 28 |
| 32-64PW(S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 |
| 32100PW(T) | 81 | 1:1 | 212 | 100 | 45 | 165 | 8 | 73 | 75 |
| 36-90PW(T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 |
| 39-55PW(S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 |
| 40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 |
| 43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 |
| 47-45PW(S) | 120 | 1:1 | 166 | 45*2 | 61 | 80 | 6 | 42 | 40 |
| 47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 |
| 48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 |
| 53-45PW(S) | 135 | 1:1 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 |
| 53-55PW(S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 |
| 54-64PW(T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 |
| 5470(PW)HD | 137 | 1:1 | 109 | 70 | 35 | 116 | 6 | 40 | 62 |
| 61-64PW(T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 | 58 |
| 64-55PW(S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 | 48 |
| 64-64PW(T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 | 61 |
| 68-55PW(S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 | 48 |
| 68-64PW(T) | 175 | 1:1 | 78 | 64 | 28 | 105 | 5 | 30 | 65 |
| 72-48PW(S) | 182 | 1:1 | 90 | 48 | 36 | 78 | 5 | 33 | 39 |
| 72-55PW(T) | 182 | 1:1 | 85 | 55 | 30 | 90 | 5 | 27 | 51 |
| 77-48PW(S) | 195 | 1:1 | 77 | 48 | 35 | 80 | 4 | 28 | 42 |
| 77-55PW(T) | 195 | 1:1 | 67 | 55 | 27 | 88 | 4 | 24 | 55 |
| 80-48PW(T) | 200 | 1:1 | 72 | 48 | 33 | 74 | 4 | 25 | 56 |
| 90-48PW(T) | 230 | 1:1 | 56 | 48 | 25 | 78 | 4 | 19 | 50 |
| 100-40PW(T) | 255 | 1:1 | 58 | 40 | 33 | 63 | 3 | 21 | 37 |
| 110-40PW(HD) | 280 | 1:1 | 48 | 40 | 27 | 64 | 3 | 17 | 40 |
| 120-31PW(S) | 305 | 1:1 | 49 | 31 | 35 | 49 | 3 | 17 | 26 |
| 120-34PW(T) | 305 | 1:1 | 45 | 34 | 30 | 55 | 3 | 16 | 35 |
| 120-40PW(HD) | 305 | 1:1 | 37 | 40 | 20 | 63 | 3 | 13 | 44 |
| 130-34PW(T) | 330 | 1:1 | 40 | 34 | 27 | 55 | 3 | 15 | 37 |
| 140-31PW(S) | 355 | 1:1 | 36 | 31 | 26 | 48 | 2 | 12 | 30 |
| 140-34PW(T) | 355 | 1:1 | 31 | 34 | 20 | 53 | 3 | 10 | 39 |
| 140-34TW(T) | 355 | 1:1 | 33 | 34 | 21 | 56 | 3 | 12 | 41 |
| 150-31PW(S) | 380 | 1:1 | 32 | 31 | 23 | 49 | 3 | 11 | 32 |
| 150-34PW(T) | 380 | 1:1 | 23 | 34 | 13 | 55 | 3 | 6.5 | 42 |
| 165-34PW(S) | 420 | 1:1 | 23 | 31 | 15 | 48 | 2 | 7 | 36 |
· Low Elongation, High Tension
· Excellent Tear Resistance
· Very good Dimensional Stability
· Faster tensioning without damage to the threads
· Improved registration due to stable tension
- Dedicated and experienced weavers
- Consistent quality products
- On time delivery
- Reasonable claim refund system
Applications of the polyester screen printing mesh:
Can be widely used in the electronics industry, textile printing and dyeing, ceramics, glass printing, printing and other fields.
