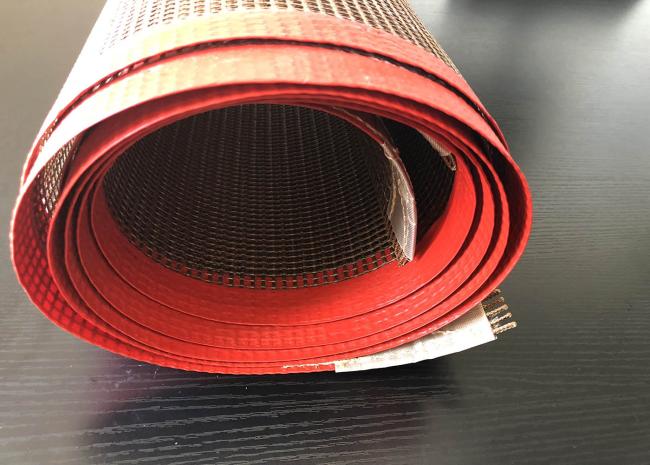

Fiberglass Wire Mesh Oven PTFE Conveyor Belt With Red Wedge And Joint
fiberglass teflen coated wire mesh conveyor belts for oven with red wedge and joint
Description of the teflen conveyor belt:
We can make the teflen belt size as your requirements.The materials is fiberglass,and have high quality .
Waiting for your inquiry.
| Item | Aperture | material | Thickness | weight | temperature resistance | max width | Tensile strength |
| 1 | 1x 1mm | Fiberglass | 0.5mm | 370g /m 2 | -70 -260 ℃ | 4m | 310/290 N/cm |
| 2 | 2x 2mm | Fiberglass | 0.7mm | 450g /m 2 | -70 -260 ℃ | 4m | 350/310 N/cm |
| 3 | 4x 4mm | Fiberglass | 1.0mm | 400g /m 2 | -70 -260 ℃ | 4m | 390/320 N/cm |
| 4 | 4x 4mm | Fiberglass | 1.0mm | 450g /m 2 | -70 -260 ℃ | 4m | 390/320 N/cm |
| 5 | 4x 4mm | Kevlar glass fiber | 1.2mm | 600g /m 2 | -70 -260 ℃ | 4m | 895/370 N/cm |
| 6 | 4x 4mm | Fiberglass | 1.0mm | 500g /m 2 | -70 -260 ℃ | 4m | 395/370 N/cm |
| 7 | 4x 4mm | Fiberglass | 1.0mm | 500g /m 2 | -70 -260 ℃ | 4m | 900/600 N/cm |
| 8 | 4x 4mm | Fiberglass | 1.0mm | 550g /m 2 | -70 -260 ℃ | 4m | 395/370 N/cm |
| 9 | 10x 10mm | Fiberglass | 1.2mm | 450g /m 2 | -70 -260 ℃ | 4m | 360/300 N/cm |
| 10 | 0.5x 1mm | Fiberglass | 0.5mm | 420g /m 2 | -70 -260 ℃ | 4m | 310/290 N/cm |
| 11 | 2x 2.5mm | Fiberglass | 0.9mm | 600g /m 2 | -70 -260 ℃ | 3m | 390/320 N/ |
Features of the teflen conveyor belt:
Excellent resistance temperature
Weather resistance
Aging resistance.
Excellent chemical resistance.
Strong acid, strong alkali, aqueous solution and various organic solvents.
Excellent non-stick surface,
Easy to clean.
Low friction coefficient
High insulation performance
Anti-ultraviolet, anti-static.
Good dimensional stability
High strength, good mechanical properties.
Non-toxic, resistant to almost all medical products.
Bending fatigue resistance.
Improve drying efficiency.
Specification of the teflen conveyor belt:
| Mesh Size | Thickness | Weight | Tensile Strength |
| 1*1mm | 0.5mm | 370g/ m2 | 310/290N/cm |
| 2*2mm | 0.7mm | 450g/ m2 | 350/310N/cm |
| 4*4mm | 1.0mm | 400g/ m2 | 390/320N/cm |
| 4*4mm | 1.2mm | 600g/ m2 | 895/370N/cm |
| 10*10mm | 1.2mm | 450g/ m2 | 360/300N/cm |
| 0.5*1mm | 0.5mm | 420g/ m2 | 310/290N/cm |
| 2*2.5mm | 0.9mm | 600g/ m2 | 390/320N/cm |
Application of the teflen conveyor belt:
The teflen conveyor belt is widely used in below industy:
Non-woven fabrics, textile printing, silk printing, dyeing machine drying machine.
Used for garment fabric, high frequency and UV drying machine.
Hot air dryer conveyor belt, various kinds of food baking, quick-freezing machine.
Used for paper glazing and waxing, factory engineering.
Used for cardboard production of separator plates and so on.
