635 Mesh Roll Plain Weave SS 304 Wire Mesh , Stainless Mesh Screen For Printing
635 mesh Roll Plain Weave SS 304 Wire Mesh , Stainless Mesh Screen For Printing

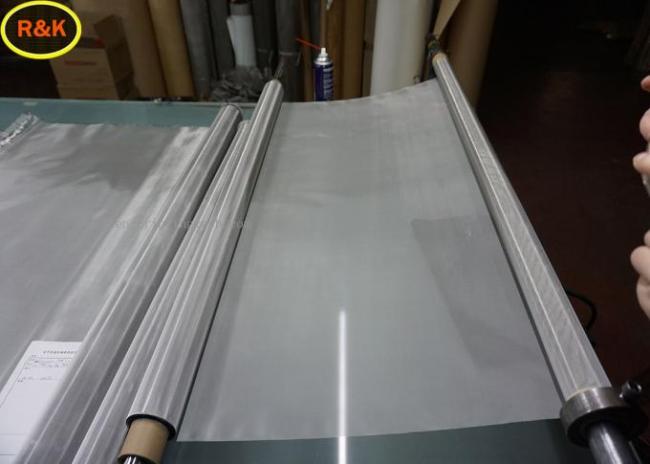

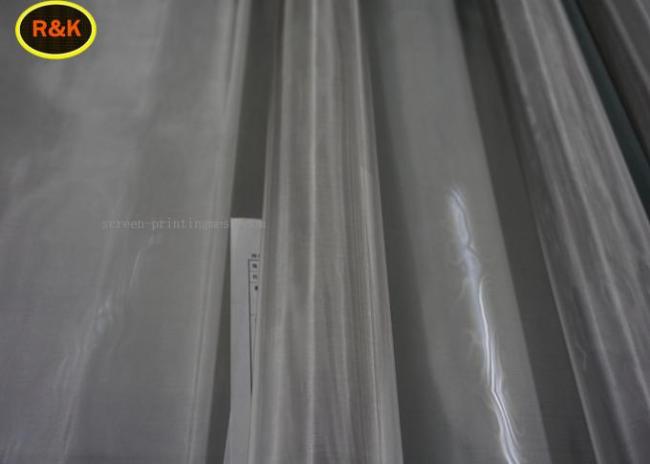

Description of stainless steel screen mesh:
| Material | SUS304,304L,316,316L |
| Hole Shape | Square |
| Width | 1.0-1.5m |

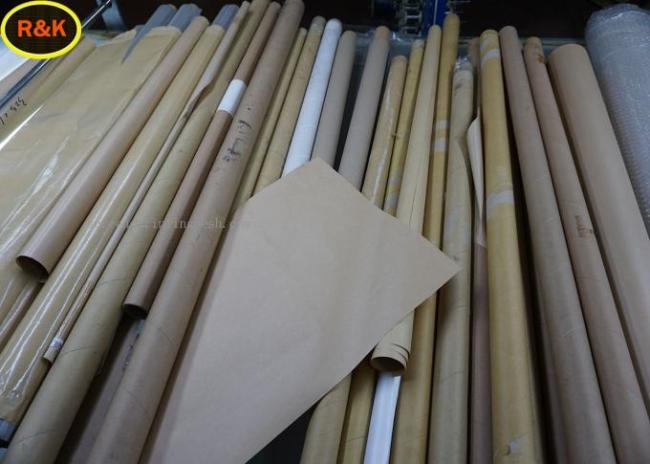

| size per roll | usually 1meter or 1.2meter wide,30meter per roll |
| wire diameter | Min diameter is0.018mm |
| aperture size | Min is 1Micron |
Stainless steel filter wire mesh refers to stainless woven wire mesh used in filter liquid,gas and pulp.The opening can be square, rectangular or special opening.Normally,this kind of wire mesh has standard opening sizes,uniform opening, good permeability and high strength. The raw materials should be chosen according to different environments of applications.
Features of stainless steel wire mesh:
- Acid and alkali resistant
- Corrosion resistant
- Abrasion resistance, durable
- Easy to plastic processing, so that the possibility of the use of stainless steel screens diversified
- High finish, no surface treatment, maintenance is simple
- Standard size,uniform opening,Precise control fiter rating etc
Application of stainless steel mesh roll :
stainless steel filter wire mesh is used in petroleum,chemical industry,chemical fiber, food
,medicine,fertilizer,paper-making,airspace.
Specification of the stainless steel printing mesh:
| Mesh/inch | Wire diameter (inch) | Aperture (inch) | Open area | Weight (Sqaure meter |
| 1*1 | 0.080 | 0.920 | 92.0 | 2.0 |
| 2*2 | 0.063 | 0.437 | 87.4 | 2.5 |
| 3*3 | 0.054 | 0.279 | 83.8 | 2.7 |
| 4*4 | 0.047 | 0.203 | 81.2 | 2.7 |
| 5*5 | 0.041 | 0.159 | 79.5 | 2.6 |
| 10*10 | 0.024 | 0.076 | 74.9 | 1.8 |
| 12*12 | 0.020 | 0.064 | 75.9 | 1.5 |
| 14*14 | 0.020 | 0.052 | 71.9 | 1.75 |
| 16*16 | 0.018 | 0.045 | 71.2 | 1.6 |
| 18*18 | 0.016 | 0.0398 | 69.4 | 1.4 |
| 20*20 | 0.009 | 0.041 | 76.0 | 0.57 |
| 30*30 | 0.012 | 0.0382 | 63.9 | 1.35 |
| 40*40 | 0.0098 | 0.015 | 72.1 | 1.25 |
| 50*50 | 0.0079 | 0.0121 | 36.7 | 1.0 |
| 60*60 | 0.0047 | 0.012 | 38.7 | 0.42 |
| 80*80 | 0.0047 | 0.0107 | 45.5 | 0.58 |
| 100*100 | 0.0039 | 0.006 | 59.8 | 0.50 |
| 120*120 | 0.0027 | 0.0056 | 67.7 | 0.29 |
| 150*150 | 0.0024 | 0.0043 | 41.6 | 0.27 |
| 165*165 | 0.0018 | 0.0043 | 50 | 0.167 |
| 180*180 | 0.0019 | 0.0036 | 64.5 | 0.22 |
| 200*200 | 0.0019 | 0.003 | 60.6 | 0.24 |
| 250*250 | 0.0012 | 0.0028 | 49.8 | 0.11 |
| 270*270 | 0.0014 | 0.0023 | 60 | 0.16 |
| 300*300 | 0.0012 | 0.0022 | 57 | 0.13 |
| 325*325 | 0.0014 | 0.0017 | 55.3 | .0.20 |
| 400*400 | 0.0012 | 0.0013 | 52.7 | 0.18 |
| 500*500 | 0.0009 | 0.001 | 50.7 | 0.15 |
| 635*635 | 0.0007 | 0.0008 | 55.0 | 0.10 |
