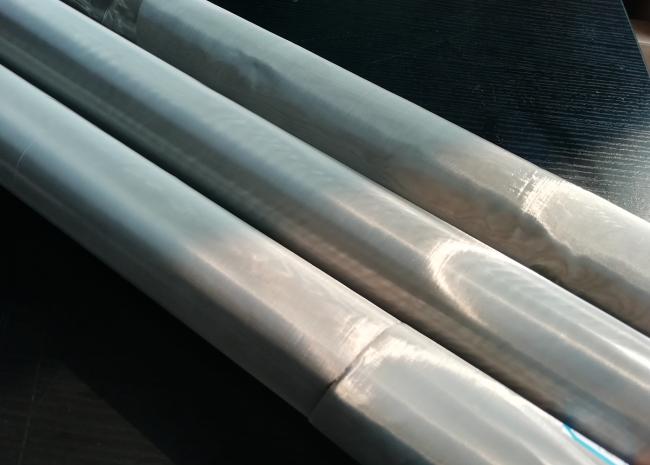

SUS 304 316 120 Mesh Stainless Steel Screen Printing Mesh Low Elasticity
SUS 304 316 120 mesh high quality stainless steel screen printing screen
Product Introduction
Material: Stainless Steel 201,202,301,302,304,304L,316,316L,321. (SS 304 is general material)
Wire Diameter: 0.015-1mm (we have our own wire drawing workshop for serve mesh production)
Mesh No.:3-635 Mesh (' Mesh' means the numbers of hole in one inch line)
Weave type: Plain Weave,Twilled weave,dutch weave.
Roll Width: 1.0m,1.2m,1.3m,1.5m,1.6m,2.0m up to 6m (or cut as your request)
Roll Length: 15m,30m,60m,100m,200m
Procuct Feaures
Square hole,warp wire and weft wire are of equal size.
Accurate in mesh size,high flow rate.
High efficient screeing,good stability,high opening rate,Low pressure loss.
flat surface,wear-resistant,good air permeability,firm in structure,easy to clean.
Product Application
widely used in aerospace, petroleum, chemical industry
scientific research and transportation industries
electroplating industry for pickling mesh, printing mesh
battery industry and a variety of sophisticated filtration products.
Product specification
| Specification | Mesh/inch | Wire Dia.(μm) | Open area Ratio(%) | Aperture(μm) | Thickness(μm) | Calendered Thickness(μm) | Theoretical Ink(cm³/m²) |
| 40*40*160 | 40 | 160 | 56.0 | 475 | 300-320 | As order | 179.1 |
| 60*60*120 | 60 | 120 | 51.3 | 303 | 230-245 | As order | 123.2 |
| 80*80*120 | 80 | 120 | 39.0 | 198 | 235-245 | As order | 92.9 |
| 80*80*90 | 80 | 90 | 52.0 | 228 | 175-180 | As order | 103.0 |
| 80*80*50 | 80 | 50 | 71.0 | 268 | 95-100 | As order | 78.0 |
| 100*100*100 | 100 | 100 | 36.8 | 154 | 195-205 | As order | 77.2 |
| 120*120*80 | 120 | 80 | 39.0 | 132 | 155-165 | As order | 65.8 |
| 150*150*60 | 150 | 60 | 41.7 | 109 | 115-124 | As order | 50.0 |
| 165*165*35 | 165 | 35 | 60.0 | 119 | 70-75 | As order | 48.0 |
| 165*165*45 | 165 | 45 | 50.1 | 109 | 88-93 | As order | 45.1 |
| 165*165*50 | 165 | 50 | 45.6 | 104 | 97-105 | As order | 45.6 |
| 180*180*45 | 180 | 45 | 46.4 | 96 | 88-93 | As order | 41.5 |
| 180*180*50 | 180 | 50 | 42.0 | 91 | 98-104 | As order | 41.7 |
| 200*200*40 | 200 | 40 | 46.9 | 87 | 82-84 | As order | 43.0 |
| 200*200*50 | 200 | 50 | 37.0 | 77 | 98-103 | As order | 42.0 |
| 230*230*35 | 230 | 35 | 46.7 | 75 | 72-76 | 50-67 | 37.0 |
| 250*250*40 | 250 | 40 | 36.8 | 62 | 86-86 | 50-80 | 34.0 |
| 250*250*30 | 250 | 30 | 49.7 | 72 | 64-68 | 40-58 | 30.0 |
| 250*250*35 | 250 | 35 | 43.0 | 67 | 76-78 | 57-70 | 32.0 |
| 270*270*35 | 270 | 35 | 39.4 | 59 | 76-80 | 58-70 | 30.0 |
| 300*300*30 | 300 | 30 | 41.7 | 55 | 66-68 | 40-59 | 28.0 |
| 325*325*30 | 325 | 30 | 38.0 | 48 | 66-68 | 45-60 | 24.0 |
| 325*325*28 | 325 | 28 | 41.2 | 50 | 63-64 | 40-56 | 26.4 |
| 325*325*23 | 325 | 23 | 49.8 | 55 | 49-53 | 37-41 | 25.4 |
| 350*350*25 | 350 | 25 | 43.0 | 48 | 52-54 | 41-50 | 18.7 |
| 400*400*23 | 400 | 23 | 40.7 | 41 | 50-54 | 35-48 | 19.0 |
| 400*400*18 | 400 | 18 | 51.3 | 46 | 36-40 | 28-30 | 20.0 |
| 500*500*18 | 500 | 18 | 41.7 | 33 | 36-40 | 23-29 | 15.3 |
