Monofilament Polyester Mesh

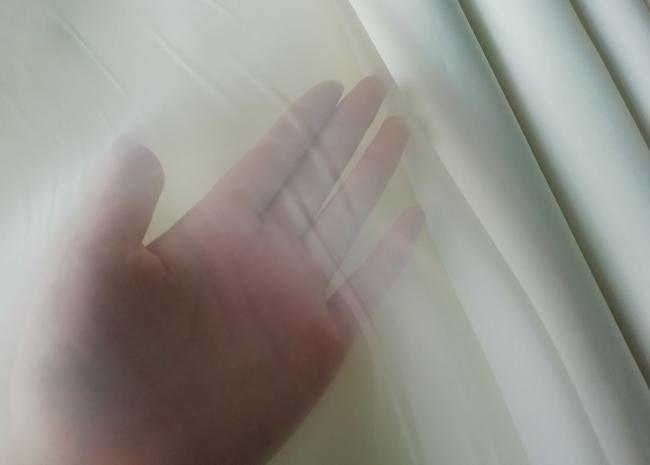

Plain Weave Yellow 200 Micron Monofilament Polyester Silk Screen Printing Mesh
Product Introduction
| Material | 100% polyester |
| Thickness | 55-365 Micron |
| opening size | 100micron |
| Leadtime | 2-10 days according to the order quantity |
| Sample | Avalibale |
| width | 115cm,127cm,136cm,145cm,157cm,165cm,188cm,220cm and MAX width can be 3.65cm |
Screen printing is a modern printing method popular for making T-shirts and other garments, but also widely used for Textile Printing, Ceramic Printing, Glass Printing, Graphics Printing, Electronic Printing, CD/DVD Printing, Wood printing, Metal printing, Plastic and leather printing.
Product Feature
1. Polyester printing screen has the characteristics of high tension threshold and breaking point
2. Polyester printing screen belongs to high modulus, low elongation monofilament polyester yarn
3. Polyester printing screen can resist chemicals, abrasion, heat and moisture
4. It is in minimal tension loss during stretching process
5. It improved registration due to stable fabric tension
6. Polyester printing mesh has the ability of good antistatic
7. Polyester printing mesh does not have many cumbersome surface treatments
Product Application
1. Printing mesh for Textile
Printing mesh for T-shirt/Garment
| Mesh Count Diameter (Mesh/cm μm) | Mesh Count(Mesh/inch) | Aperture(μm) | Thread Diameter(μm) |
| 13-150PW(SL) | 33 | 619 | 150 |
| 21-80PW(S) | 55 | 296 | 80 |
| 21-150PW(SL) | 55 | 326 | 150 |
| 24-100PW(T) | 60 | 316 | 100 |
| 28-140PW(SL) | 70 | 217 | 140 |
| 32-55PW(S) | 81 | 257 | 55 |
| 32-64PW(S) | 81 | 248 | 64 |
| 32-100PW(T) | 81 | 212 | 100 |
| 36-90PW(T) | 92 | 183 | 90 |
| 39-55PW(S) | 100 | 177 | 55 |
| 40-80PW(T) | 103 | 166 | 80 |
| 43-80PW(T) | 110 | 149 | 80 |
| 47-45PW(S) | 120 | 166 | 80 |
| 47-55PW(S) | 120 | 152 | 55 |
| 48-70PW(T) | 122 | 133 | 70 |
| 53-45PW(S) | 135 | 143 | 45*2 |
| 53-55PW(S) | 135 | 133 | 70 |
| 54-64PW(T) | 137 | 115 | 64 |
| 54-70PW(HD) | 137 | 109 | 70 |
| 61-64PW(T) | 155 | 90 | 64 |
| 64-55PW(S) | 160 | 98 | 55 |
| 64-64PW(T) | 160 | 85 | 64 |
| 68-55PW(S) | 175 | 85 | 55 |
| 68-64PW(T) | 175 | 78 | 64 |
| 72-48PW(S) | 182 | 90 | 48 |
| 72-55PW(T) | 182 | 85 | 55 |
| 77-48PW(S) | 195 | 77 | 48 |
Product weaving
The most common weaving pattern in Plain screen printing mesh is called "plain weave" and will be designated on labels as "PW." It is a simple over-and-under weaving pattern. "Twill weave (TW)" is used to create thicker, sturdier screens and relies on complex patterns of weaving, which vary depending on the manufacturer. Twill weave mesh will be thicker than plain weave even if the mesh count is identical. The Screen Printing Technical Foundation compared the different weave's performance and found that twill weave transferred somewhat less ink than plain weave.
