30m Stainless Steel Screen Printing Mesh
Price:
negotiation
MOQ:
50 meters
Delivery Time:
Within 8 work days
Brand:
R&K
Product Description
SUS 304 , 316L Stainless Steel Screen Printing Mesh Roll For Glass Printing
Description of stainless steel screen mesh:
| Product Name | SUS 304 , 316L Stainless Steel Screen Printing Mesh Roll For Glass Printing |
| Usage | Glass Printing |
| Material | SUS 304 , 316L |
| Wire diameter | 35 micron |
| Length | 30 meters for one roll |
| Width | 1.0m/1.22m |
| Mesh Count | 200,250,300mesh |
Features of stainless steel screen mesh:
- 1) Reking Stainless steel wire mesh is ultra-high precision, high yield point, low elongation, good rebound rate, no static, controllable and uniform thickness;
- 2) Reking Stainless stwwl wire mesh is also high corrosion resistance and wear resistance, excellent heat resistance and solvent resistance, and will not change the inherent mechanical strength of the steel mesh due to the influence of ultraviolet light;
Application of stainless steel screen mesh :
stainless steel filter wire mesh is used in petroleum,chemical industry,chemical fiber, food ,medicine,fertilizer,paper-making,airspace.
Specification of the stainless steel screen mesh:
| Specification | Mesh/ inch |
Wire Dia (μm) |
Open area Ratio(%) |
Apereture (μm) |
Apereture (μm) |
Calendered Thickness (μm) |
Theoretical lnk(cm^/m^) |
| 165*165*50 | 165 | 50 | 45.6 | 104 | 97-105 | As order | 45.6 |
| 180*180*45 | 180 | 45 | 46.4 | 96 | 88-93 | As order | 41.5 |
| 180*180*50 | 180 | 50 | 42 | 91 | 98-104 | As order | 41.7 |
| 200*200*40 | 200 | 40 | 46.9 | 87 | 82-84 | As order | 43 |
| 200*200*50 | 200 | 50 | 37 | 77 | 98-103 | As order | 42 |
| 230*230*35 | 230 | 35 | 46.7 | 75 | 72-76 | 50-67 | 37 |
| 250*250*40 | 250 | 40 | 36.8 | 62 | 82-86 | 50-80 | 34 |
| 250*250*30 | 250 | 30 | 49.7 | 72 | 64-68 | 40-58 | 30 |
| 250*250*35 | 250 | 35 | 43 | 67 | 76-78 | 57-70 | 32 |
| 270*270*35 | 270 | 35 | 39.4 | 59 | 76-80 | 58-70 | 30 |
| 300*300*30 | 300 | 30 | 41.7 | 55 | 66-68 | 4-59 | 28 |
| 325*325*30 | 325 | 30 | 38 | 48 | 66-68 | 45-60 | 24 |
| 325*325*28 | 325 | 28 | 41.2 | 50 | 63-64 | 40-56 | 26.4 |
| 325*325*23 | 325 | 23 | 49.8 | 55 | 49-53 | 37-41 | 25.4 |
| 350*350*35 | 350 | 25 | 43 | 48 | 52-54 | 41-50 | 18.7 |
| 400*400*23 | 400 | 23 | 40.7 | 41 | 50-54 | 35-48 | 19 |
| 400*400*18 | 400 | 18 | 51.3 | 46 | 36-40 | 28-30 | 20 |
| 500*500*18 | 500 | 18 | 41.7 | 33 | 36-40 | 23-29 | 15.3 |

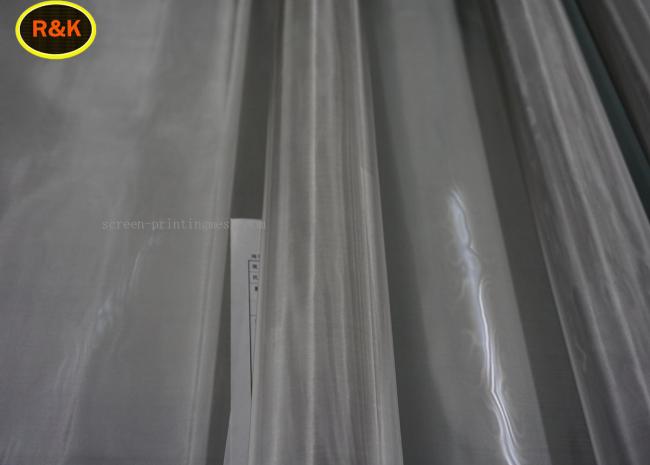

Photo of the stianless steel screen mesh:
