Wooden Squeegee Blades Rubber 80A Screen Printing Material
Wooden Screen Printing Marerial 80A Squeegee Blades Rubber
Squeegee Instructions for use:
The wooden handle scraper is one of the screen printing scrapers. Our commonly used screen scrapers are divided into wooden handle scrapers and aluminum handle scrapers. Compared with aluminum handle scrapers, wood handle scrapers are more cost-effective. Therefore, many customers choose wooden handle scraper. Not only can it meet your needs, but it can also greatly reduce your costs. So you can choose the wooden handle material according to your specific use. You can rest assured that our wooden handle scraping glue will definitely meet your needs. Please rest assured to buy!
For the scraper grinding of the squeegee:
1. Pay attention to clean and dry when grinding and scraping, preferably after 24 hours.
2. The scraper needs to be fixed on the aluminum clamp used for grinding.
3. Regardless of whether the belt machine is a belt machine or a grinder, 110 mesh to 130 mesh should be used.
4. The selected fixture, scraper and grinder are in a stable mechanical system state.
5. It takes more than 2 hours to cool down the plastic scraper.
For storage of scrapers of the squeegee:
1. Can not be immersed in the solvent squeegee for a long time
2. Squeegee printing needs to be replaced frequently.
3. When the squeegee is in use, the ink attached to it should be clean and dry. Usually use a neutral thinner for cleaning.
squeegee specificaion for reference:
| Color | Hardness | Shore A | Suggestion |
| Red or natural | Soft | 50-65 | Suitable for the low mesh screen cloth ,low viscosity ink,irregular surface of the printing. |
| Green | Medium | 70-75 | Suitable for various of mesh screen cloth,various of ink and various of the prints. |
| Blue | Hard | 80-85 | Suitable for high pressure,high viscosity ink,the fine print of the printing |
| White | Super hard | 90-95 | |
| Green/White/Green | Triple medium | 75/90/75 | Suitable for various of mesh screen cloth,various of ink and various of the prints. |
| Red/White/Red | Soft medium | 65/90/65 | Suitable for the low mesh screen cloth ,low viscosity ink,irregular surface of the printing. |
squeegee blade specification for reference:
Popular standard size:
| Item name | Thickness*Width*Length | Color | Sharp | Hardness |
|
S Q B U L E A E D G E E E
|
5*17*4000 | Red | Flat | 60A to 90A |
| 5*20*4000 | Red | Flat | 60A to 90A | |
| 5*25*4000 | Red | Flat | 60A to 90A | |
| 5*25*4000 | Red | Flat | 60A to 90A | |
| 5*35*4000 | Yellow | Flat | 60A to 90A | |
| 7*35*4000 | Yellow | Flat | 60A to 90A | |
| 7*42*4000 | Blue | Flat | 60A to 90A | |
| 7*50*4000 | Blue | Flat | 60A to 90A | |
| 9*42*4000 | Green | Flat | 60A to 90A | |
| 9*50*4000 | Green | Flat | 60A to 90A | |
| 10*50*4000 | Coffee | Flat | 40A to 90A |

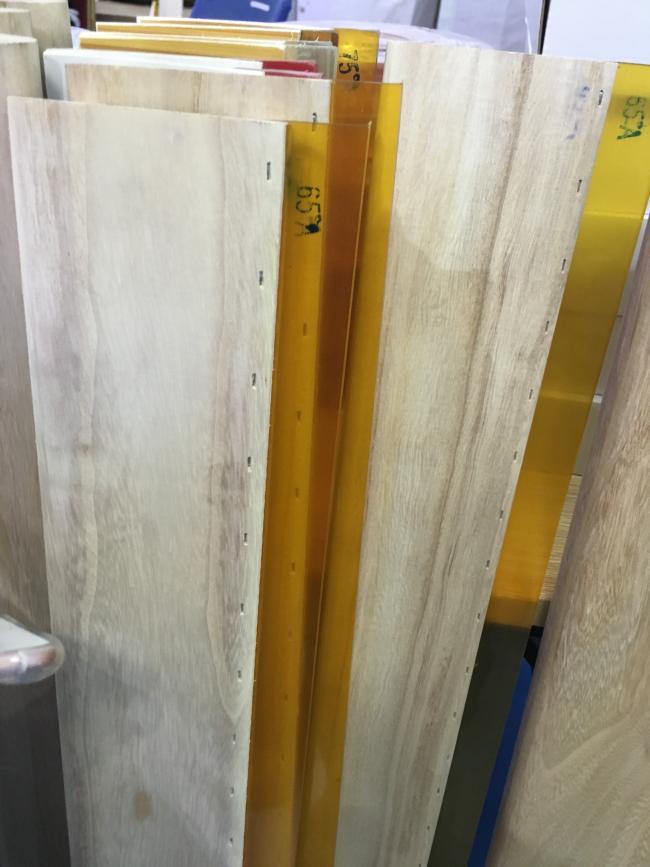

Photo for the squeegee blasde for silk screen printing mesh:
