20mm 95A Polyurethane Screen Printing Squeegee Blades
Custom Size 100% Polyurethane Yellow Screen Printing Squeegee Blades For Screen Printing
Product Introduction
| Product name |
Printing squeegee |
| Material | 100% Polyurethane |
| Color | red,white,green,yellow |
| Hardness | 45-90A |
| Sample | Provide |
| Shape | Custom |
| Package | 1 Roll/Small Box. 10 Small Boxes/Carton. |
| MOQ | 1 roll |
Our special molding process ensures a uniform material, without voids. All of our squeegees are shipped with our special factory edge. These edges are the smoothest and sharpest available to give you maximum printing performance.
We are using 100% polyurethane import material.And every process is meticulous.
Product Usage
The working part of the squeegee is the printing end of the squeegee, which is in contact with the screen during the printing process. The hardness or softness of the squeegee is critical to the entire printing process. Not to say that the squeegee determines the printing quality
The cross-sectional shape of the squeegee refers to the shape of the cross-section of the end of the squeegee in contact with the screen. The shape of all surfaces determines the pressure on the surface of the substrate material. Different cutting planes can make the ink flow more or less, thereby affecting the thickness of the printing ink layer. The sharper the squeegee printing end, the less the excess ink flow, the better the resolution of the printed image, the better the printing clarity, and the thicker the printing ink layer
Product Specification
| Color | Hardness | shore A | Application |
| Green | Medium | 70-75 | Suitable for various of mesh screen cloth, various of ink and various of the prints. |
| Red | Soft | 50-65 | Suitable for the low mesh screen cloth ,low viscosity ink,irregular surface of the printing. |
| Blue | Hard | 80-85 | Suitable for high pressure, high viscosity ink,the fine print of the printing |
| White | Super hard | 90-95 | Suitable for high pressure, high viscosity ink,the fine print of the printing |
| Green/White/ Green |
Triple medium |
75/90/75 | Suitable for various of mesh screen cloth,various of ink and various of the prints. |
| Red/White/Red | Soft medium |
65/90/65 | Suitable for the low mesh screen cloth ,low viscosity ink,irregular surface of the printing. |
Product Function
The general function of screen printing squeegee is divided into the following points:
1. Transfer the ink to the substrate through the screen.
2. Scrape off excess ink from the screen.
3. Keep the screen in contact with the substrate line.
4. It can print substrates with different shapes.
How to choose
1. The medium hardness squeegee is used for high pressure.Suitable for various of mesh screen cloth,various of ink and various of the prints use this kinds of squeegee the printing ink accumulate very well.Image resolution power is good,suitable for all kinds of printed substrates.
2. The hard squeegee used for the largest printing pressure and printing ink viscosity is very high.Small amount of oil accumulation and image resolution are usually in the screen printing can choose the hard squeegee.it produces the ink layer is very thin.

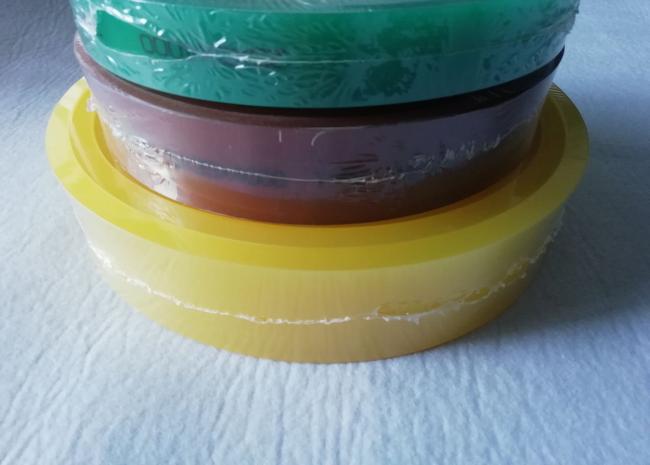

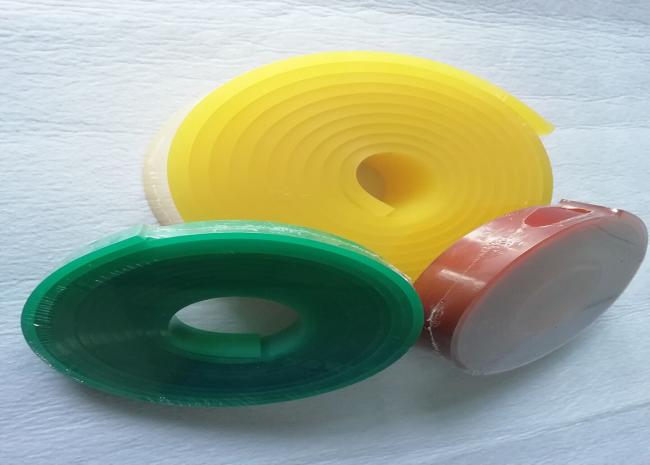

Product Show
