China 1x1 Hardware 0.5m Stainless Steel Wire Mesh for sale

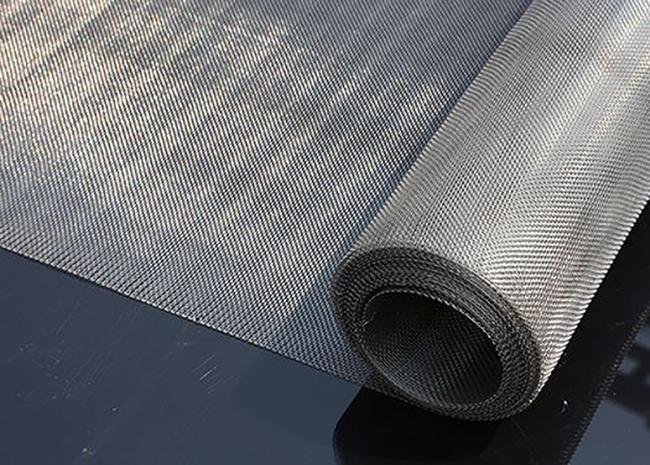

1x1 Hardware 0.5m Stainless Steel Wire Mesh

Price Negotiable
Price: Negotiate
MOQ: 1 square meter
Delivery Time: 5-8 work days
Brand: R&K
Product Description

High Tension Hardware Wire Mesh Corrosion Resistance Custom Width



product description



Mterial: AISI 304

Wire diameter:0.035mm

Mesh count:347 mesh

Weave style: plain weave



Product Application



stainless steel filter mesh used in filtering liquid, gas and pulp.



Perhaps the most demanding industries for using stainless steel are the chemical, processing and oil and gas industries, which also create a huge market for stainless steel tanks, pipes, pumps and valves. One of the first success stories of 304 stainless steel is the storage of dilute nitric acid because it can be used in thinner parts and is stronger than other materials. Special grades of stainless steel have been developed to provide higher corrosion resistance at various temperatures. These are used in desalination plants, sewage treatment plants, offshore oil rigs, port support and ship propellers.



Product features



The most feature of the stainless steel fiter mesh is high tension,it's much higher than common polyester mesh.It have the uniform wire diamter for each mesh count.



Product parameters



Mesh Wire Diameter Aperture Open Area Weight
Inch MM Inch MM (%) (kg /Square meter)
1x1 0.08 2.03 0.92 23.37 92 2
2X2 0.063 1.6 0.437 11.1 87.4 2.5
3X3 0.054 1.37 0.279 7.09 83.8 2.7
4X4 0.047 1.19 0.203 5.16 81.2 2.7
5X5 0.041 1.04 0.159 4.04 79.5 2.6
8X8 0.02 0.5 0.105 2.675 71 1
9X9 0.02 0.5 0.091 2.32 67.7 1.1
10X10 0.025 0.64 0.075 1.91 74.9 2
12X12 0.02 0.508 0.063 1.6 75.9 1.5
12X12 0.022 0.55 0.062 1.567 54.8 1.815
14X14 0.02 0.508 0.051 1.3 71.9 1.8
14X14 0.0177 0.45 0.054 1.36 75.14 1.417
16X16 0.016 0.4 0.047 1.188 55 1.28
16X16 0.018 0.457 0.0445 1.13 71.2 1.6
18X18 0.017 0.432 0.0386 0.98 69.4 1.6
20X20 0.02 0.24 0.03 0.76 76 0.56
20X20 0.016 0.33 0.034 0.86 72.2 1.1
20X20 0.014 0.35 0.036 0.92 52.5 1.225
20X20 0.016 0.4 0.034 0.87 46.9 1.6
20X20 0.0177 0.45 0.0322 0.82 41.7 2.025
22X22 0.012 0.3 0.034 0.854 54.76 0.99
24X24 0.014 0.35 0.028 0.708 44.77 1.47
30X30 0.014 0.35 0.0195 0.5 34.6 1.84
30X30 0.012 0.305 0.0213 0.54 63.9 1.4
30X30 0.0094 0.24 0.0243 0.62 72.1 0.84
35X35 0.0079 0.2 0.021 0.526 52.5 0.7
35X35 0.0098 0.25 0.0187 0.475 42.92 1.09
40X40 0.0079 0.2 0.017 0.435 46.9 0.8
40X40 0.01 0.254 0.015 0.38 59.9 1.3
40X40 0.014 0.35 0.011 0.285 20.14 2.45
50X50 0.0055 0.14 0.0145 0.368 72.4 0.48
50X50 0.0079 0.2 0.012 0.308 36.76 1
60X60 0.0047 0.12 0.012 0.303 71.6 0.42
60X60 0.0059 0.15 0.0107 0.273 64.5 0.65
60X60 0.007 0.18 0.0096 0.243 33 0.972
80X80 0.047 0.12 0.0078 0.1975 38.7 0.576
80X80 0.0055 0.14 0.0069 0.117 45.5 0.76
100X100 0.0039 0.1 0.006 0.154 36.76 0.5
100X100 0.0045 0.114 0.0055 0.14 55.1 0.59
100X100 0.004 0.102 0.006 0.152 59.8 0.49
120X120 0.0028 0.07 0.0057 0.147 67.7 0.29
120X120 0.003 0.08 0.0052 0.132 38.7 0.384
150X150 0.0024 0.06 0.0043 0.11 64.7 0.26
150X150 0.0028 0.07 0.0039 0.1 58.8 0.38
165X165 0.0019 0.05 0.0041 0.104 67.5 0.2
180X180 0.0019 0.05 0.0035 0.091 64.5 0.22
180X180 0.0024 0.06 0.0031 0.081 57.4 0.32
200X200 0.0019 0.05 0.003 0.077 60.6 0.24
200X200 0.0024 0.06 0.0026 0.067 52.7 0.35
250X250 0.0016 0.04 0.0024 0.0616 60.6 0.2
270X270 0.0016 0.04 0.0021 0.054 57.4 0.21
300X300 0.0016 0.04 0.0018 0.045 53.5 0.23
325X325 0.0014 0.035 0.0017 0.0432 55.3 0.2
400X400 0.0012 0.03 0.0013 0.0335 52.7 0.18
500X500 0.0009 0.025 0.001 0.0258 50.7 0.15
500X500 0.0012 0.03 0.0008 0.0208 16.76 0.225
635X635 0.0007 0.018 0.0008 0.022 55 0.1
