316 500 Micron Mesh Filter Screen Cloth Food Grade

Name: 316 500 Micron Mesh Filter Screen Cloth Food Grade
Brand: Hebei Reking Wire Mesh CO.,Ltd

Price Negotiable

Price: Negotiate

MOQ: 1 squaremeter

Delivery Time: 5-8 workday

Brand: R&K

Product Description

316 Stainless Steel Woven Wire Mesh 304 500 Micron Filter Screen Cloth Food Grade

material	common material:stainelss steel 304 316 904L 2205 2207 430 310 317 309 304L 316L
special material	spure nickel wire, Ni-cr wire, monel, inconel wire etc.
wire diameter	18um-2500um
weaving type	Plain Weave, twill weave, Plain/Twill Weave, Dutch/Plain/Twill Weave, twill or dutch
mesh counts	1-3500 meshes
micron size	500 400 300 200 100 80 70 25 5 3 micron
technique	woven wire mesh
mesh rolls size	1x30m 1.22x30m
sample	avaliable
surface	flat and bright

Stainless steel mesh according to weaving classification:

1. plain weave

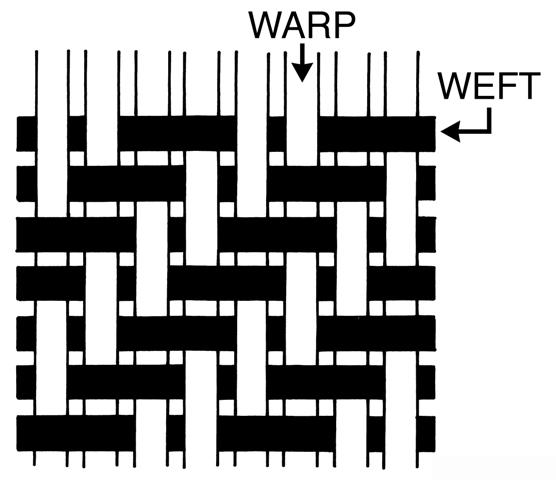

2. twill weave

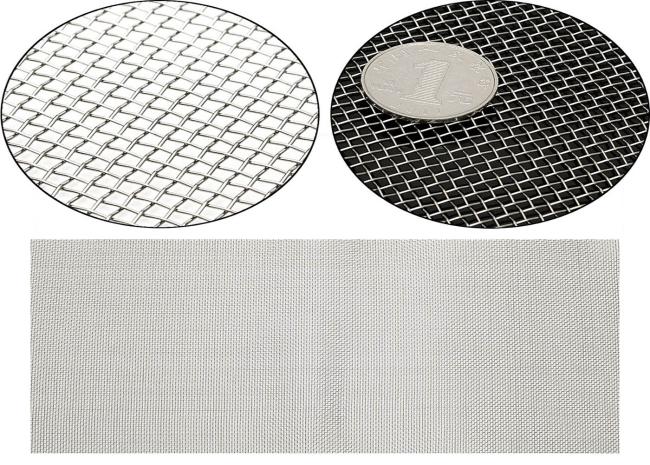

Description and Features of Stainless Steel Filter Screen

Sailess see fiter wire mesh refers to stainless steel woven wire mesh used in fltering lquid, gas and pulp.

The opening can be square, rectangular or special opening. Normall,this kind of wire mesh has standard opening sizes, uniform opening,good permeability and high strength. The raw materials should be chosen according to different environments of applications.

Application:

Stainless steel filter wire mesh is used in petroleum, chemical industry,chemical fiber, food, medicine, frilier, paper-making, airspace, etc.

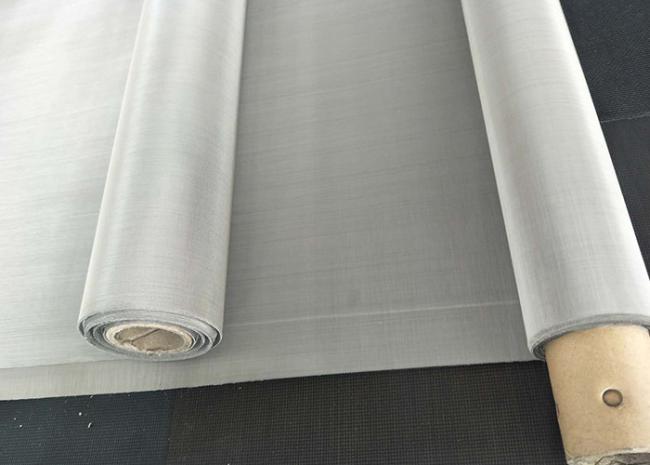

Package of the stainless steel wire mesh

Parameter of stainless steel mesh

mesh	Wire Diameter		Aperture		Open Area	Weight
	Wire Diameter		Aperture		Open Area	Weight
	Inch	MM	Inch	MM	(%)	(kg /Square meter)
1x1	0.08	2.03	0.92	23.37	92	2
2X2	0.063	1.6	0.437	11.1	87.4	2.5
3X3	0.054	1.37	0.279	7.09	83.8	2.7
4X4	0.047	1.19	0.203	5.16	81.2	2.7
5X5	0.041	1.04	0.159	4.04	79.5	2.6
8X8	0.02	0.5	0.105	2.675	71	1
9X9	0.02	0.5	0.091	2.32	67.7	1.1
10X10	0.025	0.64	0.075	1.91	74.9	2
12X12	0.02	0.508	0.063	1.6	75.9	1.5
12X12	0.022	0.55	0.062	1.567	54.8	1.815
14X14	0.02	0.508	0.051	1.3	71.9	1.8
14X14	0.0177	0.45	0.054	1.36	75.14	1.417
16X16	0.016	0.4	0.047	1.188	55	1.28
16X16	0.018	0.457	0.0445	1.13	71.2	1.6
18X18	0.017	0.432	0.0386	0.98	69.4	1.6
20X20	0.02	0.24	0.03	0.76	76	0.56
20X20	0.016	0.33	0.034	0.86	72.2	1.1
20X20	0.014	0.35	0.036	0.92	52.5	1.225
20X20	0.016	0.4	0.034	0.87	46.9	1.6
20X20	0.0177	0.45	0.0322	0.82	41.7	2.025
22X22	0.012	0.3	0.034	0.854	54.76	0.99
24X24	0.014	0.35	0.028	0.708	44.77	1.47
30X30	0.014	0.35	0.0195	0.5	34.6	1.84
30X30	0.012	0.305	0.0213	0.54	63.9	1.4
30X30	0.0094	0.24	0.0243	0.62	72.1	0.84
35X35	0.0079	0.2	0.021	0.526	52.5	0.7
35X35	0.0098	0.25	0.0187	0.475	42.92	1.09
40X40	0.0079	0.2	0.017	0.435	46.9	0.8
40X40	0.01	0.254	0.015	0.38	59.9	1.3
40X40	0.014	0.35	0.011	0.285	20.14	2.45
50X50	0.0055	0.14	0.0145	0.368	72.4	0.48
50X50	0.0079	0.2	0.012	0.308	36.76	1
60X60	0.0047	0.12	0.012	0.303	71.6	0.42
60X60	0.0059	0.15	0.0107	0.273	64.5	0.65
60X60	0.007	0.18	0.0096	0.243	33	0.972
80X80	0.047	0.12	0.0078	0.1975	38.7	0.576
80X80	0.0055	0.14	0.0069	0.117	45.5	0.76
100X100	0.0039	0.1	0.006	0.154	36.76	0.5
100X100	0.0045	0.114	0.0055	0.14	55.1	0.59
100X100	0.004	0.102	0.006	0.152	59.8	0.49
120X120	0.0028	0.07	0.0057	0.147	67.7	0.29
120X120	0.003	0.08	0.0052	0.132	38.7	0.384
150X150	0.0024	0.06	0.0043	0.11	64.7	0.26
150X150	0.0028	0.07	0.0039	0.1	58.8	0.38
165X165	0.0019	0.05	0.0041	0.104	67.5	0.2
180X180	0.0019	0.05	0.0035	0.091	64.5	0.22
180X180	0.0024	0.06	0.0031	0.081	57.4	0.32
200X200	0.0019	0.05	0.003	0.077	60.6	0.24
200X200	0.0024	0.06	0.0026	0.067	52.7	0.35
250X250	0.0016	0.04	0.0024	0.0616	60.6	0.2
270X270	0.0016	0.04	0.0021	0.054	57.4	0.21
300X300	0.0016	0.04	0.0018	0.045	53.5	0.23
325X325	0.0014	0.035	0.0017	0.0432	55.3	0.2
400X400	0.0012	0.03	0.0013	0.0335	52.7	0.18
500X500	0.0009	0.025	0.001	0.0258	50.7	0.15
500X500	0.0012	0.03	0.0008	0.0208	16.76	0.225
635X635	0.0007	0.018	0.0008	0.022	55	0.1
