120 Micron 304 Stainless Steel Woven Wire Mesh For Water Filter

Name: 120 Micron 304 Stainless Steel Woven Wire Mesh For Water Filter
Brand: Hebei Reking Wire Mesh CO.,Ltd

Price Negotiable

Price: Negotiate

MOQ: 1 squaremeter

Delivery Time: 5-8 workday

Brand: R&K

Product Description

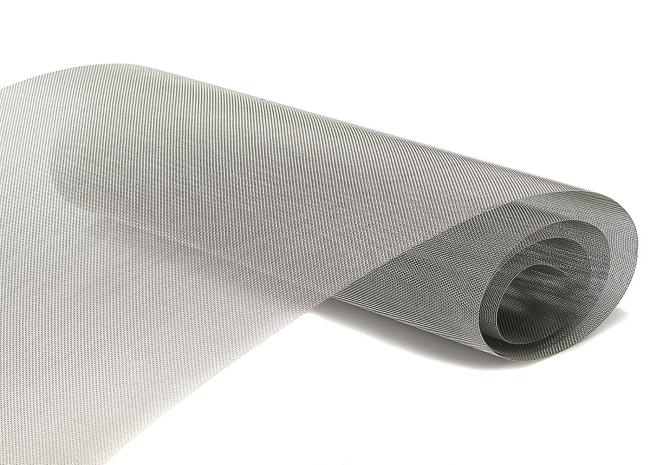

120 micron 304 stainless steel woven wire mesh for water filter

In Twilled Woven Wire Mesh, the weft and warp threads intersect at the top and bottom, and the intersection of the warp threads is reversed at a determined distance to obtain a rigid, stable and strong type of wire mesh fabric.
Crossed twill wire mesh is a fundamental component in the production of filters, food colanders, chemicals, shielding, mosquito nets, etc.

Wire:
Stainless steel wire: Aisi 304, 304L, 316, 316L, 310, 314, 410, 430.
Also available in carbon steel, galvanized steel, aluminum alloy, brass, phosphor bronze and other metal twill weave mesh.

Plain weave is a commonly used weaving method. The warp threads defining the length of the wire mesh and the weft are parallel to the width, intersect each other, alternate one at the top and below, forming a 90° angle between each other.
The solid woven wire mesh can have a square or rectangular opening.

Mai Shi plain weave stainless steel woven mesh/cloth has the characteristics of high filtration efficiency, small pressure loss, constant mesh opening, good dimensional stability, large opening area and good fireproof performance.

Product Application

widely used in aerospace, petroleum, chemical industry
scientific research and transportation industries
electroplating industry for pickling mesh, printing mesh
battery industry and a variety of sophisticated filtration products.

Product Features

Temperature resistance, acid resistance, alkali resistance.
The oil-water separation filter has a temperature resistance of 260 ° C

An acid resistance of 86%, and an alkali resistance of 90%.
Its function is to separate the water and oil in the oil.

It has a small resistance to the oil and allows the oil to pass smoothly.

It has a large resistance to the water. 10KG pressure water cannot pass through, so it plays the role of oil-water separation.

Parameter of stainless steel mesh

mesh	Wire Diameter		Aperture		Open Area	Weight
	Wire Diameter		Aperture		Open Area	Weight
	Inch	MM	Inch	MM	(%)	(kg /Square meter)
1x1	0.08	2.03	0.92	23.37	92	2
2X2	0.063	1.6	0.437	11.1	87.4	2.5
3X3	0.054	1.37	0.279	7.09	83.8	2.7
4X4	0.047	1.19	0.203	5.16	81.2	2.7
5X5	0.041	1.04	0.159	4.04	79.5	2.6
8X8	0.02	0.5	0.105	2.675	71	1
9X9	0.02	0.5	0.091	2.32	67.7	1.1
10X10	0.025	0.64	0.075	1.91	74.9	2
12X12	0.02	0.508	0.063	1.6	75.9	1.5
12X12	0.022	0.55	0.062	1.567	54.8	1.815
14X14	0.02	0.508	0.051	1.3	71.9	1.8
14X14	0.0177	0.45	0.054	1.36	75.14	1.417
16X16	0.016	0.4	0.047	1.188	55	1.28
16X16	0.018	0.457	0.0445	1.13	71.2	1.6
18X18	0.017	0.432	0.0386	0.98	69.4	1.6
20X20	0.02	0.24	0.03	0.76	76	0.56
20X20	0.016	0.33	0.034	0.86	72.2	1.1
20X20	0.014	0.35	0.036	0.92	52.5	1.225
20X20	0.016	0.4	0.034	0.87	46.9	1.6
20X20	0.0177	0.45	0.0322	0.82	41.7	2.025
22X22	0.012	0.3	0.034	0.854	54.76	0.99
24X24	0.014	0.35	0.028	0.708	44.77	1.47
30X30	0.014	0.35	0.0195	0.5	34.6	1.84
30X30	0.012	0.305	0.0213	0.54	63.9	1.4
30X30	0.0094	0.24	0.0243	0.62	72.1	0.84
35X35	0.0079	0.2	0.021	0.526	52.5	0.7
35X35	0.0098	0.25	0.0187	0.475	42.92	1.09
40X40	0.0079	0.2	0.017	0.435	46.9	0.8
40X40	0.01	0.254	0.015	0.38	59.9	1.3
40X40	0.014	0.35	0.011	0.285	20.14	2.45
50X50	0.0055	0.14	0.0145	0.368	72.4	0.48
50X50	0.0079	0.2	0.012	0.308	36.76	1
60X60	0.0047	0.12	0.012	0.303	71.6	0.42
60X60	0.0059	0.15	0.0107	0.273	64.5	0.65
60X60	0.007	0.18	0.0096	0.243	33	0.972
80X80	0.047	0.12	0.0078	0.1975	38.7	0.576
80X80	0.0055	0.14	0.0069	0.117	45.5	0.76
100X100	0.0039	0.1	0.006	0.154	36.76	0.5
100X100	0.0045	0.114	0.0055	0.14	55.1	0.59
100X100	0.004	0.102	0.006	0.152	59.8	0.49
120X120	0.0028	0.07	0.0057	0.147	67.7	0.29
120X120	0.003	0.08	0.0052	0.132	38.7	0.384
150X150	0.0024	0.06	0.0043	0.11	64.7	0.26
150X150	0.0028	0.07	0.0039	0.1	58.8	0.38
165X165	0.0019	0.05	0.0041	0.104	67.5	0.2
180X180	0.0019	0.05	0.0035	0.091	64.5	0.22
180X180	0.0024	0.06	0.0031	0.081	57.4	0.32
200X200	0.0019	0.05	0.003	0.077	60.6	0.24
200X200	0.0024	0.06	0.0026	0.067	52.7	0.35
250X250	0.0016	0.04	0.0024	0.0616	60.6	0.2
270X270	0.0016	0.04	0.0021	0.054	57.4	0.21
300X300	0.0016	0.04	0.0018	0.045	53.5	0.23
325X325	0.0014	0.035	0.0017	0.0432	55.3	0.2
400X400	0.0012	0.03	0.0013	0.0335	52.7	0.18
500X500	0.0009	0.025	0.001	0.0258	50.7	0.15
500X500	0.0012	0.03	0.0008	0.0208	16.76	0.225
635X635	0.0007	0.018	0.0008	0.022	55	0.1
