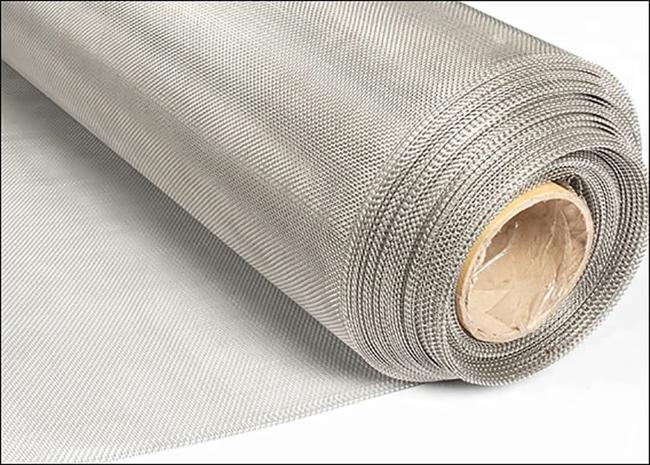

SGS 304 Material Stainless Steel Woven Wire Mesh With 60 Micron Aperture

SGS 304 Material Stainless Steel Woven Wire Mesh With 60 Micron Aperture

Product Description

Wire mesh, also known as wire mesh or wire mesh, is a versatile metal product that can be effectively used in many applications worldwide. Popular uses of wire mesh include stainless steel wire mesh for filters.

Material: Stainless Steel 201,202,301,302,304,304L,316,316L,321. (SS 304 is general material)
Wire Diameter: 0.015-1mm (we have our own wire drawing workshop for serve mesh production)
Mesh No.:3-635 Mesh (' Mesh' means the numbers of hole in one inch line)
Weave type: Plain Weave,Twilled weave,dutch weave.
Roll Width: 1.0m,1.2m,1.3m,1.5m,1.6m,2.0m up to 6m (or cut as your request)
Roll Length: 15m,30m,60m,100m,200m

Product Specification

Product Application

widely used in aerospace, petroleum, chemical industry
scientific research and transportation industries
electroplating industry for pickling mesh, printing mesh
battery industry and a variety of sophisticated filtration products.

Product Features

Temperature resistance, acid resistance, alkali resistance.
The oil-water separation filter has a temperature resistance of 260 ° C

An acid resistance of 86%, and an alkali resistance of 90%.
Its function is to separate the water and oil in the oil.

It has a small resistance to the oil and allows the oil to pass smoothly.

It has a large resistance to the water. 10KG pressure water cannot pass through, so it plays the role of oil-water separation.

Types of Woven Wire Cloth

MARKET GRADE-Wire Cloth Most common specifications of industrial wire cloth. Used in a wide variety of applications. Usually woven in a square weave or twill weave.

MILL GRADE-Wire Cloth Used mostly in sifting and sizing applications. Higher percent of open area compared to market grade, but less than that of tensile bolting. Usually woven in a square weave.

BOLTING GRADE-Wire Cloth Used in sifting and sizing applications and general filtration applications. It has a higher percentage of open area than both market and mill grade. It is typically used when maximum throughput is crucial. Usually woven in a square weave. Sometimes referred to as TBC or Tensile bolting cloth.
