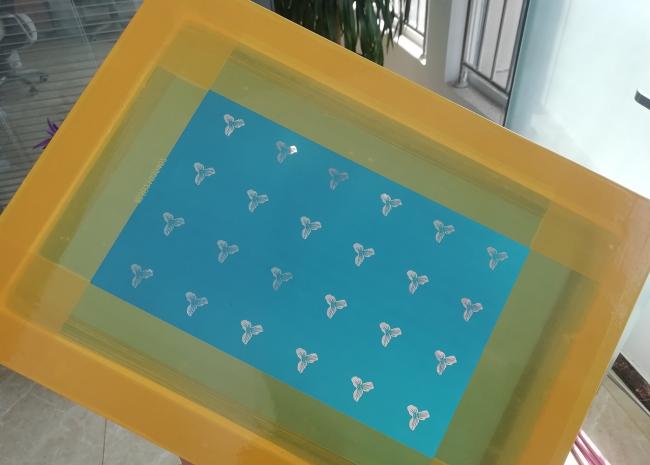

Low Elasticity A4 Aluminum Screen Printing Frame Edge Protection
Aluminum Screen Printing Frame A4 Size Edge Protection Can Be Customized Patterns
Product Introduction
Aluminum screen printing frame, this T series aluminum frames can fulfill customers' needs and are welded for great mesh adhesion. All corners are completely sealed to prevent ink from leaking. One side is specially prepared to make fabric adhesion fast and easy. Optional corner reinforcement is available for any frame size. Larger aluminum extrusions help eliminate frame distortion. Surfaces are anodized for maximum strength and durability.
Aluminum screen printing frame, this T series aluminum frames can fulfill customers' needs and are welded for great mesh adhesion. All corners are completely sealed to prevent ink from leaking. One side is specially prepared to make fabric adhesion fast and easy. Optional corner reinforcement is available for any frame size. Larger aluminum extrusions help eliminate frame distortion. Surfaces are anodized for maximum strength and durability.
Product Specification
| Size Model | General Frame Size(mm) | Dimension of Aluminum(mm) |
| S1 | Less than:200×300 | 18×22×1.2 |
| S2 | 300×400 | 20×30×1.2 |
| S3 | 400×500 | 25×35×1.4 |
| S4 | 500×500 | 25×35×1.4 |
| S5 | 500×600 | 28×43×1.4 |
| S6 | 600×800 | 28×43×1.4 |
| S7 | (800-1200)×(1200-1500) | 28×43×1.6 |
| S8 | biger than 1500mm or high Demanding frame | 30×40×2.5 |
| S9 | 30×40×2.8 | |
| S10 | 35×50×2.4 | |
| S11 | 30×60×2.5 | |
| S12 | 40×70×2.5 | |
| S13 | 44×88×2.5 | |
| S14 | Garment printing frame | 30×30×1.2 |
| S15 | 30×30×1.4 | |
| S16 | 25×40×1.2 | |
| S17 | 30×40×1.2 | |
| S18 | 30×50×1.8 | |
| S19 | 35×60×2.0 |
Product Features:
Light weight frame for quick and easy handling.
Aluminum is made to our specific alloy for high resistance, maximum strength and hardness
Easy clean up and long lasting durability
Corners are carefully welded to provide leak free frames
Mesh count:18-420mesh/inch or 7~165 mesh/cm
Product Application:
Our screen printing frames are feature of smooth appearance, free of deformation,
and durable in use. Argon arc welding technique to ensure watertight and ground
flat. Stretched with top quality low elongation polyester mesh and bonded with
highest chemical resistance glue. Revolving-Riveting stretching technology to insure optimal tension.
We have a very good price advantage and quality assurance and timely delivery rate
Aluminum frame widely used for M&R,TAS,MHM and Lucky automatic textille screen printing machine and other printing machine
|
1. Apply to textile screen printing industry |
|
2. Apply to large advertisement industry |
|
3. Apply for auto-printing machine |
|
4. Apply to: High precise LCD, high precise multi-layered circuit board and electronic printing ect. |
|
5. Apply to textile screen printing industry |
