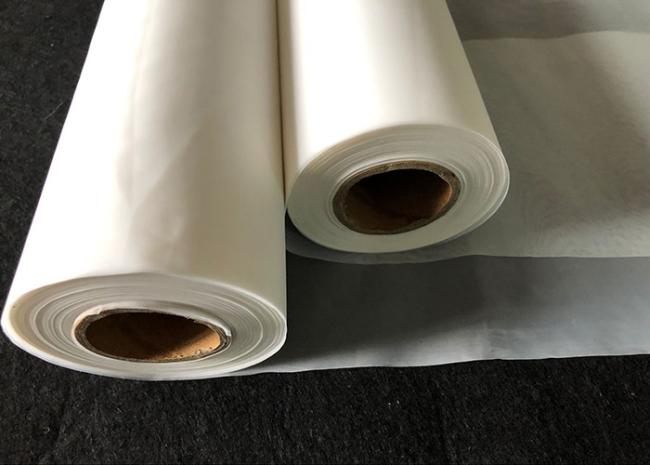

0.2 M Width Filter Tube Plastic Nylon 50 Micron Screen Mesh Roll
0.2 M Width Filter Tube Plastic Nylon 50 Micron Screen Mesh Roll

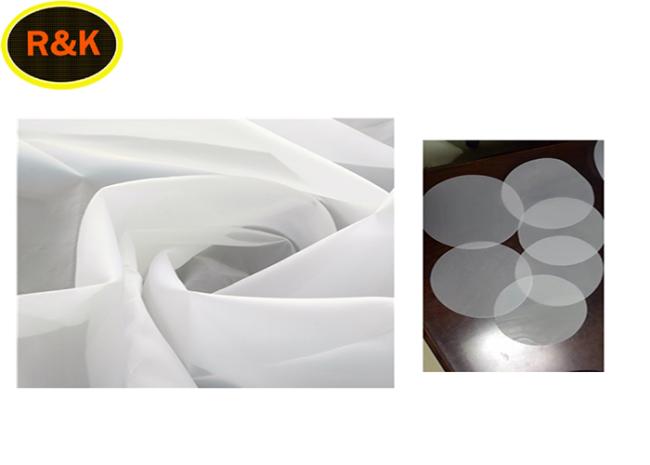

Product Introduction and feature:
The nylon screen material is environmentally friendly. Non-doped recycled materials, not easy to deform, long service life, environmentally friendly and healthy, up to food-grade standards
Corrosion-resistant, durable, nylon mesh has the characteristics of high toughness, good elasticity, oil resistance, abrasion resistance, etc.
Wide range of applications, suitable for liquid filtration, powder filtration, paint filtration, ink filtration and other oily products filtration, suitable for alcohol filtration, food filtration, industrial filtration, etc.
Nylon mesh filtering is performed by linear codes in the mesh size range from 7 microns to 1920 microns. Linear code widths range from a minimum of 36 inches to a maximum of 60 inches, depending on mesh size and inventory. In addition to mesh openings, the following table also provides the following features: opening area, number of meshes (threads per inch), and thread diameter. This monofilament woven mesh material is nylon 6/6, which has effective wear resistance and alkali resistance.
Softening point: 170 ° C to 230 ° C (338 ° F to 446 ° F)
Melting point: 210 ° C to 250 ° C (410 ° F to 482 ° F)
Product Application
Office building, meeting room, hospital, shopping mall, stadium, airport etc. Large civil building ventilation system;
General plant ventilation and air conditioning system;
Clean room ventilation and air conditioning system in the primary filter
Product Specification
| Nylon Filter Mesh(Nylon filter cloth/Nylon woven mesh) | |||||||
| Fabric number |
Mest count |
Thread diameter |
Mesh opening |
Open surface |
Fabric thickness |
Weight | |
| NO. | cm mesh/inch | micron | micron | % | micron | g/m2 | |
| JPP5 | 5 | 12 | 500 | 1500 | 56 | 850 | 271 |
| JPP6 | 6 | 16 | 400 | 1267 | 58 | 780 | 208 |
| JMG7 | 7 | 18 | 350 | 1079 | 57 | 675 | 186 |
| JPP8 | 8 | 20 | 350 | 900 | 52 | 685 | 212 |
| JPP9 | 9 | 24 | 250 | 860 | 60 | 455 | 145 |
| JPP10 | 10 | 25 | 300 | 700 | 49 | 576 | 195 |
| JPP12 | 12 | 30 | 250 | 583 | 49 | 470 | 162 |
| JPP12 | 12 | 35 | 300 | 533 | 41 | 585 | 234 |
| JPP14 | 14 | 40 | 300 | 414 | 34 | 595 | 273 |
| JPP16 | 16 | 40 | 200 | 425 | 46 | 370 | 139 |
| JPP16 | 16 | 50 | 250 | 375 | 36 | 485 | 217 |
| JPP20 | 20 | 50 | 150 | 350 | 49 | 375 | 98 |
| JPP20 | 20 | 50 | 200 | 300 | 36 | 385 | 173 |
| JPP24 | 24 | 60 | 150 | 267 | 41 | 285 | 117 |
| JPP28 | 28 | 70 | 120 | 237 | 44 | 215 | 87 |
| JPP30 | 30 | 76 | 120 | 213 | 41 | 225 | 94 |
| JPP32 | 32 | 80 | 100 | 213 | 46 | 165 | 69 |
| JPP36 | 36 | 90 | 100 | 178 | 41 | 178 | 78 |
| JPP40 | 40 | 100 | 100 | 150 | 36 | 190 | 87 |
| JPP43 | 43 | 110 | 80 | 152 | 43 | 135 | 60 |
| JPP48 | 48 | 120 | 80 | 130 | 38 | 145 | 62 |
| JPP56 | 56 | 140 | 60 | 120 | 44 | 85 | 44 |
| JPP59 | 59 | 150 | 60 | 110 | 42 | 98 | 46 |
| JPP64 | 64 | 160 | 60 | 100 | 37 | 105 | 50 |
| JPP72 | 72 | 180 | 50 | 90 | 41 | 82 | 39 |
| JPP80 | 80 | 200 | 50 | 75 | 36 | 90 | 43 |
| JPP100 | 100 | 250 | 40 | 60 | 36 | 65 | 35 |
| JPP120 | 120 | 305 | 40 | 43 | 25 | 70 | 42 |
| JPP130 | 130 | 330 | 40 | 37 | 23 | 75 | 45 |
