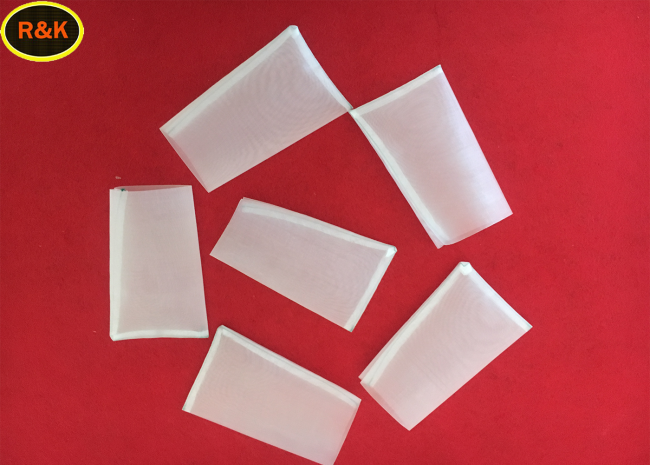

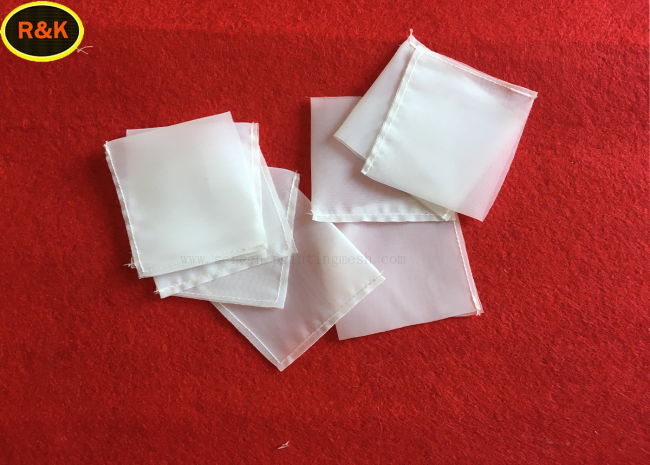

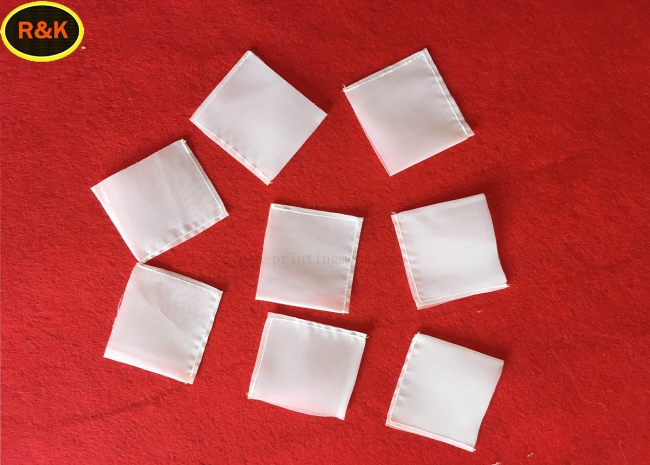

Custom 25 37 75 90 100 120 160 Micron Nylon Rosin Mesh Filter Bags
Custom 25 37 75 90 100 120 160 Micron Nylon Rosin Mesh Filter Bags
Description of the nylon tea bag:
Material: 100% nylon
Weave:Plain weave,Twill weave
Opening: 25 37 75 90 100 120 160 Micron
Thread color: white,green,or as our request.
Bag size: 2.5 inch * 4.5 inch,2.4.5inch,3.*6inch,2*4inch,
Bag style: interversion
Feature:Premium quality food grade nylon bag with double reinforced stitching.
Application:water filter,fruit juice,milk filer and so on.
Standard bag size for rosin press filter: 1.75*5 inch,2*4 inch,2.5 *4 inch,2.5 * 4.5 inch 3*5 inch.
Application of the nylon mesh bags:
Juice filter,
Milk fiter,
Rosin filter,
Oil filter,
Lids,
Specifications of the nylon mesh:
| Model | Specification (/cm) | Mesh count (mesh/inch) | Thread Diameter (um) | Mesh opening (um) | Open Area(%) | Thickness (um) | Theoretic ink volume (cm3/m2) |
| NL5/1500 | 5 | 13 | 500 | 1500 | 56 | 1000 | 308 |
| NL6/1267 | 6 | 15 | 400 | 1267 | 58 | 840 | 228 |
| NL7/1079 | 7 | 18 | 350 | 1079 | 57 | 640 | 209 |
| NL8/900 | 8 | 20 | 350 | 900 | 52 | 645 | 232 |
| NL9/861 | 9 | 24 | 250 | 861 | 60 | 460 | 145 |
| NL10/750 | 10 | 25 | 250 | 750 | 56 | 530 | 148 |
| NL12/533 | 12 | 30 | 300 | 533 | 41 | 495 | 256 |
| NL14/514 | 14 | 35 | 200 | 514 | 52 | 380 | 135 |
| NL16/425 | 16 | 40 | 200 | 425 | 46 | 400 | 155 |
| NL16/375 | 16 | 40 | 250 | 375 | 36 | 420 | 240 |
| NL17/388 | 17 | 42 | 200 | 388 | 44 | 380 | 160 |
| NL18/366 | 18 | 45 | 220 | 366 | 37 | 400 | 207 |
| NL20/300 | 20 | 50 | 200 | 300 | 36 | 375 | 190 |
| NL24/267 | 24 | 60 | 150 | 267 | 41 | 305 | 130 |
| NL28/207 | 28 | 70 | 150 | 207 | 34 | 278 | 150 |
| NL30/213 | 30 | 76 | 120 | 213 | 41 | 230 | 105 |
| NL32/213 | 32 | 80 | 100 | 213 | 46 | 240 | 77 |
| NL36/178 | 36 | 90 | 100 | 178 | 41 | 195 | 86 |
| NL40/150 | 40 | 100 | 100 | 150 | 36 | 192 | 95 |
| NL44/127 | 44 | 110 | 100 | 127 | 31 | 175 | 105 |
| NL48/128 | 48 | 120 | 80 | 128 | 38 | 150 | 73 |
| NL56/120 | 56 | 142 | 60 | 120 | 44 | 110 | 48 |
| NL59/110 | 59 | 150 | 60 | 110 | 42 | 98 | 50 |
| NL64/96 | 64 | 163 | 60 | 96 | 38 | 120 | 55 |
| NL72/89 | 72 | 183 | 50 | 89 | 41 | 90 | 44 |
| NL80/75 | 80 | 203 | 50 | 75 | 36 | 93 | 48 |
| NL88/74 | 88 | 224 | 43 | 74 | 42 | 65 | 34 |
| NL96/64 | 96 | 244 | 43 | 64 | 38 | 76 | 37 |
| NL100/60 | 100 | 254 | 43 | 60 | 36 | 78 | 39 |
| NL104/56 | 104 | 264 | 43 | 56 | 34 | 79 | 35 |
| NL110/48 | 110 | 280 | 43 | 48 | 28 | 79 | 38 |
| NL120/43 | 120 | 305 | 43 | 43 | 27 | 80 | 46 |
| NL130/34 | 130 | 330 | 43 | 34 | 20 | 85 | 29 |
| NL140/33 | 140 | 355 | 38 | 33 | 21 | 85 | 28 |
Advantages:
Solvent resistant
Wear resistance
Low coefficient of friction
Food grade
Easy to clean
