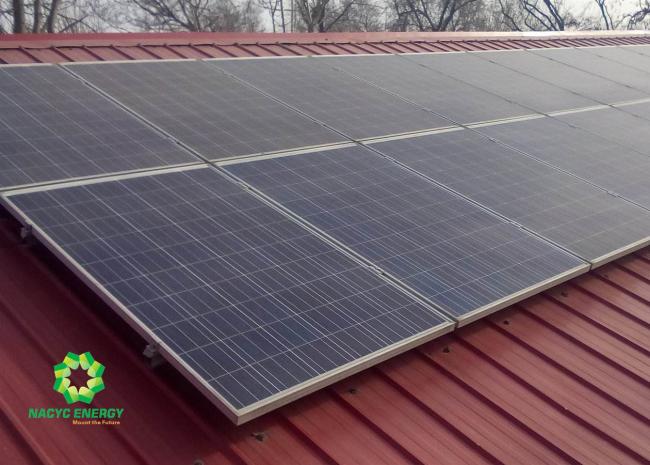

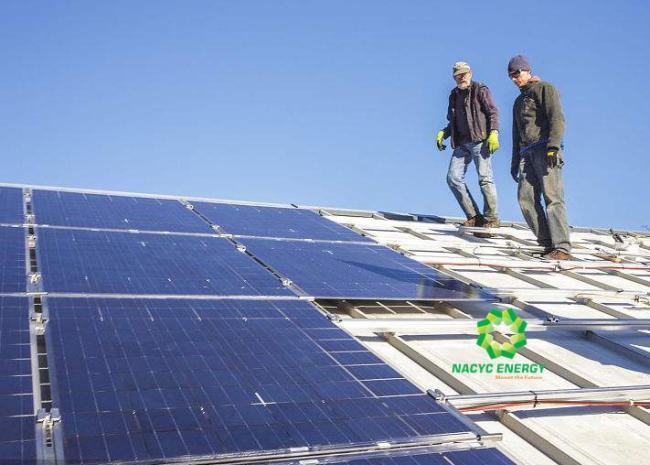

Solar Panel Mounted and Mounting Systems for Tin Roof or PV Solar Tin Roof Mount - HeliosSR

Key Benefits:

1. Easy Installation:
The innovative NacycEnergy solar short rails and clamps have greatly simplified the installation of PV modules.The System can be installed with a single Hexagon Key and standard tool kits. Pre-assembled and pre-cut processes will highly prevent corrosion and save your installation time and labor cost.

2. Great Flexbilitity

3. High Accuracy
Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.

4. Maximum Lifespan:
All components are made of quality extruded aluminium and stainless steel.The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.

5. Guaranteed Durability.

Technical Data:

Necessary info. for us to design and quote

1. What is your pv panels dimension?_____mm Length x_____mm Width x____mm Thickness
2. How many panel are you going to mount? _______Nos.
3. What kind of flat roof do you have?__________(Tin/concrete roof floor)
4. What is your planned pv assmebly block? ________Nos. in a row
5. How is weather there,such as wind speed and snow load?___m/s anit-wind speed and____KN/m2 snow load
6. Tilt Angle?_____degree
