90W Tempered Glass Monocrystalline Solar Panel
Price:
Negotiable
MOQ:
3 Kilowatts
Delivery Time:
Shipped in 15 days after payment
Brand:
NACYC ENERGY
Product Description
10 Years Monocrystalline Panel Power Solar PV Panel 75-90w High Transmission Tempered Glass
Product usage
1. Application: Home&Residental; Commericial; Industrial; Large scale development
2. Solar system type: on grid solar system; off grid solar system; Hybrid solar system

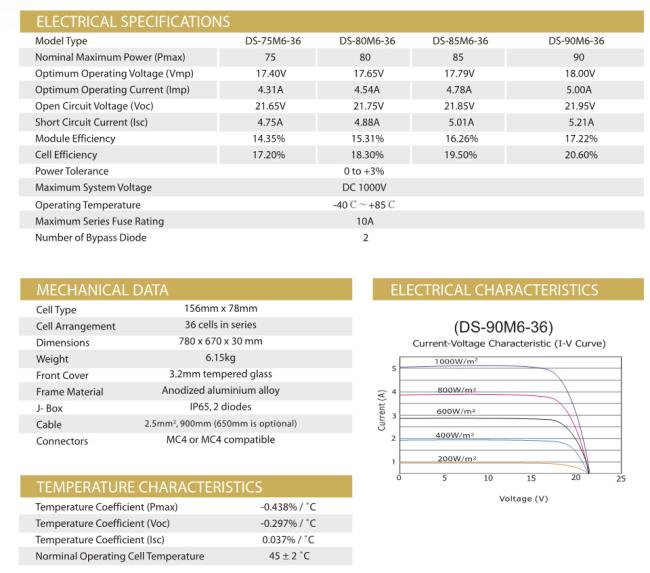

Product parameters
| Solar size | 780mm*670mm*30mm |
| Weight | 6.15KGS |
| Framed | Anodized aluminium alloy |
| Module efficiency | 20.6% |
| Front Glass | High transmission tempered glass |
| standards | CE; SGS; TUV |
| Junction box | IP65, 2 diodes |
| Connector | MC4 or MC4 Compatible |
| Cable | 2.5mm² (IEC) Length: 900mm |
| Warranty | Ten years warranty |
| Duratiom | More than 20 years |
Product advantage
1. 10Ys Products Warranty; 25Ys Warranty on power output; PID Resistant; Positive tolerance 0/+5w guaranteed;
2. MBB The optimized umber and width of main gate lines,Maximize the light receiving area of components and Reduce component power consumption;
3. Designed for high voltage systems of up to 1500 VDC, increasing the string length of solar systems and saving on BoS costs;
4. Microcrack resistant Double glass structure enhance reliability, triple EL tested of high quality control;
4. Microcrack resistant Double glass structure enhance reliability, triple EL tested of high quality control;
5. Entire module certified to with stand extreme wind (2400 Pa) and snow loads (5400 Pa);
6. All the modules are sorted and packaged by amperage, reducing mismatch losses and maximizing system output.
