Marine Docking Rubber Balloon Airbag Ship Launching Boat Lift Air Bags
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
5- 7days
Brand:
FLORESCENCE
Product Description

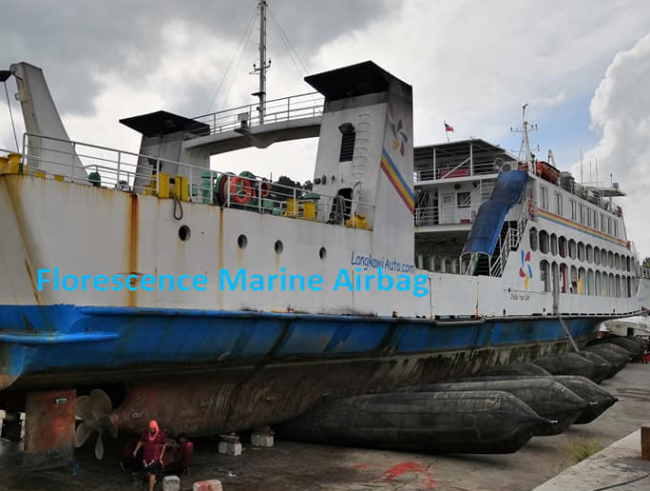

Docking rubber balloon airbag for ship lauching
Docking rubber airbags, also called rubber roller, docking air bags, ship salvage airbag, launching pontoon , now have become one convenient ship launching method in many shipyards, especially where slipways are not available.
Advantages of docking rubber airbag
1)Material :Natural rubber+dipped tyre-cord fabric(enhanced type)
2)Anti-ageing rubber formula ,rubber content more than 57%;the life span is longer than other docking rubber airbags
3)Inflatable,can deflate packaging, convenient for shipping;
4)The valve/lug on both side are all anti-corrosion, not easy to rust
5)Improved air valve,high performance air tight
6)Thicken outer rubber layer ,not easy to damage
2)Anti-ageing rubber formula ,rubber content more than 57%;the life span is longer than other docking rubber airbags
3)Inflatable,can deflate packaging, convenient for shipping;
4)The valve/lug on both side are all anti-corrosion, not easy to rust
5)Improved air valve,high performance air tight
6)Thicken outer rubber layer ,not easy to damage

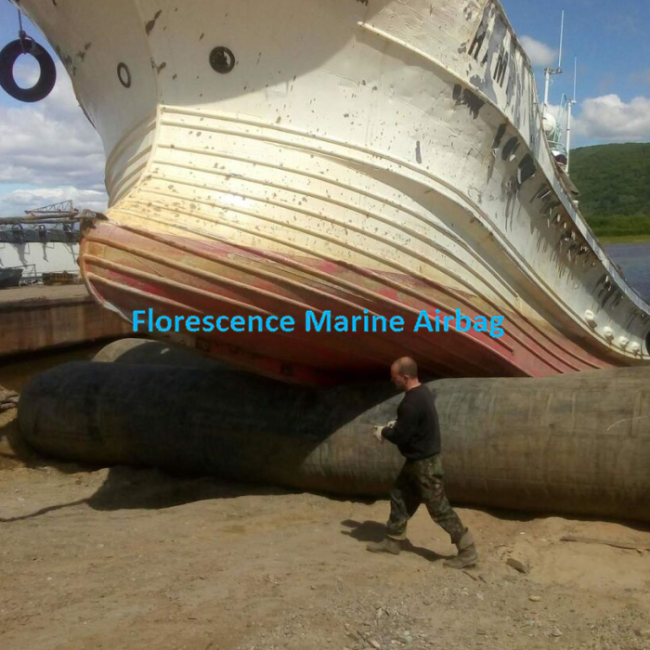

The process of ship launching by airbags

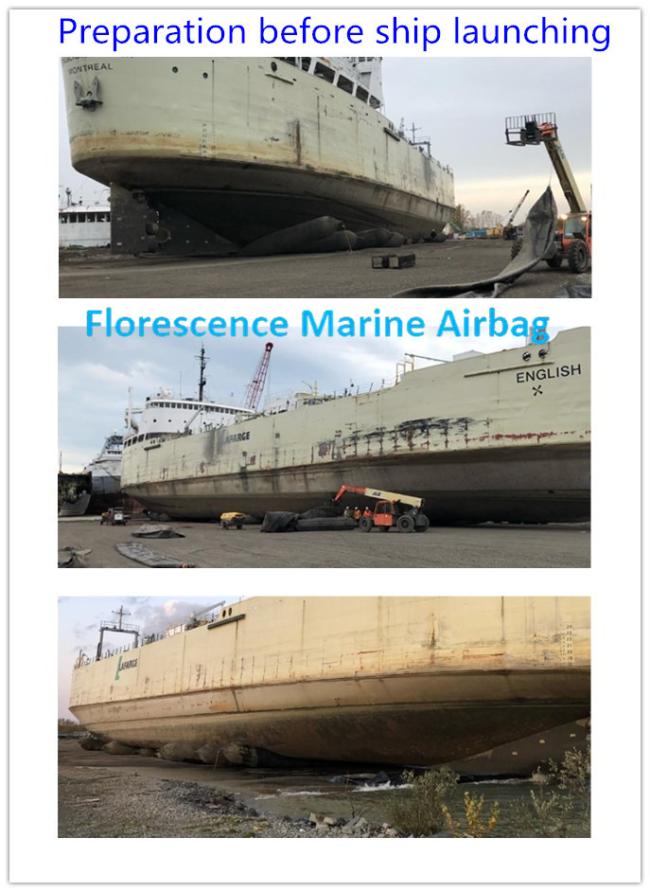

1.Preparing for launching ramp way and all needed equipments.
Select and check suitable docking rubber airbag size and quantity for boat, tide up the launching ramp way, fix the ship by winch and anchors.
2.Taking out all support blocks under stern and middle one by one, and put in airbags.
3.Taking out all support blocks under the prow. Open winch and release the cable, let the ship launch to water.
4.Checking all the deckhouse after launching, retrieving all air bags at meantime.
Select and check suitable docking rubber airbag size and quantity for boat, tide up the launching ramp way, fix the ship by winch and anchors.
2.Taking out all support blocks under stern and middle one by one, and put in airbags.
3.Taking out all support blocks under the prow. Open winch and release the cable, let the ship launch to water.
4.Checking all the deckhouse after launching, retrieving all air bags at meantime.
Attentions during docking rubber airbag use for ship launching
1.Docking rubber airbags must be checked if the pressure is normal before used.

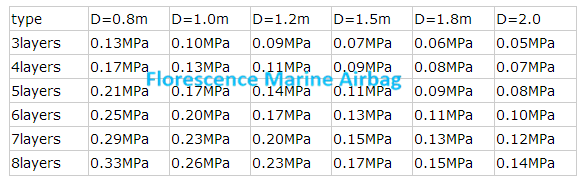

2.The working pressure of docking rubber airbag when used should compare the data in the bearing pressure capacity from mustn't use excessive pressure.
3.It must clean the sharp and protrude hard objects on the ground which could touch with the rubber airbag body before the rubber airbag being used, in case it punchures the surface of the airbag.
4.The distance of the docking rubber airbags under the vessel should no less than 1.5m, the distance after compression should at least 0.8m, in case it occurs the rubber airbag overlapping phenomenon when the boat launching.
2.The working pressure of docking rubber airbag when used should compare the data in the bearing pressure capacity from mustn't use excessive pressure.
3.It must clean the sharp and protrude hard objects on the ground which could touch with the rubber airbag body before the rubber airbag being used, in case it punchures the surface of the airbag.
4.The distance of the docking rubber airbags under the vessel should no less than 1.5m, the distance after compression should at least 0.8m, in case it occurs the rubber airbag overlapping phenomenon when the boat launching.

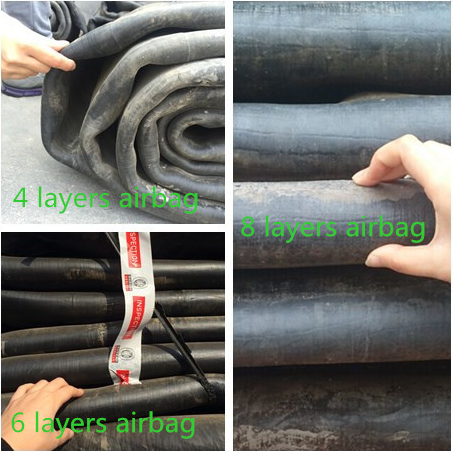

Different layers of docking rubber airbag
