●Different airbag size stock available, quick delivery
●Provide repair kit and on site instruction
●Long time service life can be reused many times
●Wear resistance and anti aging
●Good raw material and cord fabric
●Do no harm to the environment. Time & money saving
●Need no more than air compressors, winches and ropes
●Marine airbags are much cheaper and portable than other methods
Pneumatic Rubber Lifting Inflatable Marine Airbags For Ship Launching
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
5-7 days
Brand:
FLORESCENCE
Product Description
Ship Launching Airbags
1. Material: Natural Rubber and Nylon Cord
2. Fittings: Inflation Valve, Pressure Gauge, Pulling Ring
3. Layers Range: 3-12 Layers
4. Size Range: Dia 0.6-2.8m, Len 5.0-25m
5. Service Life: 6-8 Years
6. Certs: CCS, BV, ISO, RS, ABS, Etc
Structure of pneumatic rubber lifting inflatable marine airbags
Please the picture 1 of Florescence inflatable rubber airbag structure . It is composed by airbag body and terminal iron part. The airbag body is composed by natural rubber and strength fiber material through vulcanization processing; The terminal iron part is made of cast iron, it is combined closely with the bag body; One end is for pulling when move the airbag, and the other end is for charging and discharging the air. All the fittings in picture 2 and 3 will be supplied with airbags for free.
Materials
An airbag is to be constructed of an outer rubber layer, one or more synthetic-tyre-cord layers, and an inner rubber layer. The arrangement of synthetic-tyre-cord reinforcement layers is shown in the picture below, all materials shall be vulcanized firmly.
| Size Range:(airbag size depends on ship size) | |
| Diameter(D) : | From 0.6m to 2.8m |
| Effective Length(EL) : | From 5.0m to 28.0m |
| Total Length(TL) : | From 7.0m to 31.0m |
| Standard Number of Layers: | Usually 3-12 layers |
Features
Application

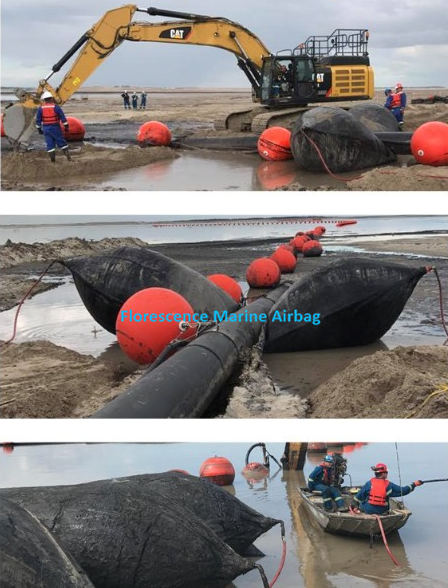

1.For ship launching/ docking/ landing
2.For alvaging sunken ship or heavy objects
3.For hoisting and transporting heavy goods up to 10,000 tonnes structure on land
4.For floating use purpose as improve the draft.
5.Pneumatic rubber core for architecture engineering (culvert making)
2.For alvaging sunken ship or heavy objects
3.For hoisting and transporting heavy goods up to 10,000 tonnes structure on land
4.For floating use purpose as improve the draft.
5.Pneumatic rubber core for architecture engineering (culvert making)
