Vessel Air Filled Marine Rubber Airbag For Ship Launching And Lifting
Air Filled Marine Rubber Airbag for Ship Launching and Lifting for Vessel with High Quality
Introduction of ship docking airbag
Ship docking airbag also known as rubber airbag, ship salvage airbag, inflatable airbag, ship lifting bag, air balloon, made by rubber & multi layer of rubber-dipped tyre fabric. Airbags are widely used in launching and landing ship/ boat
essel, lifting and moving heavy goods, salvaging stranded boats. Ship docking airbags are very popular with shipyard, ship owner, and marine supplies company now.
Structure of ship docking airbag

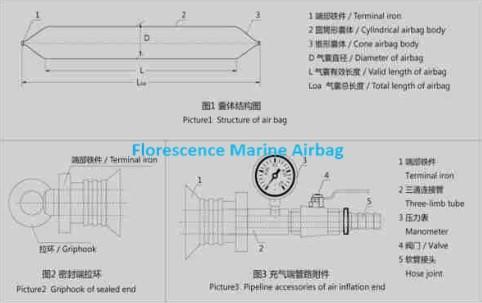

Please see the picture 1 of " FLORESCENCE" ship docking airbag structure. It is composed by airbag body and terminal iron part. The airbag body is composed by natural rubber and strength fiber material through vulcanization processing; The terminal iron part is made of cast iron, it is combined closely with the bag body; One end is for pulling when move the airbag, and the other end is for charging and discharging the air. All the fittings in picture 2 and 3 will be supplied with airbags for free.
Specification of ship docking airbag
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
| 1 | 10 | 5-6 | 0.07-0.10 |
| 1 | 12 | 5-6 | 0.07-0.10 |
| 1 | 15 | 5-6 | 0.07-0.10 |
| 1.2 | 10 | 5-6 | 0.08-0.12 |
| 1.2 | 12 | 5-6 | 0.08-0.12 |
| 1.2 | 15 | 5-6 | 0.08-0.12 |
| 1.5 | 12 | 5-8 | 0.08-0.16 |
| 1.5 | 15 | 5-8 | 0.08-0.16 |
| 1.5 | 18 | 5-8 | 0.08-0.16 |
| 1.5 | 20 | 4-8 | 0.08-0.16 |
| 1.8 | 12 | 5-8 | 0.08-0.16 |
| 1.8 | 15 | 5-8 | 0.08-0.15 |
| 1.8 | 18 | 5-8 | 0.08-0.15 |
| 1.8 | 20 | 5-8 | 0.08-0.15 |
| 1.8 | 24 | 5-8 | 0.08-0.15 |
| 2.0 | 18 | 5-8 | 0.08-0.15 |
| 2.0 | 20 | 6-10 | 0.08-0.18 |
| 2.0 | 24 | 6-10 | 0.08-0.18 |
| 2.5 | 18 | 7-10 | 0.07-0.13 |
| 2.5 | 20 | 7-10 | 0.07-0.13 |
| 2.5 | 24 | 7-10 | 0.07-0.13 |
Advantage of ship docking airbags:
1.Best quality raw material
The raw material of our ship docking airbags are natural rubber and nylon cord fabric.
The gel content of the rubber is very high and the thickness of the ship airbags is made evenly.
Because of the very good flexibility of the rubber and the very good toughness of the nylon cord fabric,the airbags can play a role of a buffer for the ship .The airbags have strong wear resistance and endurance anti-aging ability, so have long service life.
2.The whole winding technology
Ship docking airbags are made by whole winding technology.The body of the airbags do not have any joint,just like a silkworm cocoon.So the airbags have good tightness when inflatable and are not easy to blew out.
3.Advanced framework design

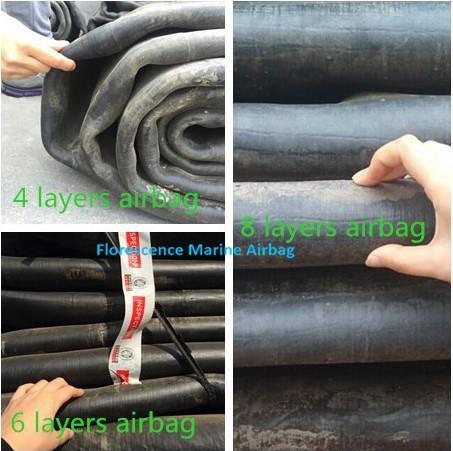

Different layers of ship docking airbag
Application of ship docking airbag
1.Ship launching and landing.
2.On land construction.
3.Ship salvage.
4.Objects lifting..
5.Caission floating.
6.Marine engineering.

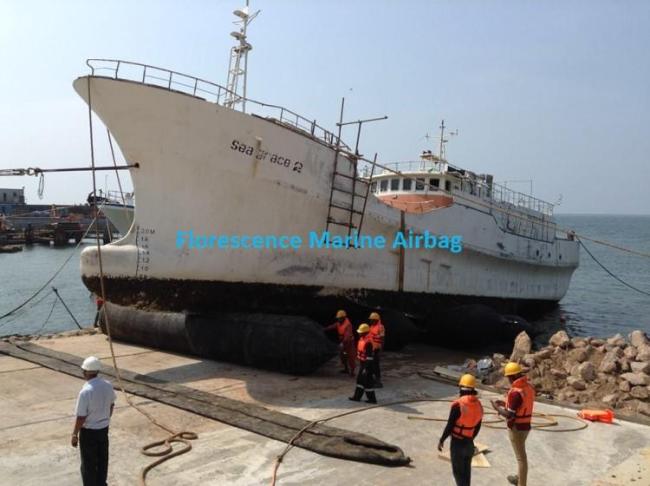

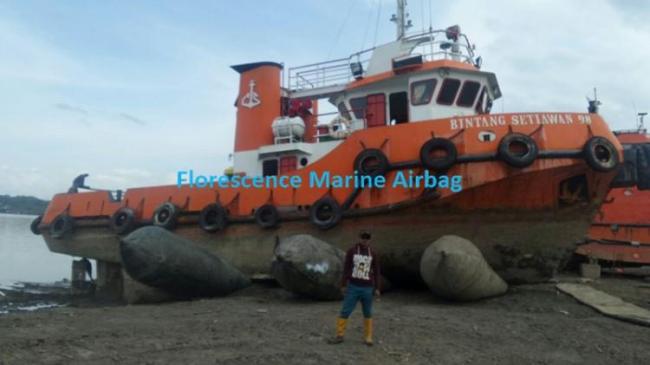

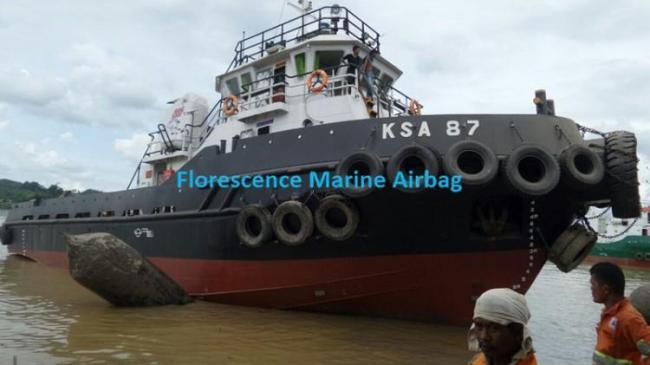

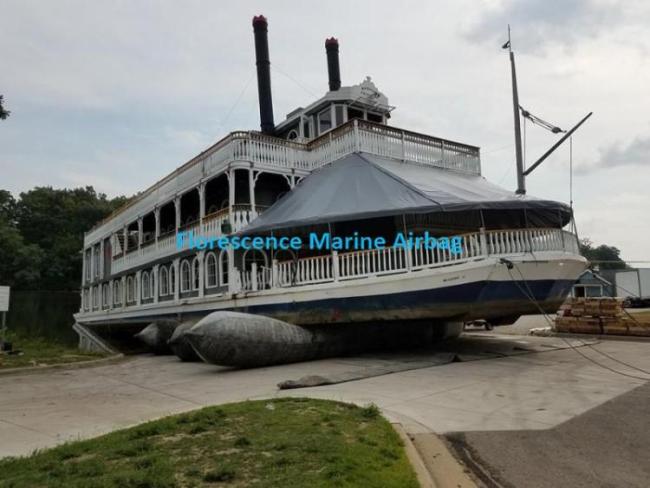

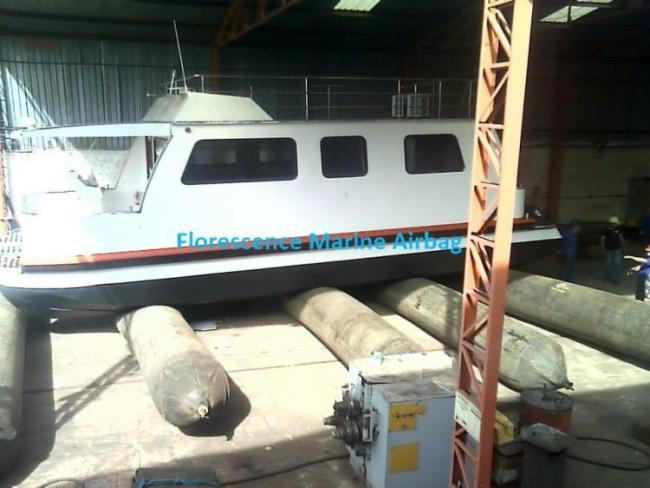

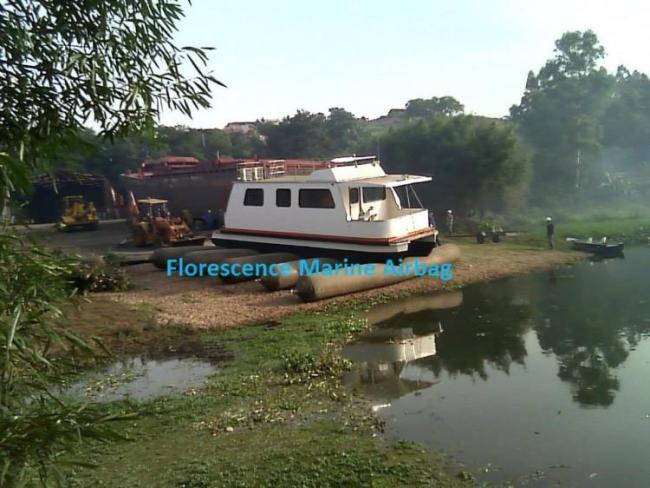

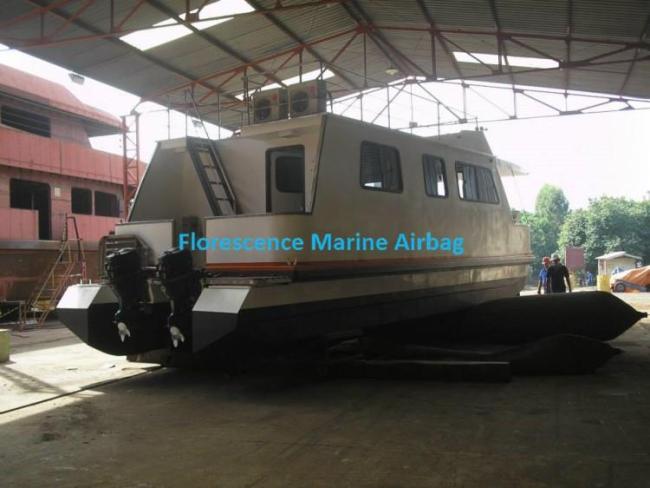

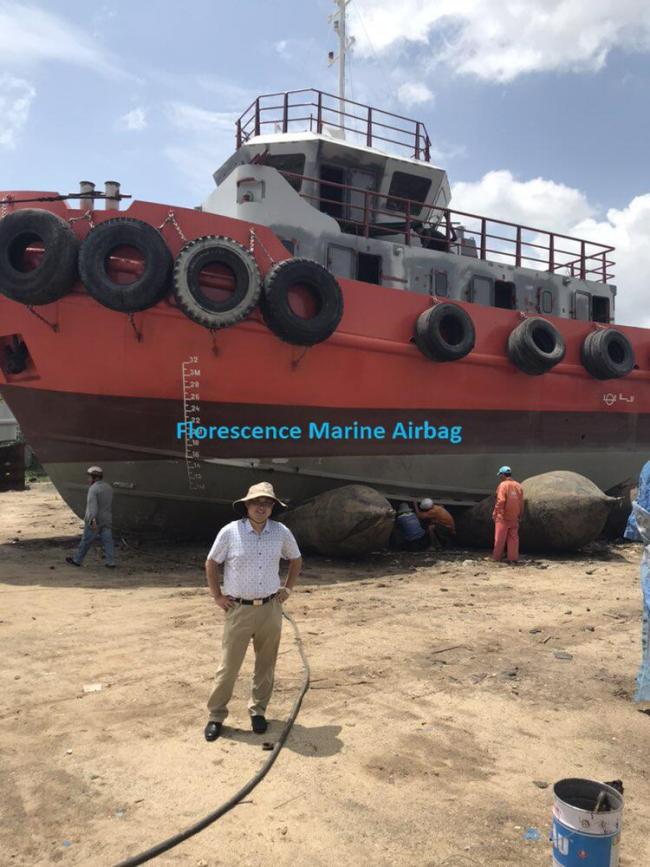

Usage photos of ship docking airbag
1. Brazil customer bought our Dia1.0m L11m 4layers airbags in 2012, and now still use well for landing and launching.
2. Indonesia customer used our Dia1.5m L14m airbags for launching.
