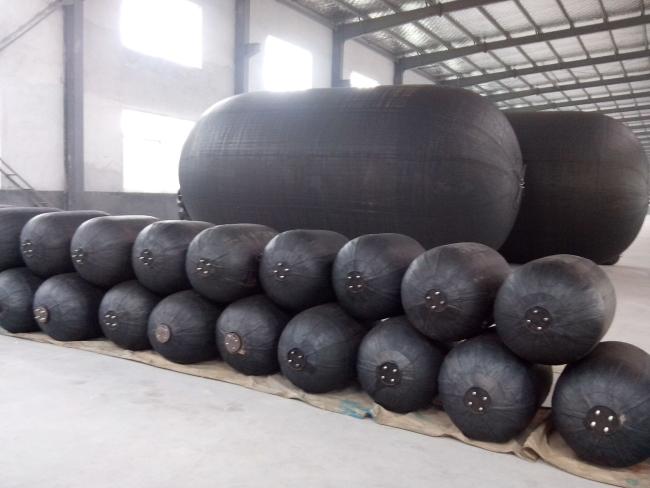

Easy Installation Large Pneumatic Rubber Fenders For Boat Weight 15000 - 200000T
Suitable For Boat Weight From 15000-200000 t Of Pneumatic Marine Rubber Fender
Application of rubber fender:
* pneumatic rubber fender has widespread application as following:
* Ship to ship,ship to wharf
* Oil tankers, container vessels
* Luxury yachts, ocean platforms
* Larges shipyards
* Fender system
* Military ports ,warship
* Larger under water foundations of bridges, etc.
Advantages of marine rubber fender:
* Absorb more energy,less reverse impact on the ships
* More flexible ,easy installation
* Long term service life
* Not being bent out of shape under pressure
* Many different sizes and shape available
* Pass CCS,DNV,ABS
* Durable, practical and economical
Technical performance of marine rubber fender
Specification | 0.05Mpa(Initial pressure 0.05Mpa) | (Initial pressure 0.08Mpa) | ||||
| Weight(kg) | Reaction force(KN) | GEA | Weight | Reaction force(KN) | GEA | |
| 0.5X1.0 | 25 | 674 | 6 | 25 | 85 | 8 |
| 0.6X1.0 | 32 | 74 | 8 | 32 | 98 | 11 |
| 0.7X1.5 | 50 | 137 | 17 | 50 | 180 | 24 |
| 1.0X1.5 | 80 | 182 | 32 | 80 | 239 | 45 |
| 1.0X2.0 | 100 | 257 | 45 | 125 | 338 | 63 |
| 1.2X2.0 | 120 | 297 | 63 | 165 | 390 | 88 |
| 1.35X2.5 | 165 | 427 | 102 | 226 | 561 | 142 |
| 1.5X3.0 | 315 | 579 | 153 | 370 | 761 | 214 |
| 1.7X3.0 | 405 | 639 | 191 | 436 | 840 | 287 |
| 2.0X3.5 | 590 | 875 | 308 | 632 | 1150 | 430 |
| 2.5X4.0 | 1050 | 1381 | 663 | 1110 | 1815 | 925 |
| 2.5X5.5 | 1333 | 2019 | 943 | 1410 | 2653 | 1317 |
| 3.0X5.0 | 1880 | 2000 | 1050 | 2155 | 2709 | 1571 |
| 3.0X6.0 | 2160 | 2488 | 1312 | 2470 | 3292 | 1888 |
| 3.3X4.5 | 2020 | 1884 | 1175 | 2300 | 2476 | 1640 |
| 3.3X6.0 | 2300 | 2783 | 1675 | 2600 | 3652 | 2338 |
| 3.3X6.5 | 2700 | 3015 | 1814 | 3080 | 3961 | 2532 |
| 3.3X10.6 | 4403 | 5257 | 3067 | 5020 | 6907 | 4281 |
| 4.5X9.0 | 6554 | 5747 | 4752 | 7470 | 7551 | 6633 |
| 4.5X12 | 8739 | 7984 | 6473 | 9960 | 10490 | 9037 |
| Note:The weight is the fender body weight(without tires and chain),with weight error of ±10% and counterforce error of ±10% | ||||||
Notes about marine rubber fender
* Frequently check whether the fender body si damaged and whether the pressure is normal,and the valve core must be replaced every six moths
* The steel wire should wrap the rubber pipe,when trying steel wire to pneumatic rubber fender in case the fender is stabbed
* The surface or subject next to the pneumatic rubber fender can’t be hard and sharp-pointed in case the pneumatic rubber fender is stabbed
* The accessories and jip’s nuts can’t be loose when testing the internal pressure
* The rope net should be reliable,the steel wire used for hanging metal parts and the hook link can’t be tied in disorder.
