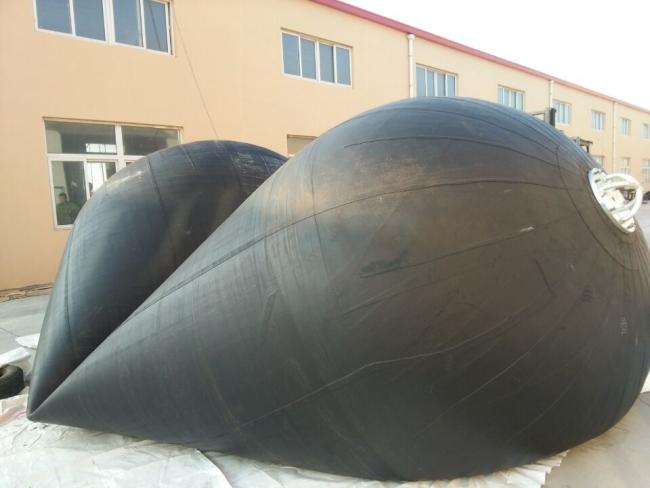

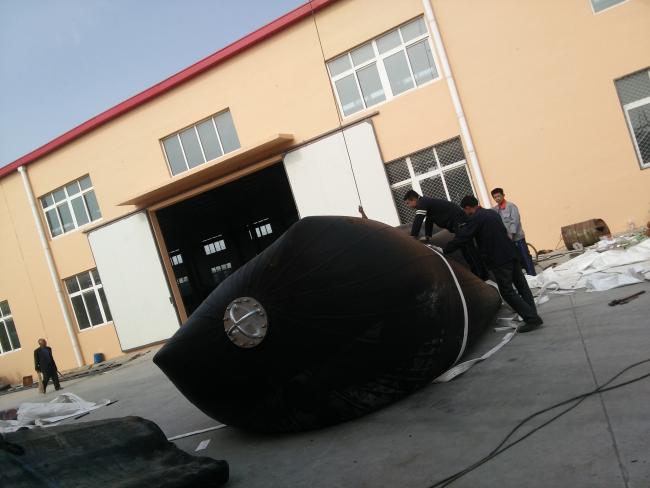

Grey Color Of Boat Rubber Floating Fender Marine Rubber Fender
Grey Color Of Boat Rubber Floating Fender Marine Rubber Fender
In order to produce the qualified and famous China Brand of pneumatic fenders , Florescence RUBBER invested the advanced production and test equipments, and invited the foreign experienced engineers of pneumatic fenders, which ensure all pneumatic fenders are manufactured comply with ISO17357:2002. Therefore, Florescence
-RUBBER is the unique manufacturer of ISO17357 qualified Pneumatic Fenders in China.
In order to protect your maritime values, Florescence-RUBBER strongly recommends the use of ISO certified Pneumatic Fenders while performing the high quality needed for safe berthing during ship to ship operations involving bunkering or discharging of oil or gas, and ship to port operation.
Advantages of marine rubber fender:
* Absorb more energy,less reverse impact on the ships
* High shock absorption,low counterforce and enhance port ability
* Produce according to ISO17357:2002 completely
* Many different sizes and shape available
* Optional end fittings for the better suitable of applications
Technical performance of marine rubber fender
|
Specification DXL(m) |
0.05Mpa(Initial pressure 0.05Mpa) | (Initial pressure 0.08Mpa) | ||||
| Weight(kg) | Reaction force(KN) |
GEA (KJ) |
Weight (kg) |
Reaction force(KN) |
GEA (KJ) |
|
| 3.0X5.0 | 1880 | 2000 | 1050 | 2155 | 2709 | 1571 |
| 3.0X6.0 | 2160 | 2488 | 1312 | 2470 | 3292 | 1888 |
| 3.3X4.5 | 2020 | 1884 | 1175 | 2300 | 2476 | 1640 |
| 3.3X6.0 | 2300 | 2783 | 1675 | 2600 | 3652 | 2338 |
| 3.3X6.5 | 2700 | 3015 | 1814 | 3080 | 3961 | 2532 |
| 3.3X10.6 | 4403 | 5257 | 3067 | 5020 | 6907 | 4281 |
| 4.5X9.0 | 6554 | 5747 | 4752 | 7470 | 7551 | 6633 |
| 4.5X12 | 8739 | 7984 | 6473 | 9960 | 10490 | 9037 |
| Note:The weight is the fender body weight(without tires and chain),with weight error of ±10% and counterforce error of ±10% | ||||||
All dimensions are approximate
* “Guaranteed energy absorption” represents the guaranteed energy absorption at 60% deflection.
* Tolerance of reaction force and deflection at guaranteed energy absorption are as follows: Reaction ±10% Deflection ±10%
* Each reaction and energy absorption are measured under static condition
* Testing pressure rate indicates the testing pressure at factory
*Weight of fender body and net may vary by ±10%
FAQ
Q1: What’s the material of your products?
A: Our raw material is natural rubber, and rubber-dipped nylon cord fabric
Q2: What’s your delivery time and payment terms?
A: Delivery time is according to customers’ size and order qty.The payment terms you could choose are T/T,L/C at sight,Western Union and so on.
Q3: How can I get samples from you?
A: We are honored to provide you samples for check quality.Customers just confirm freight collect and then we could send out the sample by FedEx,DHL,UPS,TNT and so on.
Q4: What’s certificates can your company provide?
A: We can provide CCS,ABS,DNV,LR,BV certificates.
