Length 3.5m Marine Rubber Fender Double Layers Yokohama Pneumatic Fender
Length 3.5m Of Marine Rubber Fender / Yokohama Pneumatic Fender

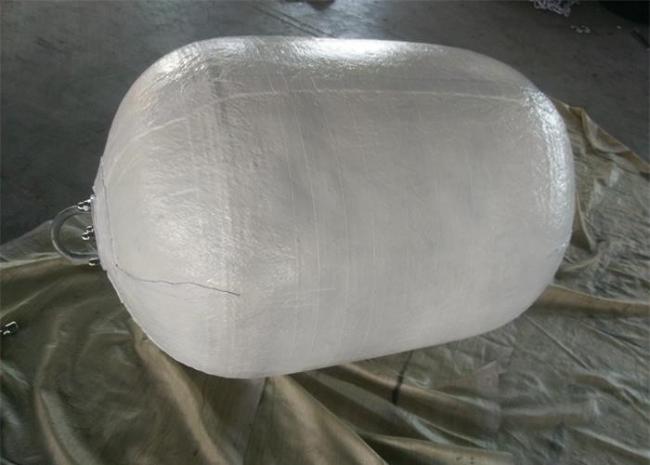

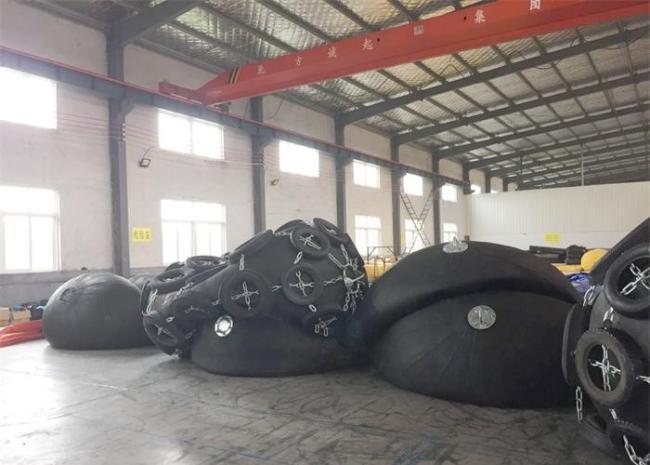

FL Pneumatic rubber fender (for ship use) uses compressed-air as medium to absorb the energy from impact. The sides of ships are softer when berthing, so the result of collision-avoiding is achieved.
In order to produce the qualified and famous China Brand of pneumatic fenders , FL RUBBER invested the advanced production and test equipments, and invited the foreign experienced engineers of pneumatic fenders, which ensure all FL pneumatic fenders are manufactured comply with ISO17357:2002. Therefore, FL-RUBBER is the unique manufacturer of ISO17357 qualified Pneumatic Fenders in China.
Advantages of FL marine rubber fender:
* Absorb more energy,less reverse impact on the ships
* More flexible ,easy installation
* Long term service life
* Not being bent out of shape under pressure
* Good quality have been checked by many buyers
* Optional tire and chain,can provide chain with hot galvanizing or stainless steel(304,312,316)
* Optional end fittings for the better suitable of applications
Technical performance of marine rubber fender
|
Specification DXL(m) |
0.05Mpa(Initial pressure 0.05Mpa) | (Initial pressure 0.08Mpa) | ||||
| Weight(kg) | Reaction force(KN) |
GEA (KJ) |
Weight (kg) |
Reaction force(KN) |
GEA (KJ) |
|
| 0.5X1.0 | 25 | 674 | 6 | 25 | 85 | 8 |
| 0.6X1.0 | 32 | 74 | 8 | 32 | 98 | 11 |
| 0.7X1.5 | 50 | 137 | 17 | 50 | 180 | 24 |
| 1.0X1.5 | 80 | 182 | 32 | 80 | 239 | 45 |
| 1.0X2.0 | 100 | 257 | 45 | 125 | 338 | 63 |
| 1.2X2.0 | 120 | 297 | 63 | 165 | 390 | 88 |
| 1.35X2.5 | 165 | 427 | 102 | 226 | 561 | 142 |
| 1.5X3.0 | 315 | 579 | 153 | 370 | 761 | 214 |
| 1.7X3.0 | 405 | 639 | 191 | 436 | 840 | 287 |
| 2.0X3.5 | 590 | 875 | 308 | 632 | 1150 | 430 |
| 2.5X4.0 | 1050 | 1381 | 663 | 1110 | 1815 | 925 |
| 2.5X5.5 | 1333 | 2019 | 943 | 1410 | 2653 | 1317 |
| 3.0X5.0 | 1880 | 2000 | 1050 | 2155 | 2709 | 1571 |
| 3.0X6.0 | 2160 | 2488 | 1312 | 2470 | 3292 | 1888 |
| 3.3X4.5 | 2020 | 1884 | 1175 | 2300 | 2476 | 1640 |
| 3.3X6.0 | 2300 | 2783 | 1675 | 2600 | 3652 | 2338 |
| 3.3X6.5 | 2700 | 3015 | 1814 | 3080 | 3961 | 2532 |
| 3.3X10.6 | 4403 | 5257 | 3067 | 5020 | 6907 | 4281 |
| 4.5X9.0 | 6554 | 5747 | 4752 | 7470 | 7551 | 6633 |
| 4.5X12 | 8739 | 7984 | 6473 | 9960 | 10490 | 9037 |
| Note:The weight is the fender body weight(without tires and chain),with weight error of ±10% and counterforce error of ±10% | ||||||
Application of FL rubber fender:
FL pneumatic rubber fender has widespread application as following:
* Ship to ship,ship to wharf
* Oil tankers, container vessels
* Luxury yachts, ocean platforms
* Larges shipyards
* Fender system
* Military ports ,warship
* Larger under water foundations of bridges, etc
FAQ
Q1: What’s the material of your products?
A: Our raw material is natural rubber, and rubber-dipped nylon cord fabric
Q2: Are you factory or trading company?
A: Qingdao Florescence Co.,Ltd is the company and factory,located in Jimo City,Qingdao,near to Qingdao port and Qingdao airport,which is convenient for transportation.
Q3: What’s your delivery time and payment terms?
A: Delivery time is according to customers’ size and order qty.The payment terms you could choose are T/T,L/C at sight,Western Union and so on.
Q4: How can I get samples from you?
A: We are honored to provide you samples for check quality.Customers just confirm freight collect and then we could send out the sample by FedEx,DHL,UPS,TNT and so on.
