Solid Float Oil Containment Boom 280 - 900mm Draft For Protecting Water Environment
Oil Containment Boom / Solid Float Oil Boom Used For Protecting Water Environment

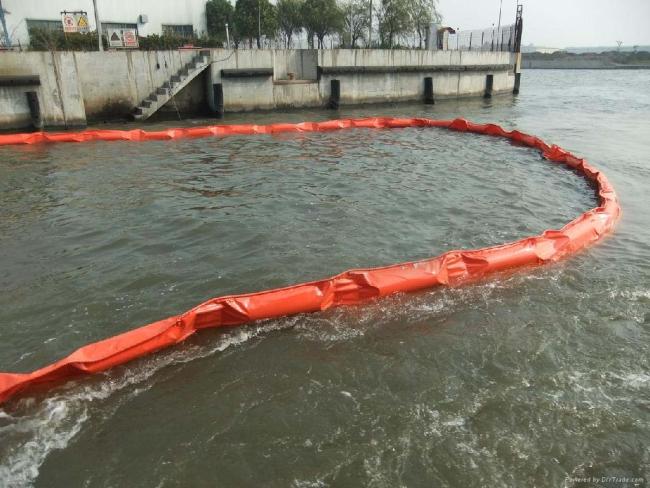

The solid float PVC boom is an economical,universal boom for intercepting oil spills and other floats on waters.It is suitable for the permanent,stationary deployment on waters.Thanks to its fast deployment and easy operation,it is widely used on rivers,harbors,lakes,offshore oil platforms and other waters.
The solid float rubber boom is the important equipment used for preventing spilled oil on waters from diffusion and transfer.It is widely used for long-term deployment on waters such as open seas,bays,harbors,rivers,oil platform,oil-refining plants,oil piers,oil storage,sea bathing area,etc. And also for emergent use in oil spilling accidents.
Features of solid float oil boom
* Fabricated with special rubber cloth to form the main body,thus high intensity,long endurance,oil-resistance,erosion-resistance are ensured.
* Covered with fire-proof rubber cap which can meet the requirment of fire-resistance.
* Special designed solid floats with higher buoyancy,boom body uniformly exerted by forces,with higher overall strength and good vertical stability.
* Make choice among zipper counterweight,cast iron counterweight and built-in counterweight according to demands.
* Noctilucent or colored outer rubber cover would be decorated according to customer’s requirement.
Technical data of oil containment boom
|
Model |
WGJ 600 |
WGJ 800 |
WGJ 1000 |
WGJ 1200 |
WGJ 1400 |
WGJ 1600 |
WGJ 1800 |
|
Overall height (mm) |
600 |
800 |
1000 |
1200 |
1400 |
1600 |
1800 |
|
Freeboard(mm)
|
210 |
280 |
340 |
400 |
460 |
520 |
590 |
|
Draft(mm) |
280 |
360 |
480 |
600 |
700 |
810 |
900 |
|
Max working tensile strength (KN) |
50 |
80 |
100 |
110 |
120 |
140 |
160 |
|
Max wave Height to withstand(m)
|
1.5 |
2 |
2 |
2.5 |
3 |
3 |
3.5 |
|
Max wind speed to withstand(m/s) |
10 |
15 |
15 |
20 |
20 |
20 |
25 |
|
Max current speed to withstand(KN) |
1.5 |
2 |
2.5 |
3 |
3 |
3-4 |
3-4 |
Structure of solid float PVC boom
1. Boom's membrane is PVC double-face coated reinforced fabric.
2. A top ridge rope, middle reinforced belts and a bottom balance chain on boom sections bear the longitudinal load, and form concaves both at the skirt in water and at the flexible sections above water when boom is in a current.
3. There are flexible sections between cross beam like floaters.
4. Easily connect boom sections, which are 20m long.
5. Every section has anchor seats.
Performance of solid float PVC boom
1. High strength and long service life. Because of reasonable force distribution on the boom.
2. Good oil stagnant ability with due to nice posture and high stability in water.
3. Good wave-response. Easy deployment.
4. Easy to clean and maintain.
