OkTower Self Powered Solar CCTV Surveillance Tower With 4m Hand Crank Telescopic Mast Support 4G Starlink Remote Video

Price Negotiable
Price: Negociate
MOQ: 1
Delivery Time: 20~25 working days
Brand: OKAF
Product Description
PRODUCT OVERVIEW

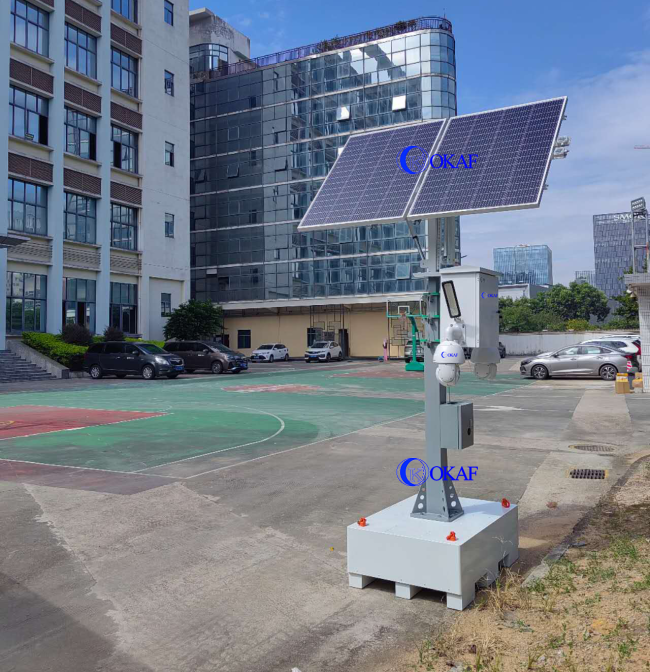

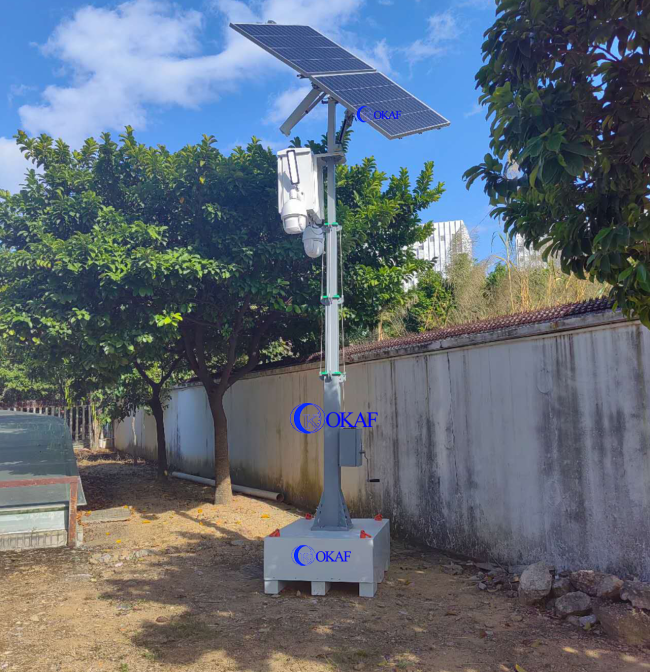

Solar CCTV Tower

OK-PRO2 Solar CCTV light tower combines high-powered LED lighting with 24/7 surveillance. Ideal for remote area, disaster zones, traffic monitoring, crowd control,mining and quarrying operations,remote livestock monitoring, remote parking lots and storage yards and construction sites etc Self power with solar and battery, rapid deployment, and zero infrastructure needed.Low maintenance cost. OKAF Solar cctv light tower is built with high-resolution digital cameras support night vision with led flood lights for night working. Built in 4G, support remote real time video,remoe intercom. The camera tower can deter intruders, burglars, and other unlawful pursuits, improve the security and safety of a region. The integral alarm also notifies in case of suspicious tasks.

Advantages of OKAF Solar cctv tower

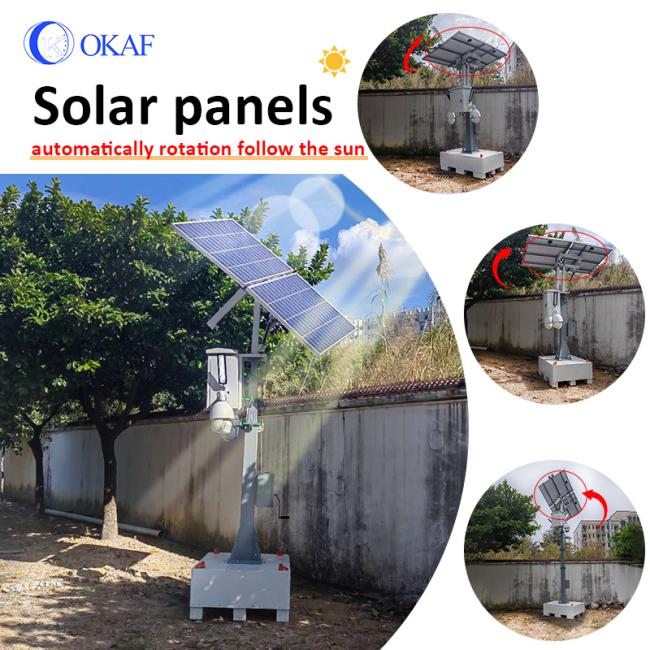

● 2*210W solar Power, total 420W. Solar panel follow the sun automatically rotation.make full used of solar energy, uninterrupted operation, solve the issue no electricity at site.
● Built in maintenance-free deep cycle lithium battery, automatic recharging.
● 4m manual lifting telescopic mast, top payload weight up to 100KG. Wider monitoring range.
● High resolution 1920x1080P, 25x optical zoom PTZ cameras, 50m night vision.
● 4G transmission, remote real time viewing and control. Integration with cloud platform and mobile/desktop app (iOS/Android/Windows), Multi-user access with permissions (Admin / Operator / Viewer).
● With speaker,ability to play live voice messages or pre-recorded warnings automatically during alarms.
● Support intrusion detection, cross-border detection, mobile detection etc

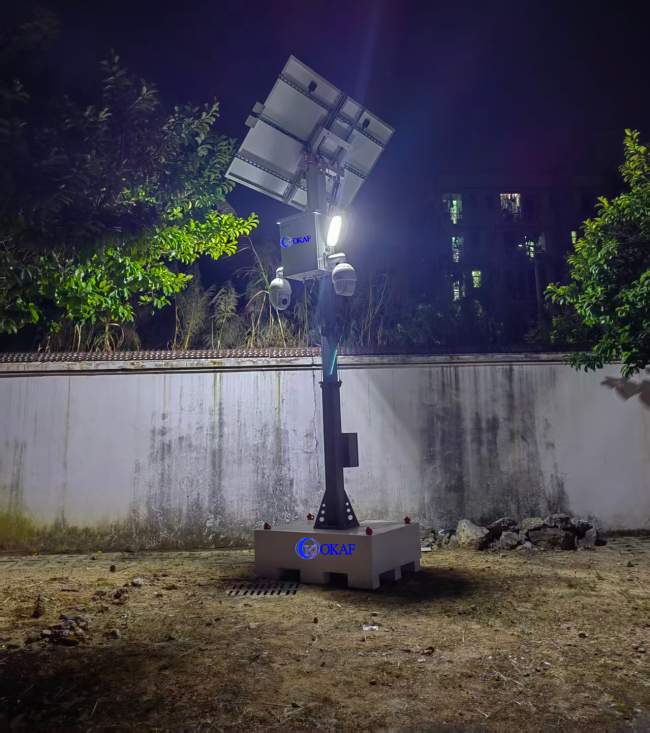

● Integrated LED floodlights with high luminosity,2X50W, total 100W. LED lights brightness and angle are adjustable. Automatic night/day mode switching via light sensor.
● Easy to transport with forklift and lifting ring.
● Extended AI function: face recognition,safety helmet detection, jacket detection, smoking detection etc.
APPLICATIONS
TECHNICAL DATA
CCTV Surveillance system
Cameras
2 HD PTZ cameras
Resolution
1920×1080P
Optical zoom
25x
Pan/Tilt range
Pan: 360°,Tilt: -25°~+90°
Network port
RJ45 10Base-T/100Base-TX PoE(IEEE802.3af)
Audio mode
External active microphone or linear input, linear output
Network protocol
IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP
Dual stream
Support
Intelligent feature
intrusion detection, cross-border detection, mobile detection etc
Video input
4 channels network 1080P, Aviation connector
Video output
1 way Composite Video Output +1 CH VGA output, 1.0Vp-p, 75Ω
Preview function
1 way ,4 screen splicing preview,support manual/ Event trigger full screen display function
Video resolution
Support 1080P,720P,D1,HD1, CIF optional , support up to 4 way 1080P.
Audio input
4 way,Aviation connector
Audio output
1 way
Compression format
G.711, rate 8KB/s
Video storage
Supports large-capacity 2.5-inch hard disk


Communication interface

2-way RS232, expandable credit card machine, fuel sensor, LED advertising screen, etc.
2 way 485 interface,Expandable PTZ
2way CAN bus interface
Wireless transmission
4G wireless transmission function, TDD-LTE, FDD-LTE
Remote access
Integration with cloud platform and mobile/desktop app (iOS/Android/Windows), Multi-user access with permissions (Admin / Operator
/ Viewer).
Speaker
External speaker, ability to play live voice messages or pre-recorded warnings automatically during alarms.
Alarm management
Intrusion detection, line crossing
LED flood lights
Power consumption
2x50W total 100W. Brightness adjustable
Light senor
Automatic night/day mode switching via light sensor
Luminous flux
10000 Lumen
Color temperature
5000~6500K
Lighting color
white light or green light optional
Power supply
Solar panel
2*210W total 420W Monocrystalline silicon solar panel
Solar controller
MPPT Solar controller, 95% efficiency
Solar panel rotation
Automatically follow the sun rotation
Battery type
Lithium battery
Battery capacity
1Pcs DC12V 200Ah, total 2400Wh
Telescopic mast
Mast type
Square manual telescopic mast
Material
Stainless steel
Mast height
Extended height 4m, retracted height 1.4m, 4 sections
Maximum diameter
120x120mm
Minimum diameter
60x60mm
Top payload weight
Maximum 100KG
Mast weight
67KG
Wind speed
19m/s
Tower
Material
Hot - Dip Galvanized (Anti - Rust)
Dimension(In Transit)
1200*800*1793mm
Dimension(On Deployment)
1200*800*4393mm
Weight
200 kg complete device.
Forklift base
Easy to transport with forklift.
Lifting Ring
4x lifting Ring
Wind resistance
Class 8 winds work normally Class 12 winds are not destroyed
Operating temperature
-30℃~+65℃
Protection grade
IP65 waterproof



Below link is a video of solar cctv tower OK-PRO2



https://www.youtube.com/watch?v=vB1K63EXr10​
