CMOS Sensor Vehicle Mounted Cctv Cameras IP66 Aluminum Alloy Pan Range 360° Roof Trailer
Vehicle LED PTZ Camera Serials
Feature:
1,Acceptable to a variety signals of PTZ ,IP/SDI/AHD/TVI/CVI/Analog.
2, IP PTZ supports IP and analog dual-outputs, dual control via RS485 and RJ45 network port to control PTZ camera
3, Solve the lighting conditions-frees fast target in the dark and search by strong light.
4, it is composed by strong light, lighting distance is greater than 200 meters
5 ,Adopt high-power LED from USA with quality and stability.
6, Adopt worm gears drive method
7,Support coordinates and angles to accept instructions
8,PTZ has a built-in Voltage Regulator Module ,protection device for stability and durability.
Description:
1, High strength alloy aluminum crust, shock resistance, corrosion protection in all weather conditions.
2, PTZ support real-time Hikvision, SONY, SAMSUNG, Hitachi, and other brands HD camera chipest.
3, PTZ has super seismic characteristics, this system is especially good for Vehicle monitoring or prison monitoring.
4, PTZ has a built-in decoder, integrate multiple protocols.
5,360°Continuously rotation ,upward angle +90°～ -90°,no blind spot.
6, Vehicle power voltage-input range: DC10.5V~DC18V
Specifications
| PTZ Camera Parameters | ||
| Pan preset speed | 60°/S(manual control 0°～60°/S) | |
| Tilt preset speed | 30°/S(manual control 0°～30°/S) | |
| Pan range | 360° | |
| Tilt range | ＋90°～－90° | |
| Electric machinery | stepping motor (worm and gear) | |
| Preset positions | 256 Preset positions | |
| Control Way | RS485(IP and SDI PTZ camera support RS485 and RJ45 dual- control protocol) | |
| Baud rate | 2400Bps~19200Bps | |
| Control protocol | Pelco-D/Pelco-P | |
| Chroma | 850nm | |
| Searchlighting Distance | 200m | |
| light power | 10W*9pcs LED | |
| Audio input/output | Support | |
| Alarm Input/ Output | Support | |
| Operating temperature | －35°C~＋65°C | |
| IP Grade | IP66 | |
| Power Supply | DC10.5V~DC16V(6A) | |
| Weight | 10KG(net weight) | |
| IP chipest | ||
| Model | 20IP | 30IP |
| Imaging sensor | 1/2.8inch “Exmor”CMOS | 1/2.8inch“Exmor”CMOS |
| Effective pixels | 2.1 mega pixels | 3 mega pixels |
| Lens | 20X optical zoom f=4.7 -94.0mm (18.20.30X optional) | |
| Min.illumination | 0.095 lUx (F1.6,ICR open) | |
| Frame rate | 25FPS & 30FPS | |
| Double stream | H.265/H.264 | |
| SDK Docking | standard ONVIF protocol, support SDK secondary development | |
| SDI/AHD chipest | ||
| Model | SDI | AHD |
| Imaging sensor | 1/2.5inch CMOS | 1/4inch CMOS |
| Effective pixels | 30X 3 mega pixels (decided by movement) | 36X 2 mega pixels (decided by movement) |
| Frame rate | 60FPS & 30FPS | 30FPS |

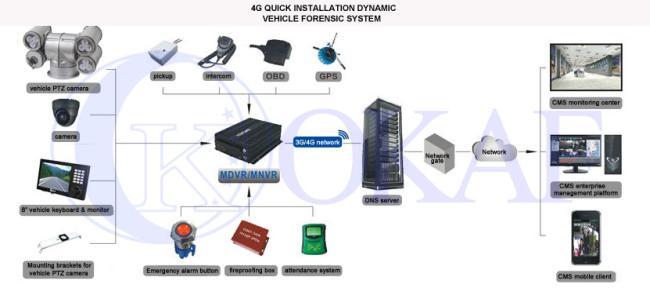

Police dynamic vehicle forensic system listing
