Foot Pump Pneumatic Telescopic Antenna Mast Portable DC12V 15A With Tripod / Wheel

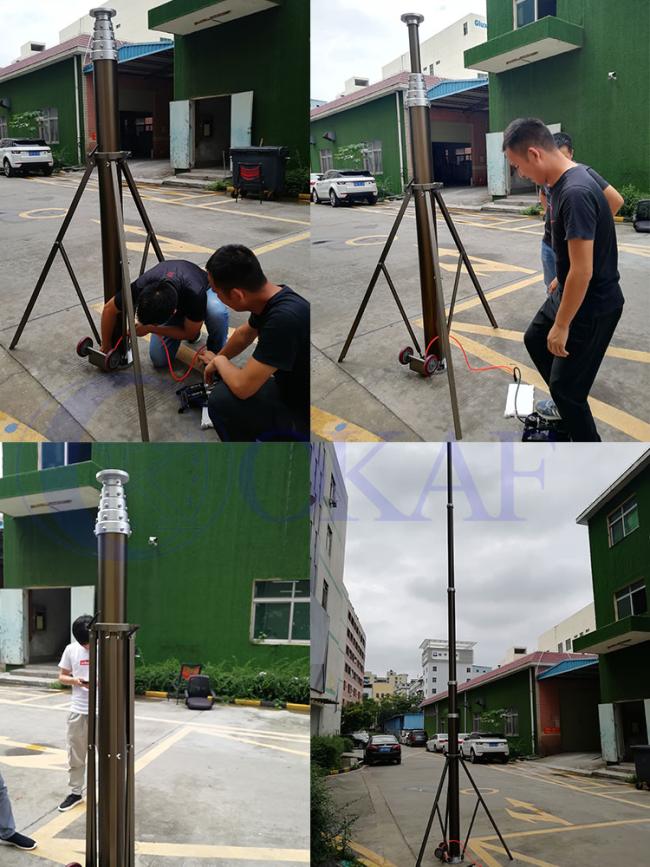

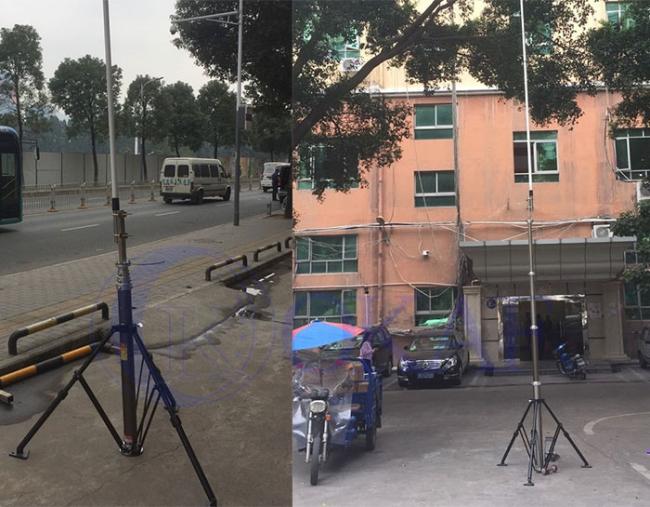

7.5m Antenna Mast Pole Foot Pump Pneumatic Telescopic Mast with Tripod and Wheel
Working principle:
Pnematic telescopic mast lifting by air compressor. It is good self locking which lock well at any position. It would not fall down automatically which is very stable and safety.
Features:
1. OKAF pneumatic telescopic mast mast lifter is also a rack height equipment carrier, suitable for car, ship and land.
2. It can elevate communications antenna, illumination, lightning shielding, optical transmission and camera equipment to a predetermined height quickly, reliably and securely. After the work is completed, it is also able to reduce the above-mentioned equipment to a predetermined height quickly, reliably and safely.
3. Our company's pneumatic telescopic mast lifter is made of high-strength aluminum alloy, with the advantage of corrosion-resistant, light weight, large load, low noise, fast lift, small shock resistance, stable and so on.
4. It could meet different areas, different occasions on the height and load requirements, in addition, it is also widely used in golf, large football night lighting, etc.
| Items | Test condition |
| Anti-wind capability | Level 8 wind: work normally; level 12 wind: can not be destroyed (working condition, nailed into the ground, 3-4 guy wires, pull angle: 30-40 degrees, the guy wire is tight).GJB74A-1998 3.13.13 |
| Low tempertaure storage | -55° |
| Low tempertaure working | -40° |
| high temperature storage | 70° |
| high-temperature working | 55° |
| Humidity | less than 90%(temperature 25°) |
| Exposed to the rain | Strength 6mm/min, the time of duration is 1 hour |
| Antiseptic | Refer to GJB150.11A-2009 Standard test |
| Dust-proof | Refer to GJB150.12.1986 Standard test |
| Solar radiation | Refer to GJB150.7.1986 Standard test |
| Mould | Refer to GJB150.2.1986 the second chapter standard inspection. Mildew-growing level: level 1 |
| Operating | Pneumatic Mast |

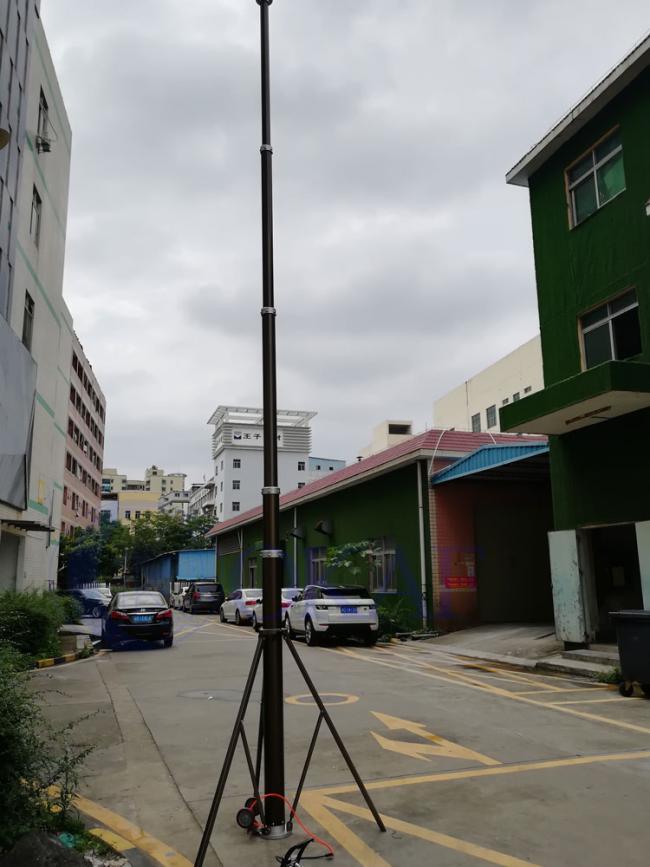

| Extended height | 7500mm |
| Retracted height | 2100mm |
| Top payload | 10 KG |
| Level of rotation speed | 6r/min |
| Vertical of rotation speed | 66Km/h |
| Control way | RS485,Pelco-D/P agreement,remote control |
| Material | aluminium alloy |

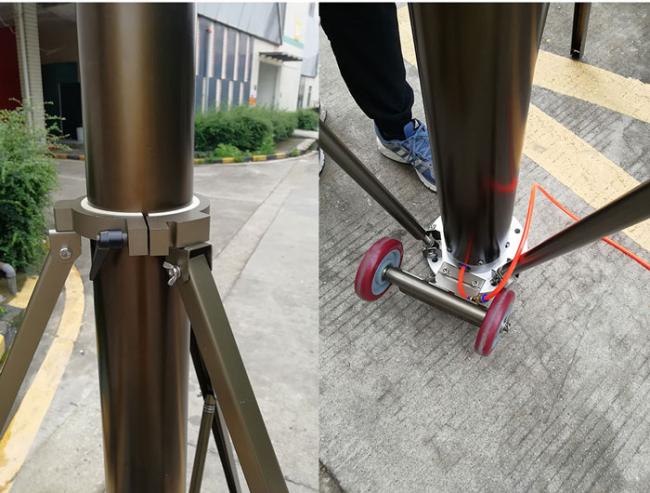

| Accessories | Tripod, wheel and foot pump |
| Voltage | DC12V-15A |
| Security | Self-locking at any height; would not fall at any time |
Advantages of pneumatic telescopic mast:
1. 1. Fast lifting. Within 5 minute to raise the telecommunication antennas, led lights,mobile surveillance PTZ Cameras and Lightning protection rod.
2. Stable and safety. The mast is high strength, it can work during the 8 degree wind. With the tripod, it can stand well on the ground.
3. Wide range application. Suitable for vehicle, vessel and ground systems.
4. Long life span. The aluminum mast is anti corrosive which can long last many years.
5. Customized available. The height, payload and function can be customized according to your requirement.
