4*120W 130Lm/W 15M 6r/min Rotating LED Light Mast For Firetrucks
Price:
Negotiated The Price
MOQ:
1
Delivery Time:
7-12 DAYS
Brand:
OKAF
Product Description
Specification
lighting parameters:
| System operating voltage: | DC12V(customized 24V, AC220V) |
| Light source type: | LED flood light + spotlight |
| Lamp working power: | 120W* 4 |
| Horizontal and vertical rotation speeds: | 6r/min |
| The LED specification: | Lux45mil 120-130Lm/W |
| LED light flux: | Maximum 11,500 (Lumens) |
| Lamp brand: | CREE |
| Horizontal rotation radius of the luminaire: | 410(mm) |
| Horizontal rotation Angle: | 380° |
| Vertical rotation Angle: | 330° |
| Working way | Electric/ manual |
| Horizontal and vertical rotation speeds | 6r/min |
| The control mode | RS485, PELCO-D /P protocol, wireless remote control |
| Material | Aluminium alloy enclosure |
| Security | Stop at any height and lose height indefinitely |
telescopic mast parameters:
| Product model number | Height Extended | Contractile height | Min Pipe Diameter | Max diameter | Wind power | Torsion precision |
| OK-DD3SJ | 3M | 1250mm | ∮52mm | ∮80mm | Level 8 /19 m/s | ≤±2º |
| OK-DD4SJ | 4M | 1350mm | ∮40mm | ∮80mm | Level 8 /19 m/s | ≤±2º |
| OK-DD5ASJ | 5M | 1550mm | ∮40mm | ∮80mm | Level 8 /19 m/s | ≤±2º |
| OK-DD5BSJ | 5M | 1250mm | ∮40mm | ∮106mm | Level 8 /19 m/s | ≤±2º |
| OK-DD6SJ | 6M | 1450mm | ∮40mm | ∮106mm | Level 8 /19 m/s | ≤±2º |
| OK-DD8SJ | 8M | 1750mm | ∮40mm | ∮106mm | Level 8 /19 m/s | ≤±2º |
| OK-DD10ASJ | 10M | 2150mm | ∮40mm | ∮106mm | Level 8 /19 m/s | ≤±2º |
| OK-DD10BSJ | 10M | 1850mm | ∮40mm | ∮132mm | Level 8 /19 m/s | ≤±2º |
Application

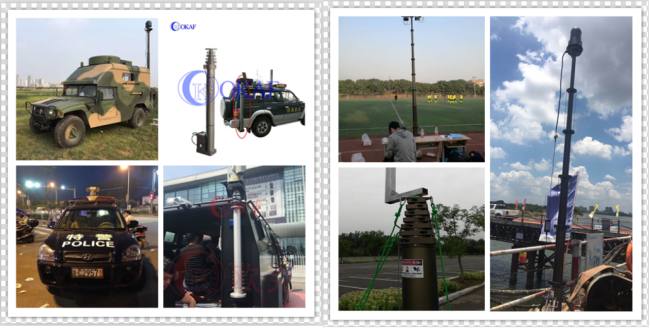

OKAF electric mechanical telescopic masts suitable for mounting lights, PTZ camera, antenna, radar, communication device etc. Our lighting masts have been in service with many of the world’s military, fire-fighting, public security, police, and government organisations for many years. They are also widely used in sports game such as outdoor football, basketball, football site illumination.
The mast is customized according to the expected performance, mounting device, payload, extended height, retracted height, even mast color can be customizable.

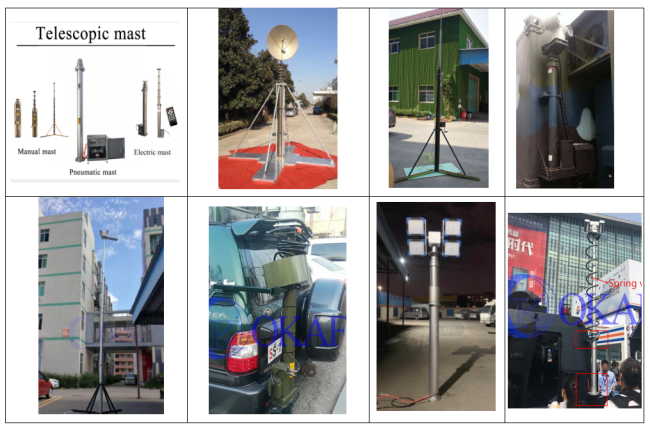

1. mast type: manual, electric, or pneumatic
2. what will be mounted onto the top of the mast and its estimate weight
Manual telescopic mast is used for the circumstances without power supply, the payload is about 5KG to 30KG depends on the mast extended height and tube diameters.
Electric telescopic mast is lifted by power supply, the load capacity is similar to the manual telescopic mast. When the power is no available, it can be lifted by manual hand crank.
Pneumatic telescopic mast top payload is much higher then the electric and manual mast. It needs air pump/compressor to elevate, it may not work in the temperature under 45 degree. Hollow mast, with less weight itself, max 400KG payload, but higher cost.
Electric telescopic mast is lifted by power supply, the load capacity is similar to the manual telescopic mast. When the power is no available, it can be lifted by manual hand crank.
Pneumatic telescopic mast top payload is much higher then the electric and manual mast. It needs air pump/compressor to elevate, it may not work in the temperature under 45 degree. Hollow mast, with less weight itself, max 400KG payload, but higher cost.
