Mobile Sentry Solar Surveillance Trailer IP65 For Epidemic Prevention Monitoring
Mobile Sentry Solar Surveillance Trailer for for Epidemic Prevention
Specification

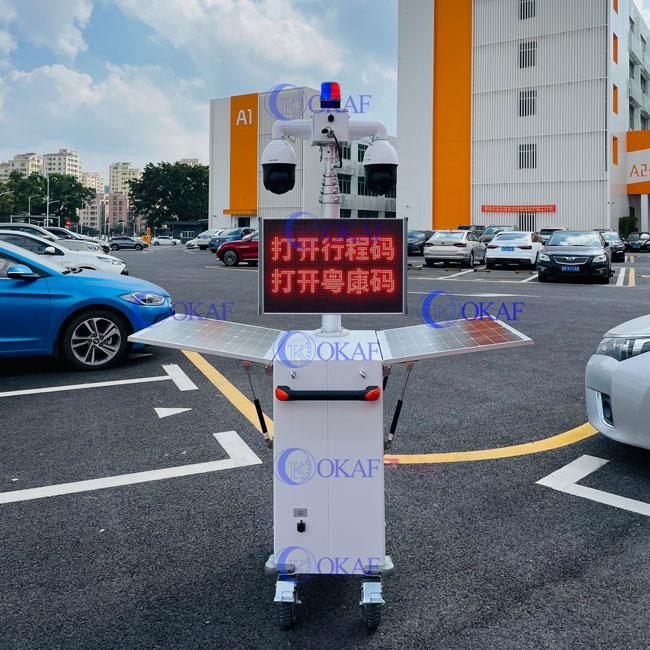

Epidemic Prevention Monitoring Trailer is including Trailer body, HD PTZ cameras, Solar Power, Battery power, auto lifting system, 4G /wifi transmission system. The meterial of trailer body is mental or stainless steel according to customer's requirement.The outrigers make the trailer stand well. The battery life is up to 5 days. The system comes with LED display which is perfect for epidemic protection warning. You could view real time video both on local and remote. Real time viewing and control in command center.
The trailer is fitted with to 2 of OKAF HD PTZ cameras, 4G transmission system, lifting system , solar & battery power system. All live and recorded footage is accessed via 4G LTE connectivity, so users can remotely access the cameras any time from any device.
Front-end data mobile acquisition equipment
♥ Real time video and audio recording.
♥ High efficiency code transmission ability.
♥ GPS positioning, real-time transmission of vehicle images.
♥ Support solar power,which is environment friendly.
♥ Support PTZ control, Keep abreast of the scene environment anytime.
♥ Strong system management capabilities.
♥ Mobile performance meets the work requirements of any place.
♥ Text scheduling and LED text prompts
♥ WIFI automatically downloads data functions, can transfer images back to the command
Back-end storage, control system
♥ Efficient coding transmission capability.
♥ GPS positioning, real-time transmission of vehicle images.
♥ Input voltage +7V~+48V wide voltage, suitable for kinds of vehicle.
♥ Support PTZ control, Keep abreast of the scene situation.
♥ Strong system management ability.
♥ Mobility meets the work requirements anywhere.
♥ Text scheduling and LED text prompts.
♥ WIFI automatically downloads data functions, can send images back to the command center via WIFI or 4G, can view videos, play back videos, etc. through mobile phone or computer.
Application
► Epidemic prevention monitoring
► Construction job site security
► Law enforcement mobile surveillance
► Oil and Gas site security
► Airports security
► Incident areas
► DUI checkpoints surveillance
► Road construction monitoring
► raffic monitoring
► Ports and harbors
► Vacant property management
► Border security
► Business and parking lot security
► Sporting and public events safety
Technical data
| Camera | Camera type | IP PTZ camera |
| Pixel | 2.0MP | |
| Resolution | 1920*1080 @ 30fp | |
| Optical zoom | 20x /30x optical zoom optional | |
| Camera rotation angle | 360° horizontal continuously rotation | |
| -15°~ +90°Vertical rotation | ||
| Network port | RJ45 10Base-T/100Base-TX PoE(IEEE802.3af | |
| Video Transmission & storage | Video input | 4 channel network 1080P, aviation interface |
| Video output | 1 channel composite video output+1 channel VGA output, 1.0Vp-p, 75Ω | |
| Preview function | Single-channel, 4-screen splicing preview, support manual / event triggered full-screen display function | |
| Video resolution | Support 1080P,720P,D1,HD1, CIF optional, Max support 4ch 1080P | |
| Audio input | 4channel, Aviation interface | |
| Audio output | 1channel | |
| Alarm Output | 2-way switch output, linked audible and visual alarm, oil and power off, etc. | |
| communication interface | 2 RS232, expandable face recognition, fuel sensor, LED advertising screen, etc. | |
| 2 way 485 interface, can extend PTZ | ||
| 2-way CAN bus interface | ||
| Wireless transmission | Support built-in 3G wireless transmission function, WCDMA, CDMA2000,TD-SCDMA compatible GPRS, EDGE | |
| Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE | ||
| Position | Support built-in GPS / BD module, can report to the platform | |
| Hard disk | Support large capacity 2.5-inch hard disk (maximum 2T) | |
| Power supply | Battery | 12V·200Ah / 12V*400Ah or other capacity according to customers requirements. |
| Solar | 2*80W fix solar panel | |
| AC Power | AC220V | |
| Trailer body & Mast | Material | Metal |
| Extended Height | 3.5 m ( 3 to 6m available) | |
| Wind power | 19m/sec | |
| Lifting | Manual or pneumatic | |
| Local viewing | With monitor for local viewing |
