SGS CCD Camera Rice Coffee Beans Color Sorter Machine High Capacity 7 Chutes
SGS CCD Camera Rice/Coffee Beans Color Sorter Machine High Capacity 7 Chutes

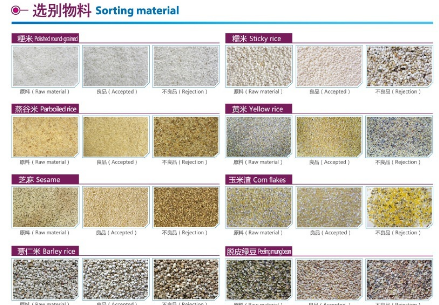

Sorting Materials:
Nuts: peanuts/cashew nuts/walnut meat/pine nuts
Rice: white/black/red/yellow/barley rice
Beans: soybeans/mungbeans/red beans/broad beans
Wheat: buckwheat/quinoa/oatmeal
Corn: corn particles/white corn/ ellowcorn/black corn
Dry food: dry onion/ raisins/dried chilli/Dates
Seeds: sunflower seeds/ rice seeds/ vegetable seeds
Industrial materials: plastic/scrap metal/ broken galss/ coal/ore/slag/Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic
Rice CCD color sorter machine parameters
| Name | S1 | S2 | S3 | S4 | S5 | S7 |
| Model | 6SXM-63 | 6SXM-126 | 6SXM-252 | 6SXM-252 | 6SXM- 315 | 6SXM-441 |
| Capacity(T/H) | 0.8-1.0 | 1.0-1.6 | 1.6-2.2 | 2.4-3.0 | 3.0-4.0 | 4.0-6.0 |
| Voltage(V) | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
| POWER(KW) | <1.5 | <2.0 | <2.4 | 2.6 | 3.0 | <4.0 |
| Weight(KG) | 350 | 500 | 800 | 1000 | 1250 | 1600 |
| Dimension(L*W*H/MM) | 910*1620*1550 | 1220*1620*1550 | 1628*1595*2040 | 1870*1595*2040 | 2210*1595*2040 | 2836*1595*2040 |
| Air compressor power | 4kw | 5.5kw | 5.5kw | 11kw | 11KW*2 | 22kw |
Technical parameter
1. High precision and high speed CCD line scanning 2048 pixels, high fidelity identification and high speed sorting;
2. Multi-functional intelligent software operating platform; Flexible classification mode setting, can be based on different raw materials for users; Automatic memory function setting mode; Simple and easy to operate;
3. High brightness, long life LED lamp, durable and stable; Effect of better color selection;
4. The processing system is based on advanced CCD technology; Pale yellow, small rice spots and needle spots sorted; Yellow and milk sort at the same time;
5. Accurately identify the internal 0.08mm of the discolored area; According to different requirements set the detection area of the sorting of different materials accuracy.
Sorting performance
Color Sorter After sale severice
1. A strong central technical team in Hefei, China: Ready for supporting local agent or wholesales with training, advice and technical support.
2. One year full warranty (except for consumable parts) upon the date of purchase.
3. Service line is available for emergency support: telephone, email, video or on site solutions by our technical experts.
4. Serviced and Supported wherever customers are located.
5. Free software update.
6.Video outgoing-inspection provided .
Why choose us
2. W supply optic detection and classification equipment as rice color sorting machine, grain CCD color sorter machine,grain color sortingmachine,grain color sorting machine, tea color sorting machine,belt color sorting machine ect,and also offfer the effective fast solution for relative industry.
3. Hons+ brand series product have been popular both in domastic and oversea market many years, we have exported over than 20 countries with high praise from customers.
