China Vacuum Gravity Sorting Machine With Power 2,7KW And Voltage 380V/50HZ For Economic Crop for sale

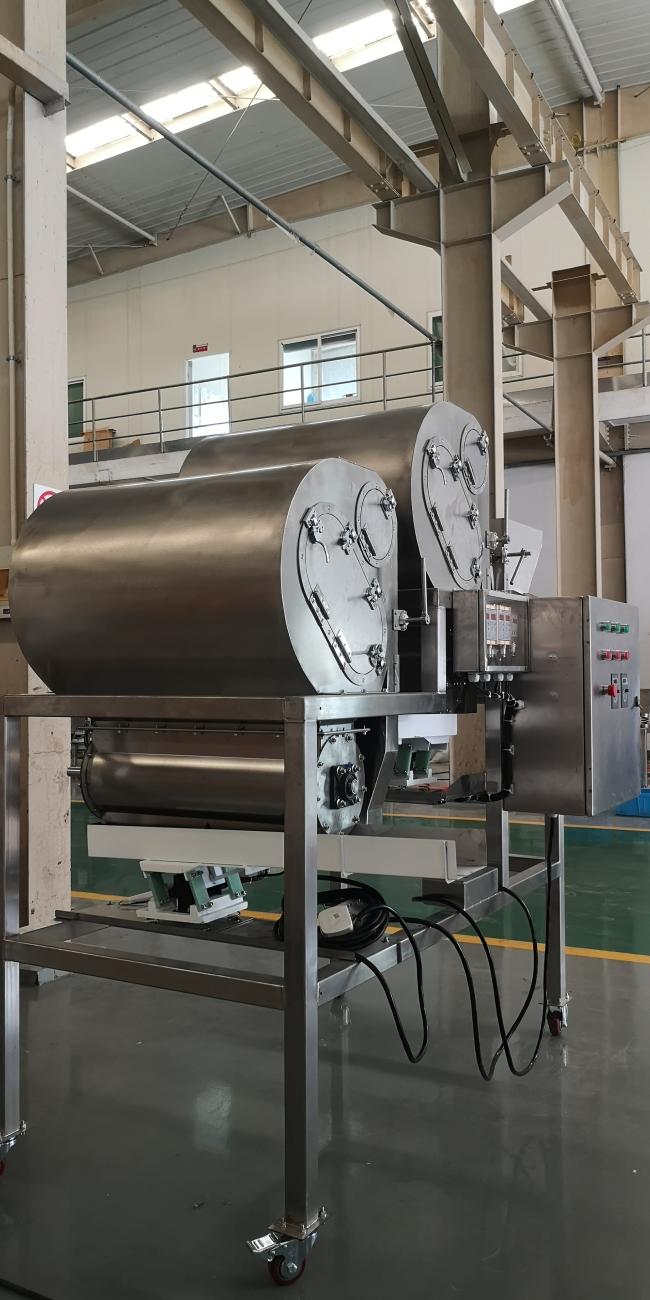

Vacuum Gravity Sorting Machine With Power 2,7KW And Voltage 380V/50HZ For Economic Crop

Price Negotiable

Price: Negotiable

MOQ: 1 Set

Delivery Time: 7 ~ 14 Days

Brand: Hons+

Product Description

Descripton

FX series vacuum negative pressure winnowing machine (vacuum negative pressure gravitational separation equipment) is one of the important products of our company, totally different with color sorter, It is separate different materials by the different weight with same color, which can solve the problem color sorter can not do.

Model And Specification

Name	Voltage	Power	Weight	Size
HFX-I	AC380V/50HZ	<3.3KW	180kgs(+/-5%)	L 1980mm * W 900mm * H 2100mm
HFX-II	AC380V/50HZ	<2.7KW	218Kgs(+/-5%)	L 1980mm * W 900mm * H 2100mm
HFX-III	AC380V/50HZ	<0.75KW	90Kgs(+/-5%)	L 925mm * W 580mm H 2100mm

Usage

It can be used to select various crops seeds (such as seaweed products, traditional Chinese medicine, melon seeds, peanuts and other crops) and agricultural and sideline products by air and specific gravity. It has features that are not available in general air screen cleaner

Characteristic

ØN-grade air separation chamber design can do the selection of N + 1 material

ØThe adjustable function of near vacuum environment in the air separation cavity can realize the accurate separation of material

ØNarrow and long separation cavity, which can accurately collect the separated materials

ØDesign of light material collection, reduce the impact of light impurities on the following processing, and effectively solve the dusty problem in the customer site.
