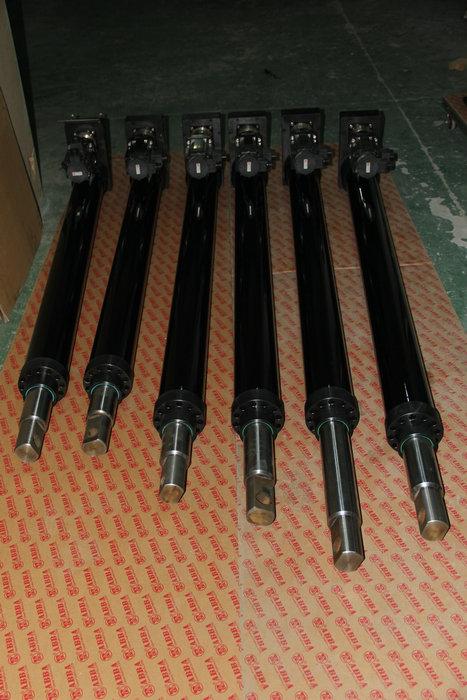

Heavy Duty Electric Cylinder

The heavy duty electric rod actuator accommodates larger motors and delivers high force with excellent accuracy. These high force electric linear actuators feature ball or roller screw selections, an enhanced high thrust bearing and heavy duty internal bumpers. The standard grease zerk extends screw life by making relubrication easy and convenient without dissassembly. RSA/RSM-HT actuators are suitable for valve actuation, punch press, injection molding applications and many more.

Features

• Fully assembled and ready to mount
• Operates without externally mounted limit or home switches
• No pipes, valves, air or oil supply required
• Flexible control (unlike fluid power cylinders)
• Food-grade option
  • Durable two-part white epoxy coating and corrosion resistant stainless fasteners
  • Stroke lengths up to 450mm, speeds as fast as 550mm/sec, and positioning repeatability of ±0.02mm
  • Stainless-steel piston rod actuators with Viton® seals
• Full setup and programming support in RSLogix™ 5000 (version 20 or earlier) and UltraWARE software
• Easy sizing and operating life estimates using Motion Analyzer software
• 3D solid model files are available to simplify mechanical and electrical design

Available with or without 24V DC holding brakes

Applications

• Material handling
• Volumetric filling and process control
• Fabrication
• Push, pull, eject, press, or clamp parts
• Packaging
• Electronic assembly
• Insertion systems
• Inspection and test equipment
