Screw specification 1604 1605,Standard motor rated thrust 4.5 kN,Standard rated speed 60-83mm/s
Price:
USD, negotiable
MOQ:
1 pcs
Delivery Time:
4-5 weeks
Brand:
suzhou Tongjin
Product Description
Application
SIMULATION AIRCRAFT AND MISSILE CARRIER, RADAR MONITORING, ETC.;
AEROSPACE TEST AND TESTING;
METAL MATERIAL PROCESSING;
ENTERTAINMENT STAGE, DYNAMIC SEATS, ETC
Technical specifications
|
Screw specification |
1604 | 1605 | |||
|
KW Standard motor rated power KW |
0.4 | 0.4 | 0.75 | ||
| N·m Motor rated torque N·m | 1.27 | 1.27 | 2.39 | ||
| r/min Rated motor speed r/min | 3000 | 3000 | 3000 | ||
|
Reduction ratio |
3 | 3 | 5 | 3 | |
|
Standard motor rated thrust kN |
4.5 | 4.31 | 4.5 | 4.5 | |
|
Standard motor rated speed mm/s |
67 | 83 | 50 | 83 | |
|
Repeated positioning accuracy mm |
±0.01/±0.02 | ||||
|
Maximum effective travel mm |
600 | ||||
|
Maximum load thrust kN |
4.5 | ||||
|
Maximum expansion speed mm/s |
1000 | ||||
|
Magnetic switch |
AL-39DFBL-02 |
2M
|
|||
| AL-39DFL-02 |
2M
|
||||
Two wire type no contact type normal
Two wire type no contact type normally

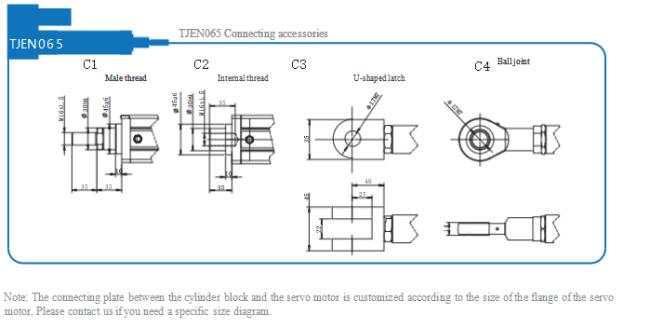

Dimensions
