Structure elertric cylinder, speed 200mm/s, playload 15kg,ball shaft 16mm,Energy & Mining
Price:
negotiable
MOQ:
1 pcs
Delivery Time:
4-5 weeks
Brand:
suzhou Tongjin
Product Description
EUROMOD Series Save Much Space , Light CNC Machines From Germany Repeat Accuracy ± 0.02 mm
Advantages
• space-saving
• fixed portal,moving bench
• also available with gantry drive
Features
• portal gap:350 mm
• maintence-free servo motor
• max. spindle motor size up to 1.5 kw
• available with or without protective hood
• ideal for multi-shift operation
• control pult iOP-19-CPU
• control PC iPC 25 including PCI card Win 7/64 bit
Technical specifications
| MP30 | MP45 | MP65 | |
| Processing areas X/Y/Z(mm) | 650/300/250 | 650/450/250 | 1000/650/250 |
| Bench clamping area W*D(mm) | 900*350 | 900*500 | 1200*700 |
| Gap(mm) | 350 | ||
| Dimensions W*D*H(mm) | 1160*800*1960 | 1160*1110*1960 | 1480*1510*1960 |
| Processing speed X/Y/Z(mm/s) | Max. 250 mm/s | ||
| Repeat accuracy | ± 0.02 mm | ||
| Drive motors | Servo motors | ||
| Drive elements X/Y/Z | Recirculating ball screw,adjustable for no play | ||
| Controller | iMD CAN controller with 4 drive controllers,expandable to 12 axes(max. 6 interpolated & 6 handling axes),PC,IO module,safety circuit with rest state monitoring,power supply unit 48 V/1000 W. | ||
| Operation | Control panel iOP-19-TFT | ||
| Appr. weight (kg) | 275 | 300 | 400 |
| Software | Windows,WinRemote(optional: ProNC,isyCAM 2.8) | ||
| Connection values | 230 V / 16 A | ||
Areas of application
For the machining of:
(1) Light metals
(2) Non-ferrous metals(brass,bronze etc.)
(3) CFRP
(4) Ceramic
(5) Platics
(6) Wood

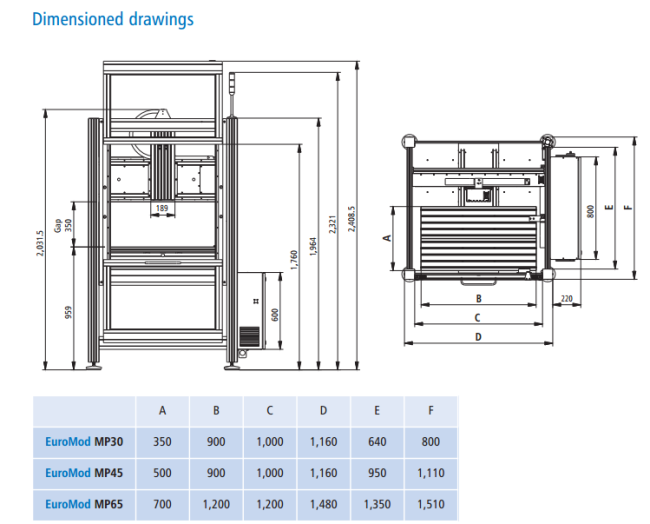

Dimensions
