Simulated Driving Mini Electric Cylinder 1-30 Ton Stroke 50-1800mm

Price Negotiable

Price: negotiable

MOQ: 1 pcs

Delivery Time: 3-4 weeks

Brand: TJ

Product Description

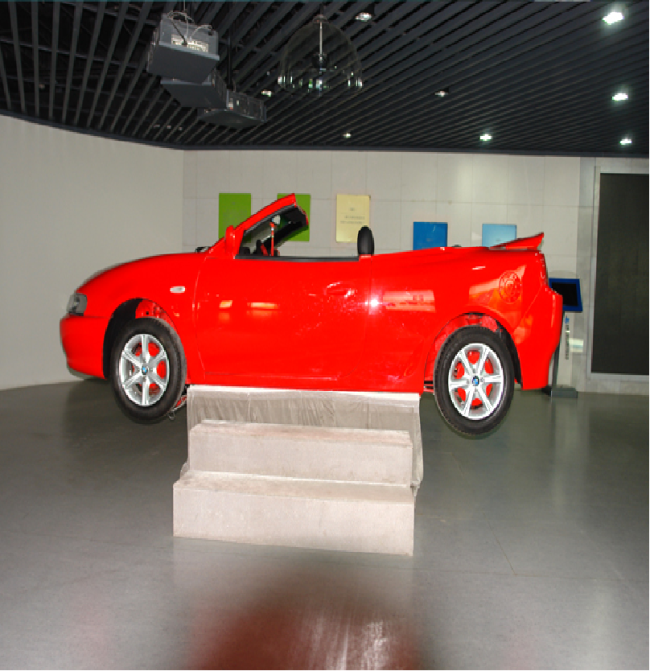

Simulated driving,mini electric cylinder, 1-30 Ton, stroke 50-1800mm,Material: Contains PWIS substance

1. Electrical servo cylinder drive torque and power selection table

Motor connection		Parallel (belt drive)
Reduction ratio		1				1.5					3					5				10
Screw Lead	[mm]	10
Motor Power	[KW]	1.5	2.2		3	1.5	2.2		3		1.5	2.2		3		1.5		2.2	3	1.5		2.2		3
Motor Rated Torque	[N.M]	4.77	7		9.55	4.77	7		9.55		4.77	7		9.55		4.77		7	9.55	4.77		7		9.55
Motor Rated Speed	[r/min]	3000	3000		3000	3000	3000		3000		3000	3000		3000		3000		3000	3000	3000		3000		3000
Cylinder Rated Force	[KN]	3.30	4.85		6.62	4.96	7.28		9.92		9.91	14.55		19.85		16.52		24.26	30	30		30		30
Cylinder Max. Force	[KN]	50
Cylinder Speed	[mm/s]	0-500		0-330		0-330		0-220		0-165			0-110		0-100		0-65				0-100		0-30

Motor connection		Linear (coupling direct drive)
Reduction ratio		1				1.5	3					5				10
Screw Lead	[mm]	10
Motor Power	[KW]	1.5	2.2		3		1.5	2.2		3		1.5		2.2	3	1.5		2.2		3
Motor Rated Torque	[N.M]	4.77	7		9.55		4.77	7		9.55		4.77		7	9.55	4.77		7		9.55
Motor Rated Speed	[r/min]	3000	3000		3000		3000	3000		3000		3000		3000	3000	3000		3000		3000
Cylinder Rated Force	[KN]	3.30	4.85		6.62		9.91	14.55		19.85		16.52		24.26	30	30		30		30
Cylinder Max. Force	[KN]	50
Cylinder Speed	[mm/s]	0-500		0-330					0-110		0-100		0-65				0-100		0-30

Motor connection		Parallel (belt drive)
Reduction ratio		1			1.5					3					5				10
Screw Lead	[mm]	20
Motor Power	[KW]	3	3.5	5.5	3	3.5		5.5		3	3.5		5.5		3		3.5	5.5	3		3.5		5.5
Motor Rated Torque	[N.M]	9.55	16.7	26.25	9.55	16.7		26.25		9.55	16.7		26.25		9.55		16.7	26.25	9.55		16.7		26.25
Motor Rated Speed	[r/min]	3000	3000	3000	3000	3000		3000		3000	3000		3000		3000		3000	3000	3000		3000		3000
Cylinder Rated Force	[KN]	2.65	4.65	7.27	3.97	6.97		10.91		7.94	13.94		21.82		13.23		23.23	36.36	26.46		46.45		50
Cylinder Max. Force	[KN]	50
Cylinder Speed	[mm/s]	0-500			0-500		0-444		0-330			0-220		0-200		0-130				0-100		0-65

Motor connection		Linear (coupling direct drive)
Reduction ratio		1			1.5		3					5				10
Screw Lead	[mm]	20
Motor Power	[KW]	3	3.5	5.5			3	3.5		5.5		3		3.5	5.5	3		3.5		5.5
Motor Rated Torque	[N.M]	9.55	16.7	26.25			9.55	16.7		26.25		9.55		16.7	26.25	9.55		16.7		26.25
Motor Rated Speed	[r/min]	3000	3000	3000			3000	3000		3000		3000		3000	3000	3000		3000		3000
Cylinder Rated Force	[KN]	2.65	4.65	7.27			7.94	13.94		21.82		13.23		23.23	36.36	26.46		46.45		50
Cylinder Max. Force	[KN]	50
Cylinder Speed	[mm/s]	0-500				0-330			0-220		0-200		0-130				0-100		0-65

Motor connection		Parallel (belt drive)
Reduction ratio		1			1.5				3				5				10
Screw Lead	[mm]	50
Motor Power	[KW]	3	3.5	5.5	3	3.5	5.5		3	3.5	5.5		3		3.5	5.5	3		3.5		5.5
Motor Rated Torque	[N.M]	9.55	16.7	26.25	9.55	16.7	26.25		9.55	16.7	26.25		9.55		16.7	26.25	9.55		16.7		26.25
Motor Rated Speed	[r/min]	3000	3000	3000	3000	3000	3000		3000	3000	3000		3000		3000	3000	3000		3000		3000
Cylinder Rated Force	[KN]	1.06	1.85	2.91	1.59	2.78	4.37		3.17	5.56	8.73		5.29		9.26	14.56	10.58		18.52		29.11
Cylinder Max. Force	[KN]	50
Cylinder Speed	[mm/s]	0-500			0-500			0-500				0-500		0-330				0-250		0-165

Motor connection		Linear (coupling direct drive)
Reduction ratio		1			1.5		3				5				10
Screw Lead	[mm]	50
Motor Power	[KW]	3	3.5	5.5			3	3.5	5.5		3		3.5	5.5	3		3.5		5.5
Motor Rated Torque	[N.M]	9.55	16.7	26.25			9.55	16.7	26.25		9.55		16.7	26.25	9.55		16.7		26.25
Motor Rated Speed	[r/min]	3000	3000	3000			3000	3000	3000		3000		3000	3000	3000		3000		3000
Cylinder Rated Force	[KN]	2.65	4.65	7.27			7.94	13.94	21.82		13.23		23.23	36.36	26.46		46.45		50
Cylinder Max. Force	[KN]	50
Cylinder Speed	[mm/s]	0-500				0-500				0-500		0-330				0-250		0-165

3. Peripheral Parts List

Name	Explanation
1- HNC/CRHNC Foot mounting part	When the motor is mounted parall,this part is used for installing bearings and reducer end caps.
2- FNC/CRFNG Flange mounting part	When the motor is mounted parall,this part is used for installing bearings and reducer end caps.
3- ZNCF/CRZNG Trunnion mounting part	When the motor is mounted parall,this part is used for installing bearings and reducer end caps.
4- LNZG/CRLNZG Trunnion bearing	For trunnion mounted on the cylinder block.
5- SNC Double clevis bearing	For the motor mounted parallel.
6- LSNG Spherical hinge clevis bearing	For the motor mounted parallel,with spherical bearing.
7- LSNSG Spherical hinge clevis bearing	For the motor mounted parallel,with spherical bearing, welding synthesis.
8- SNCS Double clevis mounting part	For the motor mounted parallel,with spherical bearing.
9- LBG Double clevis bearing	For the motor mounted parallel,with spherical bearing.
aJ- Double clevis mounting part	For the motor mounted parallel.
aA- Double clevis mounting part	For the motor mounted parallel,with spherical bearing.
aB- Double clevis mounting part	For the motor mounted parallel.
aC- Clevis bearing	For the motor mounted parallel.
aD- Spherical hinge Clevis bearing	For the motor mounted parallel,with spherical bearing.
aE- Trunnion bearing	For being mounted to any position of the cylinder.If the motor is mounted parallel,the mounting position couldn’t near the motor.
aF- Foot mounting part	For the motor mounted axially.
aG- Joint bearing	With spherical bearing.
aH- Connecting flange	For compensating radial deviation.
aI- Double clevis	For the cylinder swing in a plane.
bJ- Self in connection part	For compensating radial and angular deviations.
bA- Right angle spherical hinge clevis bearing	For joint bearing.
bB- Double clevis	For the cylinder swing installation.
bC- Guiding unit	Prevent cylinder from twisting under high torque
bD- Proximity Switches	For testing the position, can be integrated in the sensor mounting slot.
bE- Slot cover	For preventing dust from entering.
bF- Parallel installation components	For the motor mounted parallel.
bG- Axial installation components	For the motor mounted axially.
