Class 0.1 Ratio 200A / 200mA Inductive Current Clamp On CT Manufacturer

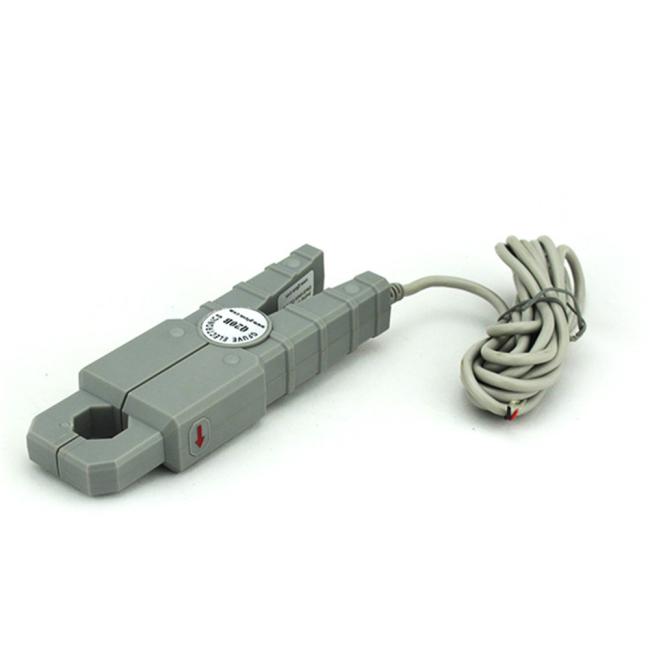

The GFUVE Inductive Current Clamp On CT Q20B-3 Series are designed to extend the current measuring capabilities of digital multimeters, power instruments, power quality analyzer, recorders. Q20B-3 use permalloy core to guarantee the high accuracy stable linearity. The Q20B-3 Series is an excellent probe to be used in power and low level current measurement applications.

Features

1. Measurement range of 1mA to 200A AC

2. Small, compact size

3. Improved ergonomic design and easy operation

4. Low phase shift for power measurement

5. With load capacity ≤4Ω

6. Output model: Lead output(2.5m)

Applications

1. Electric energy meter calibrator (on site)

2. Double clamp type ground resistance tester

3. Double clamp type phase volt-ampere meter

4. Digital multi-meter

5. Multi-function energy meter

6. Oscilloscope

7. Power quality analyzer

8. Matched instruments

9. Calibration instrument on site

Parameter

FAQ, following questions will help you to select the matched probe for your applications.

1. Please determine if you are measuring AC or DC?

GFUVE Q20B-3 is for AC measuring. If DC, we have hall effect models to suggest.

2. What is the maximum current you will measure?

Q20B-3 max current is 200A

3. What size conductor will you clamp onto? This parameter determines the probe jaw size needed.

Q20B-3 can clamp conductor φ40mm

4. What type of probe output do you need or can you work with (mA, mV, A, AC, etc.)?

Q20B-3 can customize output with Milliampere, Millivolt.

5. What is the working voltage of the conductor to be measured?

GFUVE probes should be used below 600 volts

6. What type of termination do you need: jacks, leads or BNC?

Q20B-3 standard has 2.5meter leads. We can offer jacks or BNC… as options.

7. If you cannot find information you need or would like assistance, contact us today. We have designed many more probes than those shown in this catalog, and we manufacture in Beijing, China.
