1000V 500A Electrical Test Equipment For Laboratory
Price:
Negotiable
MOQ:
1set
Delivery Time:
10days
Brand:
GFUVE
Product Description

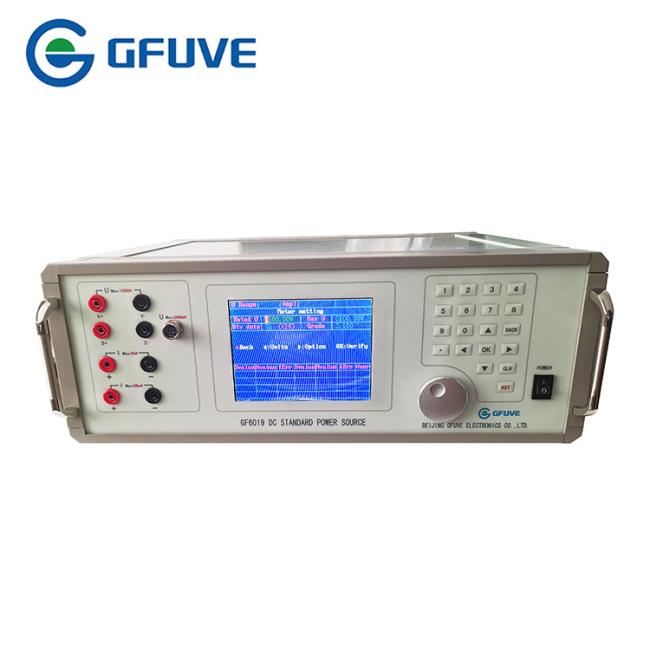

GF6019 1000V 500A Portable DC voltage source and current source of testing DC meter with electric power calibrator
The GF6019 is a precision DC current source suitable for calibration and test applications from micro-amp levels up to 100mA. Three output ranges are available; 0 to 500A, 0 to 99.99mA in 10μA steps, 0 to 9.999mA in 1μA steps, and 0 to 999.9μA in 0.1μA steps. Output voltage is adjustable between 0 and 1000 volts, with a maximum output power of 500k watts.
A voltage source is a device which provides a constant voltage to load at any instance of time and is independent of the current drawn from it. This type of source is known as an ideal voltage source. Practically, the ideal voltage source cannot be made. It has zero internal resistance. It is denoted by this symbol. The graph represents the change in voltage of the voltage source with respect to time. It is constant at any instance of time.
FEATURES AND FUNCTIONS
- Accuracy class 0.05
- 0-600A/0-1150V
- Start testing and creep testing
- DC power source integrated
- Test by automatic or manual
- 8 inch TFT touch screen
- Recorder 10000 sets energy meter data
- Overload, short circuit, open circuit protection
- Testing all kinds of DC energy meter, DC power meter
- Testing all kinds of DC ammeter, DC voltmeter
- DC current source and DC voltage source
- User friendly menu guided operation
- Especially configured USB stick for storage of customer data
- Easy verification and analysis of DC meter
- Automatic operation without need of an external PC
PARAMETERS
| Electrical parameters | |
|---|---|
| Accuracy | 0.05% |
| Power Supply | One Phase AC 180-265V, frequency 50/60Hz. |
| DC Voltage Output | |
| Range | 65V, 250V, 500V, 750V, 1000V (max 1150V) |
| Adjustment range | (0-120)%RG(1) |
| Adjustment fineness | 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional. |
| Stability | 0.01%/120s |
| Distortion | 0.1% (Non-capacitive load) |
| Output load | 50VA |
| Full load regulation rate | ≤±0.01%RG |
| Accuracy | ±(0.03%RD+0.02%RG) |
| DC Current Output | |
| Range | 0.001A, 0.005A, 0.02A, 0.05A, 0.2A, 1A, 3A, 10A, 20A, 50A, 100A, 500A (max 600A) small signal 2.5mV, 20mV, 100mV, 1V, 5V |
| Adjustment range | (0-120)%RG |
| Adjustment fineness | 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional. |
| Stability | <0.01%/120s, small signal 2uV/min |
| Distortion | ≤0.1% (Non-capacitive load) |
| Output load | 1200VA |
| Full load regulation rate | ≤±0.01%RG |
| Accuracy | ±(0.03%RD+0.02%RG) |
| Externally attached shunt | 100mV |
| Accuracy | ±(0.06%RD+0.04%RG) |
| DC Power Output | |
| power output stability | <0.01%RG/120s |
| power accuracy | ±(0.03%RD+0.02%RG) |
| DC Power Energy Measurement Error | |
| power energy | ±(0.03%RD+0.02%RG) |
| Power Pulse Output | |
| Power Pulse Output | 20KHz (Full-Range) |
| Power Pulse Input | |
| Energy pulse input | 20KHz |
| Ripple output | 20-500Hz ripple output |
| Communication port | USB port, RS232, 10/100M LAN |
| Mechanical parameters | |
| Dimensions (W×D×H) (mm) | 630x600x450 |
| Weight (kg) | 20,55 |
| Environmental conditions | |
| Ambient temperature | -10°C to +40°C |
| Relative humidity | -30°C to 60°C |
| (1) RG means range, the same as below; (2) RD means the setted harmonic content, harmonic can be a single output, also multiple output. |
|
