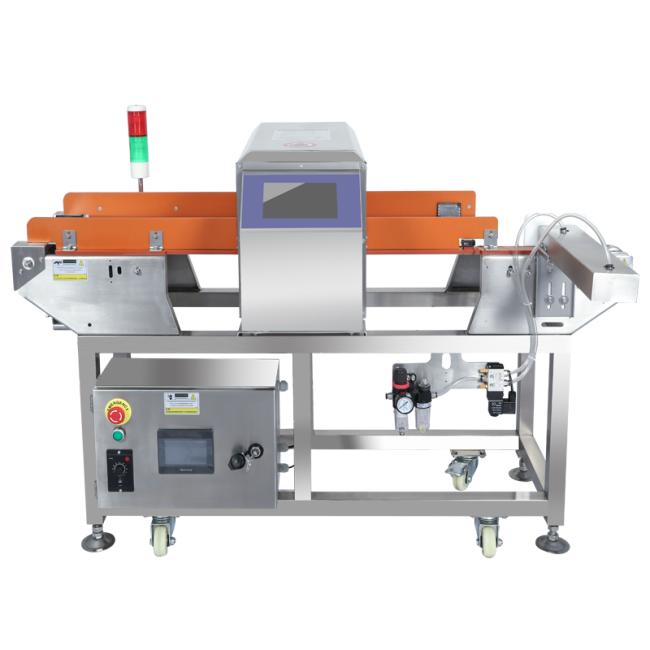

High Quality Industry Conveyor Metal Detector For Food Grade Bakery Beef Meat Detector
Price:
negotiation
MOQ:
1 set
Delivery Time:
15work days
Brand:
SHANAN
Product Description
High Quality Industry Conveyor Metal Detector For Food Grade Bakery Beef Meat Detection
Bakery Applications
This metal detector is specifically designed for bakery applications, including fresh and frozen bread and rolls, semi-baked goods, croissants, cakes, pastries, doughnuts, pancakes, dough, biscuits, cookies, crackers, tarts, and fruit pies.
Challenges in the Bakery Sector
- Extensive processing and production increases risk of stainless steel contamination from equipment failure
- Warm, dusty environments requiring regular cleaning of machines, conveyors, and belts
- Maintaining product integrity after baking (detecting holes in baked bread) or missing items (packets of cookies)
- Increasing private label manufacturing demands serving multiple retailers with diverse products
Advanced Detection Features
Faster, Better Auto-Learn
With significant improvements in signal processing, the new Auto-Learn rapidly delivers excellent detection sensitivities and provides more line uptime than ever before.
Variable Frequency Technology
SHANAN's revolutionary Variable Frequency technology optimizes detection levels across a wide range of product conditions, including wet or dry products.
Technical Specifications
| Parameter | Values |
|---|---|
| Pass width (mm) | 400 | Custom non-standard |
| Pass height (mm) | 80 | 120 | 150 | 180 | 200 | 250 | 300 | 350 | 400 |
| Standard detection sensitivity FE(Φmm) | 0.5 | 0.6 | 0.7 | 0.8 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 |
| NON-FE(Φmm) | 0.8 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 |
| SUS304(Φmm) | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 |
| Belt width (mm) | 370 | 370 | 370 | 370 | 470 | 470 | 470 | 470 | 470 |
| Conveyor length (mm) | 1330 | 1330 | 1330 | 1330 | 1700 | 1700 | 1700 | 1700 | 1700 |
| Height from belt to ground (mm) | 650±50 (can be customized) |
| Protection level | IP66 |
| Number of memory products | 100 kinds |
| Display method | LED D (or custom touch screen) |
| Operation method | Touch key input (touch optional) |
| Material of conveyor belt | Food grade plate chain |
| Alarm method | Alarm shutdown, buzzer alarm or rejection mechanism optional |
| Belt speed | 28m/min constant (variable speeds for different varieties, customizable frequency conversion) |
| Machine material | SUS304 food grade stainless steel, compliant with HACCP, GMP, CAS standards |
| Mechanical size (mm) | 1330 * 980 * 1100 (length * width * height) non-standard customizable |
| Machine weight | Approximately 300KG |

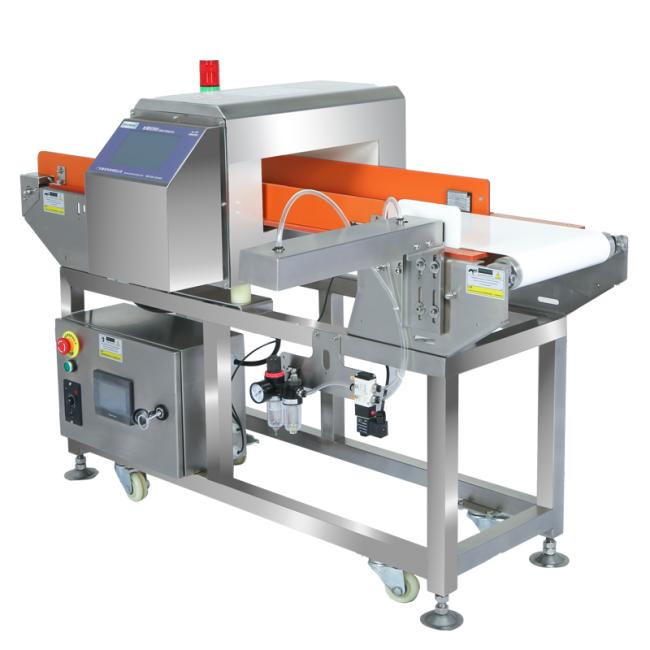

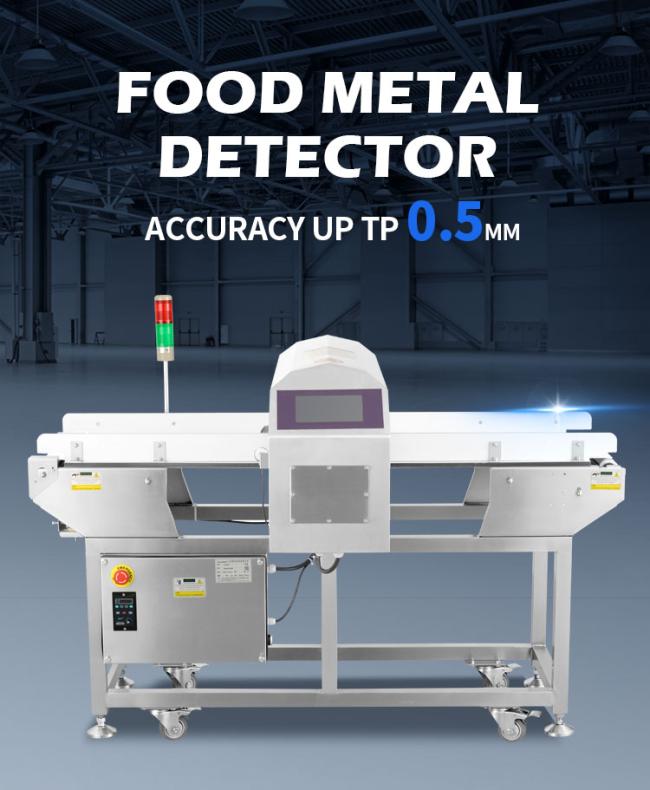

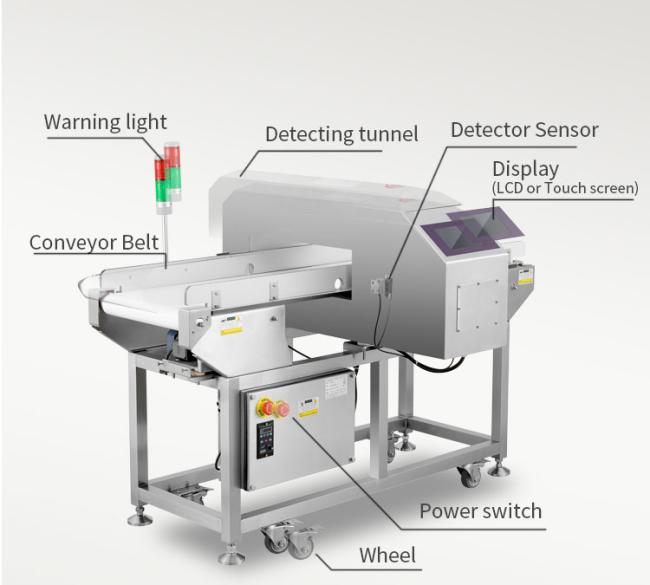

Product Images
Model SA-990 Specifications
| Parameter | Specification |
|---|---|
| Model | SA-990 |
| Machine length (mm) | 1330~2000 (customizable) |
| Detection tunnel width (mm) | 200~1200 (customizable) |
| Detection tunnel height (mm) | 50~1000 (customizable) |
| Standard detection sensitivity FE(Φmm) | ≥0.5 |
| NON-FE(Φmm) | ≥0.8 |
| SUS304(Φmm) | ≥1.0 |
| Protection level | IP67 |
| Number of memory products | 200+ kinds |

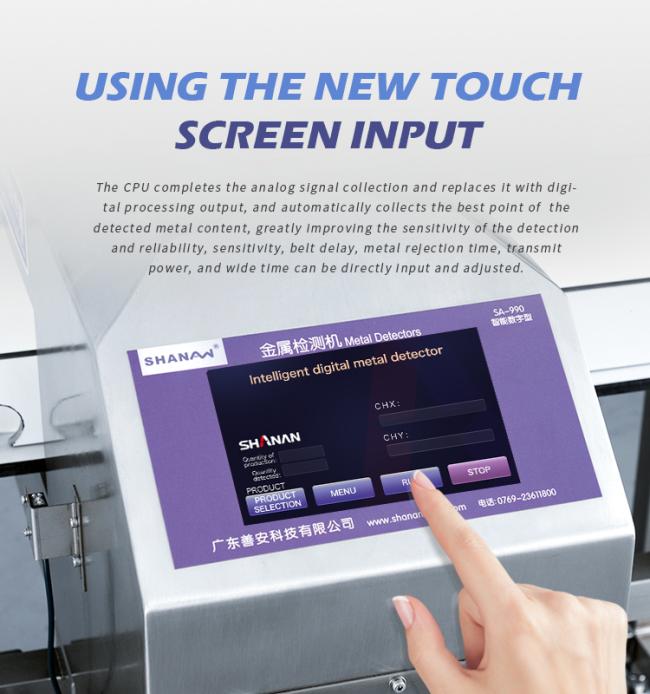

| Display mode | Touch Screen |
| Operation mode | Touch button input |
| Alarm mode | Alarm stop, buzzer alarm or rejector device optional |
| Machine material | Stainless steel 304, compliant with HACCP, GMP, FDA, CAS standards |

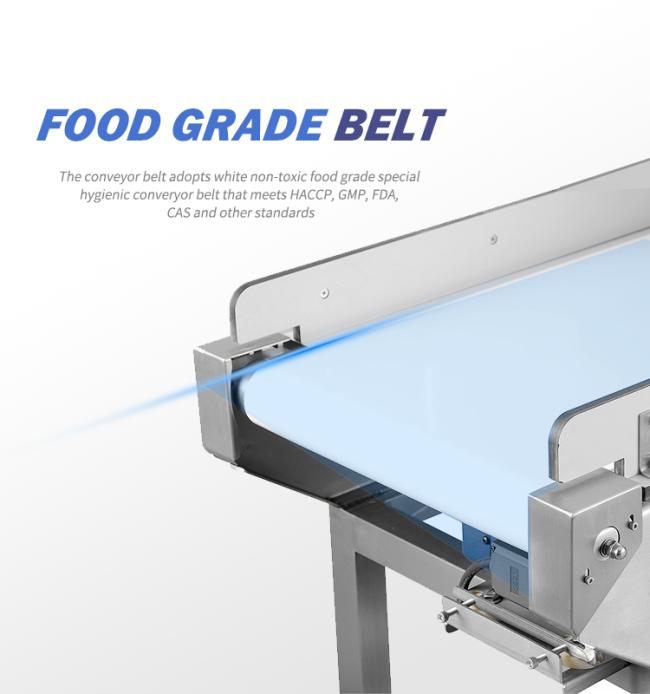

| Conveyor belt material | Food grade PVC or PU belt |
| Machine weight | Approximately 280KG |
| Motor | 90~370W |
| Transfer speed | 10-28m/min (optional and adjustable) |
| Power supply | AC220V±10%, 50-60HZ (Customize AC110V or AC380V) |
| Belt height above ground (mm) | 700+100 (customizable) |
| Maximum load (single piece) | 10~50KG (customizable) |
| Using environment | Temperature: -15℃~40℃, relative humidity: 30~85% |

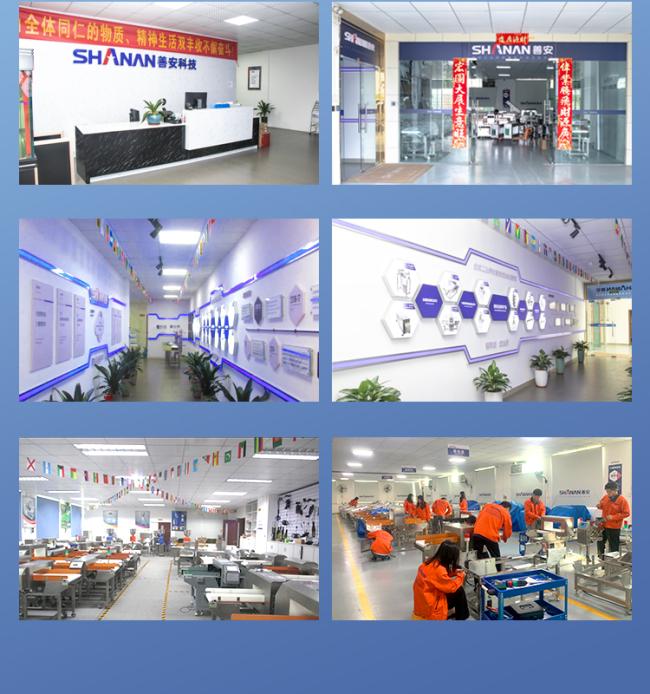

Company Profile
