Brief introduction:

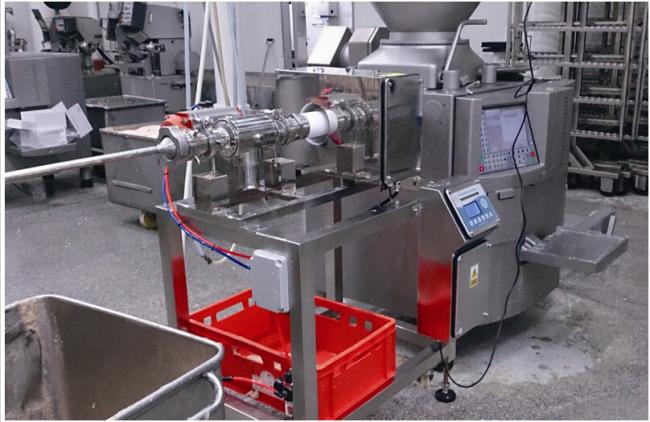

Our Liquid pipeline Metal Separator’s equipment technology is from German KOCH.
It comes from the principle of electromagnetic induction. It is a high precision detection equipment for magnetic and nonmagnetic metal and a metal separator equipment. Can detect materials including iron (magnetic) and non-iron(nonmagnetic: copper, aluminum, tin, Stainless Steel, etc.) If ferromagnetic metals into detection area will affect regional distribution of magnetic line, also change the magnetic field distribution. Non ferromagnetic metals into detection area will produce eddy current effect, also will change the magnetic field distribution. Normally, Metal Detector combines with two parts, induction coil and automatic removing device, in those, core part is detector.
Mainly features:
- Digital signal processing technology
- High Sensitivity to all metals
- Multi-Functional Operation Interface
- Multi-Frequencies for option
- Advanced product auto-learn function
- Memory 12 or 100 different types of products
- Stainless Steel Structure meet HACCP requirement
- Simple and easy maintenance conveyor
- Optional Chinese/English/ Korean /Japanese Language available
- Optional Multi-Rejector System
Product advantages:
- High Stability
- High Sensitivity
- Low Maintenance
- Custom Made
- Detection and separation of metallic contaminations from pumped products – liquid or pasty
- Easy mounting with quick connections to vacuum fillers and pumps with nominal widths up to 100 mm
- Designed for easy cleaning in high-strength stainless steel
- Meets HACCP requirements
- Outstanding ease of operation with product autolearn function and latest microprocessor technology
Specification:
Equipment shell material: A3 steel plate painting coated or #304 stainless steel plate
Total power
Power cable:3m international triangle plug
Working pressure
Environment temperature
Detection material temperature
Contact part with raw material: Nylon, carbon steel, stainless steel, Aluminum
Compressed air 8mm international standard pipes connection
Gas: 04.L/separator action
Total Weight
Detection precise: volume metal particle (normal metal),can adjust according to different situation
Action Time: 0.5S to 5 S, longer time the more waste discharge
Application:
- Designed for detecting all kinds of metals in food, pharmaceutical products such as quick-frozen food, dehydrated vegetables, meat, cooked food, sauce, seafood etc.
- Designed for detecting all kinds of metals in chemical, rubber, tobacco products etc.
- Designed for keeping equipment safe to avoid equipment broken by metals.
Tips:
- 12month labor and parts full life technical support
- Full machine takes of two layer package
- Prepackage takes of plastic bags conveyor the full machine and the key parts have foam plastic protection
- All package takes of Strong ploy wooden case that meet different country import standard Installation and use
- When you takes of the package .up the rubber base ,use wheel move it to your work place.
- Then running the machine few hours before use ,No need complex installation .
- The user guide will make in book and Videos for customer reference .
| Pipe Diameter | 25MM | 35MM | 50MM | 80MM |
| Detect Capacity | 200KG | 500KG | 800KG | 2000KG |
| Machine weight | 25KG | 35KG | 35KG | 35KG |
| Sensitivity | FE≥φ0.4mm SUS≥φ0.8mm CA≥φ0.8mm |
FE≥φ0.5mm SUS≥φ1.0mm CA≥φ1.0mm |
FE≥φ0.6mm SUS≥φ1.0mm CA≥φ1.0mm |
FE≥φ0.8mm SUS≥φ1.2mm CA≥φ1.2m |
| Machine dimension mm | 318X230X326 | 318X230X320 | 318X230X320 | 378X270X350 |
