High Precision Conveyor Belt Type Ss Metal Detector For Frozen Food Industry/Metal detector for food

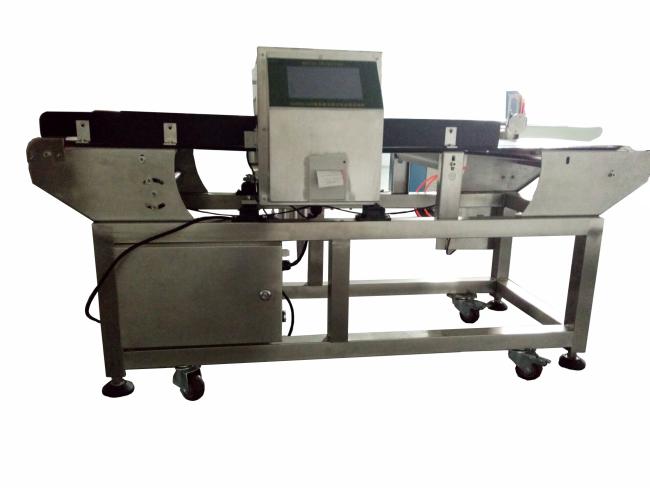

High Precision Conveyor Belt Type Ss Metal Detector For Frozen Food Industry
Food metal detector short introduce :
- Mechanism exported from Germany, Dual-channel metal detection system. Coil with a rectangular aperture (no points).
- Control system: ADLINE microprocessor controller.
- Conveyors: Joint-body PU (polyurethane) Conveyor.
- Combined with two-way signal detection circuit technology, liquid crystal display operations in English and visualization.
- Has the adjustment function of products effect, such as moist products, products including sugar or salt, they all can make the machine has the signal of metal, which is actually has no metal, so it gets wrong information from the products and affect the detection result. So use this machine with this function can reduce the products’ effect to get better detection result.
- With memory and learning function, can store 100 kinds of product testing parameters, detecting a wide range of materials.
- Completed by the digital signal processing circuit can detect all metal objects, adjusting the simple, stable and reliable.
- The combination of DSP and micro-controller data items on the test sample and treatment to improve detection.
- Special transport mechanism designed the max-Mize sensitivity of metal detectors.
- Flexible modular design can be customized according to different requirements.
- Mirror stainless steel with open transport system. Easy to clean .
- Meet the requirements of IFS and HACCP certification. There are a variety of options excluded institutions depending on the application.
- With superior shock interference.
Chain Conveyor metal detector Introduce
SHANAN Chain conveyor Metal Detection systems are available in a variety of aperture sizes and conveyor lengths to accommodate fresh and frozen products Like chicken / Meat / Fish / Seafood. The Metal Detection systems are available in a different range of speeds according to the production line,conveyor lengths can range from One meter upwards providing what as optimum adaptability to line configuration. When Metal detector senses metal contamination in a poultry or meat product, the product is rejected from the conveyor by a reject mechanism powered by an air cylinder. The rejected product exits the production flow at a 90-degree angle and lands in a stainless steel lockable reject bin for further QC Check.
Frozen Food Metal Detector is mainly used for detecting the metal chips inside the sea-food, fishery, noodle, frozen food, sugar, tea, pharmaceutical , food additive, condiment, health care products.
Application :
Food industry
Medical industry
Food additives
Baby products
Health products
Other industry that need reject and detect metals
Warranty
12month labor and parts
Full life technical support
Detail Specification:
| Model | SA-990 | ||||||||
| Machine specification | Normal machine | Customized width | |||||||
| (mm)Detection Width | 400 | 500 customized | |||||||
| (mm)Detection Height | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | |
| Detection Sensitivity | Fe(Φmm) | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 |
| Non-Fe(Φmm) | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | |
| 304Sus(Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 | |
| Alarm and rejector system | Automatic stop by alarm and sound or push rod or falling drop | ||||||||
| Machine structure | Full structure takes of stainless 304 | ||||||||
| Machine size (mm) | L1520mm×W830mm×H1000mm if customized it will according to customized size | ||||||||
| Machine weight | Around 250KG if customized the weight will different | ||||||||
| Voltage and power | 220V 50Hz 90W | ||||||||
| Load ability | 5-25KG conveyor belt running speed :25-30m/min or customized various | ||||||||
| Height from the earth | 750mm±50mm can customized | ||||||||
| Note :Normal size machine have stocks. Unnormal size machine have to customized | |||||||||
Company information:
we are a professional metal detector manufacturer.
we accept kinds of metal detector customized.
| Type | Model | application |
| Metal detector for food- |  |
Food(Including wet products-waterproof); plastic; chemical; industrial; pharmaceutica-The touch screen is networked, with printing and customizable language. |
| Metal detector for food- |  |
Food(Including wet products-waterproof); plastic; chemical; industrial; pharmaceutica |
|
Separator metal detector- SA-700 |
 |
Plastic; pellet raw materials; feed; recycled plastics; granular food; packaging industry; pharmaceutical; |
| Probe metal deteceor |  |
The quarry is a project, bunker, cement plant, slag treatment, rag recycling, building material recycling, coal-fired power station. |
| Weigher check |  |
Snacks, biscuits, cheese, vegetables, meat, clothing, etc., all the industry needs to measure weight. |
