90W Multi - Rejector Food Grade Metal Detector In Wooden , Log , Coal , Cement
Hot sale Industry Food Grade Metal Detector Used In Wooden / Log , Coal , Cement
Brief description:
VMS series metal detector are With extremely high detection sensitivity and anti-jamming ability, excellent performance, for the detection of the highly demanding food industry and other high demand product industry. Mainly for the detection of food, toys and plastics industries ,If you need a detector to detect the broken needles, wire, copper, lead, aluminum, tin, stainless steel and other metals that they are lost or mixed into raw materials or products, VMS series is your beat choice.
This VMS-4 adopted Digital signal processing: Every data is controlled by Microprocessor. Signal processing is fulfilled by the digital circuit which is easy for adjustment, stable and reliable. To stop mistaking in transmission & reception in advance, the detector handles many operations. Easy to adjust the detecting parameters. Detection signal shall be sent out when metal signal is detected, and then the elimination device shall eliminate the object with metal impurities or send out sound-light alarm stop signal.
It has the function of one-line signal display. When metal substance is passing through, the signal level indicator shall display different induction intensity according to the size of metal.
Technical Details :
- Auto-design suitable for connect various kinds of product line
- High Sensitivity to all metals Such as Iron Ferrous .Non-ferrous .Cooper .Aluminum and so on
- Multi-Functional Operation Interface
- Multi-Frequencies for option
- Advanced product auto-learn function
- Memory 12 or 100 different types of products
- Stainless Steel Structure meet HACCP requirement
- Simple and easy maintenance conveyor
- Optional Multi-Rejector System
- Heavy duty 3 phase motor can bear different kinds of heavy products

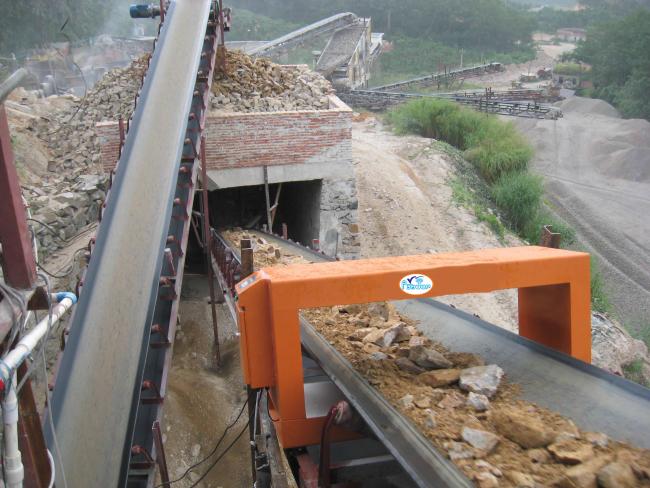

Application:
- Quarries,
- Lime works,
- Clinker works,
- Sand pits,
- Cement factories,
- Slag processing,
- Building material recycling,
- Brickworks,
- Coal-burning power stations.
Specification:
| Model | VMS-4 | ||||||||
| Machine specification | Normal machine | Customized width | |||||||
| (mm)Detection Width | 400 | 400 customized | |||||||
| (mm)Detection Height | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | |
| Detection Sensitivity | Fe(Φmm) | ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
| Non-Fe(Φmm) | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 | |
| 304Sus(Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 | |
| Alarm and rejector system | Alarm by sound and light.automatic control signal output | ||||||||
| Machine structure | Full structure takes of stainless 304 | ||||||||
| Machine weight | Around 100KG if customized the weight will different | ||||||||
| Voltage and power | 110V-220V 50Hz 90W | ||||||||
| Note :Normal size machine have stocks. Unnormal size machine have to customized | |||||||||
