500N ALX Screw Tester Sand Installed With Steel Gauge Or Digital Gauge

Clearly observe the displacement when testing ALX Screw Test Stand Installed with steel gauge or digital gauge

Function:

iqualitrol ALX Screw test stand are fit to the domestic and imported NK, NLB, ALB series point type of mechanical force gauge and HF series of digital mechanical force gauge, which are subject to the pull load and plug destructive force test, also can be installed with steel gauge or digital gauge. Users can clearly observe the displacement when testing.

Technical Specifications:

1. Maximum load:500N
2. Effective stroke:150 mm
3. Effective area of the test area:105×100 mm
4. Net weight: 9 kg

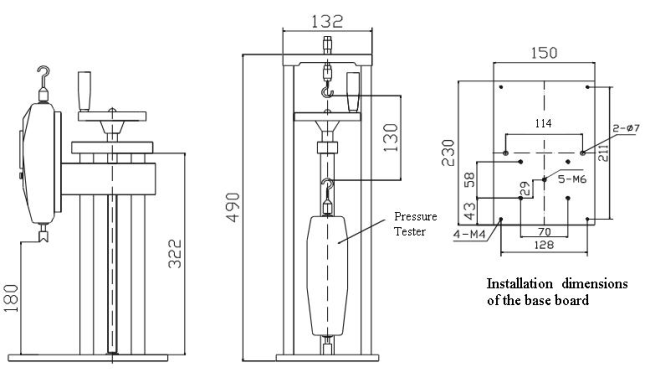

Structure Sketch:
