New Design 2 Seats Electric Utility Golf Cart With Rear Plastic Cargo Box

Price Negotiable

Price: USD 4400-5000 Per Unit

MOQ: 2 Units

Delivery Time: Within 15 working days after receiving your deposit

Brand: KERID

Product Description

New Design 2 Seats Club Car Electric Utility Golf Cart With Rear Plastic Cargo Box

Features Description

1.Advanced Disc Brake Technology
2.Global Special LED Headlight
3. Curtis Controller
4. Eletromagnetic Brake Makes Driving More Safty
5. 100% Waterproof accelerator

6.Comfortable seats

Specification

Loading Capacity	435KG(including cargo)
*LWH*	2610mm×1185mm×1830mm
Box Size	700mm×1100mm×200mm
Max. Range	80-100 km
Min. Clearance	110mm
Min. Braking Distance	≤3.0M
Min. Turning Radius	≤3.0M
Max. Grade Ability	30 %
Charging Time	6-8H
Max. Speed	25－30 km/h
Electrical System	Motor:the US imports KDS 48V 3.0KW high efficiency copper coil winding motor with speed sensor to accurately control the speed. Strong overload capability. High temperature resistance and low noise.
	Battery: 8V/Pcs*6, large capacity, deep recycle, lead acid batteries.
	Charger: computer intelligent automatic high-frequency, high-efficiency pulse type charger, input: 220V AC, 50HZ, output:48V DC 25A. Temperature compensation with battery temperature sensor for extended battery life.
	Controller: US imported Curtis controller with personalized programming, CMOS stepless shifting system. The speed of the car can be adjusted according to customer requirements. The controller has its own electromagnetic brake and downhill speed limit function.
	Accelerator: Hall-type contactless continuously variable transmission system
Chassis	Professional frame type high strength steel plate bending welded chassis. Sandblasting, zinc spraying, baking varnish triple rust-proof treatment.
Body Cover	High-strength impact-resistant composite body (PT+PBT alloy injection front cover) with super impact resistance
Rear Axle	High-efficiency gear transmission, differential speed ratio 12.31:1, maintenance-free.
Brake System	Mechanical drum brake
Front suspension system	Multi-piece leaf spring and hydraulic shock absorber system.
Rear suspension system	Multi-piece leaf spring and hydraulic shock absorber system.
Steering System	Single-stage rack and pinion steering system
Seating System	2 seats PU car seat, artificial leather sofa seat, comfortable ride.
Tire	Radial tire 18×8.5-8 vacuum tire
Dashboard	US Curtis electricity meter, ignition switch, direction selector switch, water cup position, storage bin.

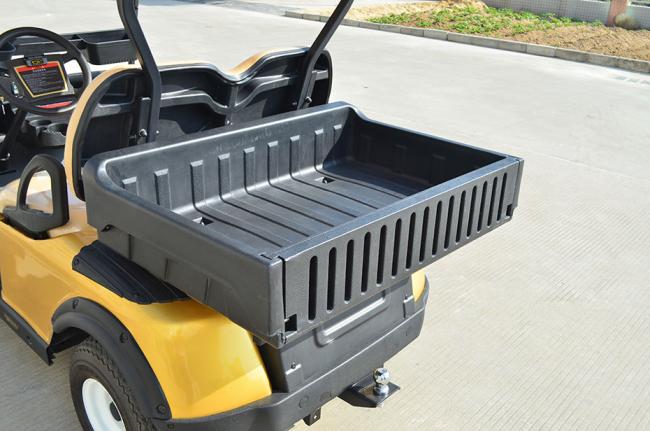

Cargo box	Vacuum rotomolding container(700mm×1100mm×200mm)
Color	Make a customization as per your requirements.
