11 persons Battery Operated Electric Shuttle Bus 7.5KW 72V Motor
Battery Operated Electric Shuttle Bus 7.5KW 72V Motor Electric Sightseeing Tour Car
Product Features
1.Attractive design and powerful in appearance, with strong carrying capacity and lower noise;
2.Standard feature: front and rear lights, rear view mirrors, electric horn, rustproof body structure;
3.Small turning radius, smart steering system;whole style steel rear axle;
4.Can bes easy modified to transportation vehicles;
5.CE certificate for whole carts;
7.Four wheels hydraulic braking system and independent parking brake.
Specification
Performance
| Passenger capacity | 11 seats |
| Max.Speed | 30km/h |
| Range(loaded) | 80-100km |
| Climbing Ability(loaded) | 0.15-0.30 |
| Braking Distance | ≤6m |
| Min.Turning Radius | 6m |
| Min.Clearance | 190mm |
| Recharge time | 8~10h |
Dimensions
| L×W×H | 4600×1500×2000mm |
| F/R Tread | 1200/1200mm |
| Axle Distance | 2930mm |
| Curb Weight | 1170kg |
| Max. loading | 800kg |
Standard Configurations
| Motor | 72V/7.5KW AC Motor |
| Controller | 72V/7.5KW Enpower controller |
| Body & Roof | High impact fiber glass |
| Batteries | Free-maintenance Batteries 6V*12 pcs |
| Windshield | See-through Laminated glass |
| Seats | Sponge + artificial leather |
| Rear view mirror | 2pcs |
| Tire | 155/70 R12 Radial tire (Auto tire) |
| Chassis | Welded tubular steel with rust-proof powder coated paint |
| Steering | Single reduction rack and pinion |
| Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber |
| Rear suspension | Leaf spring+shock absorber non-independent suspension |
| Lighting system | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights |
| Sound system | Radio and MP3 player; Speaker |
| Brake system | 4-wheel hydraulic drum brake system + handbrake |
| Charger | Automatic high efficiency pulse, Output:72V/25A, Input AC 220V/50HZ |
| Dashboard | Voltameter, ammeter, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button |

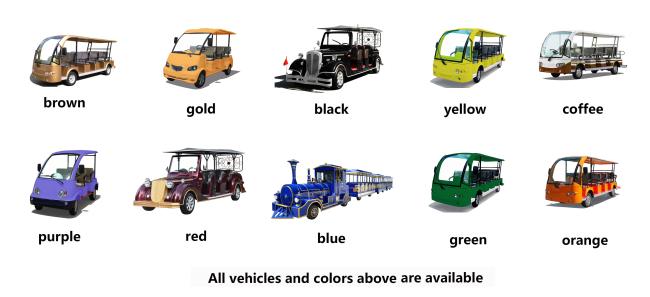

Optional Colors

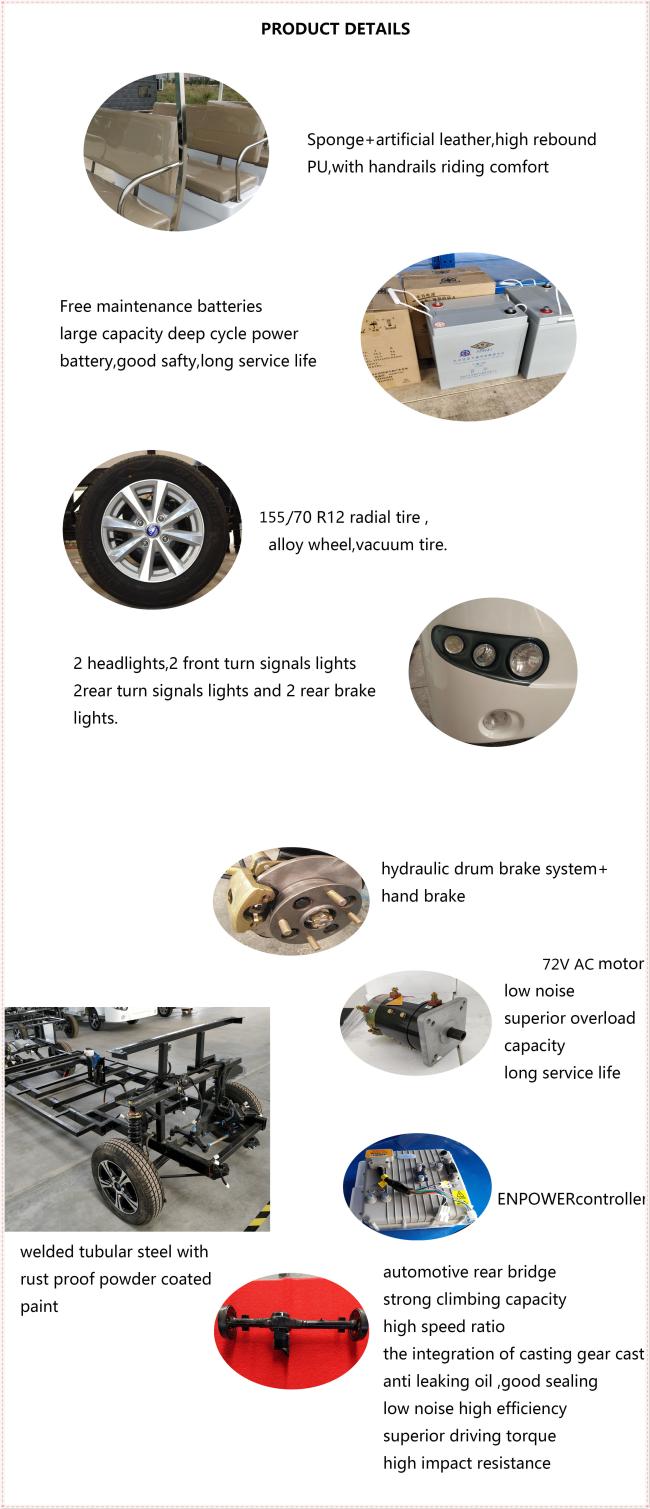

Detailed Images
Packing&Shipping
Factory
